AS 4671 Carbon Steel Welded Wire Mesh Screen , Reinforcing Wire Mesh For Concrete
US$ 18 - 25
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
xmesh
Place of Origin:
China
Model Number:
qijie
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
15 days
Related Products
-
Hot Dipped Galvanized Metal Wire Mesh , Fencing Welded Wire Cloth 0.9 X 30 M RollUS$ 18 - 22MOQ: 200 Pieces -
PVC Coated Welded Wire Mesh With 1.2 x 30 m RollUS$ 18 - 25MOQ: 100 Pieces
-
1/4" 19gauge Galvanized Hot Dipped Welded Wire Mesh With 1m x 20 m 20kgUS$ 18 - 22MOQ: 10 Pieces
-
4x4 Galvanized Stainless Steel Welded Wire Mesh for Animal EnclosureUS$ 18 - 25MOQ: 100 Pieces
-
5x5cm Hot Dipped Galvanized Hog Welded Wire Mesh Fence SheetsUS$ 18 - 25MOQ: 200 Pieces
Brand Name
xmesh
Place of Origin
China
Model Number
qijie
Material
Galvanized Iron Wire
Type
Welded Mesh
Application
Cages
Wire Gauge
5mm
Material
Galvanized Iron Wire
Aperture
100x100mm
Hole Shape
Square

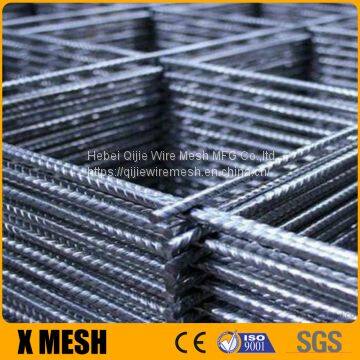

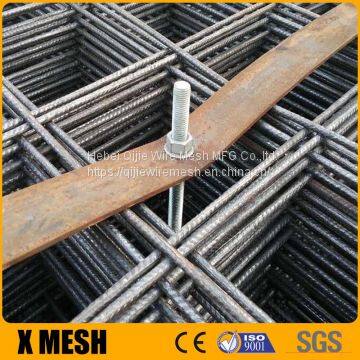

AS 4671 Reinforcing Mesh with carbon steel wire for construction

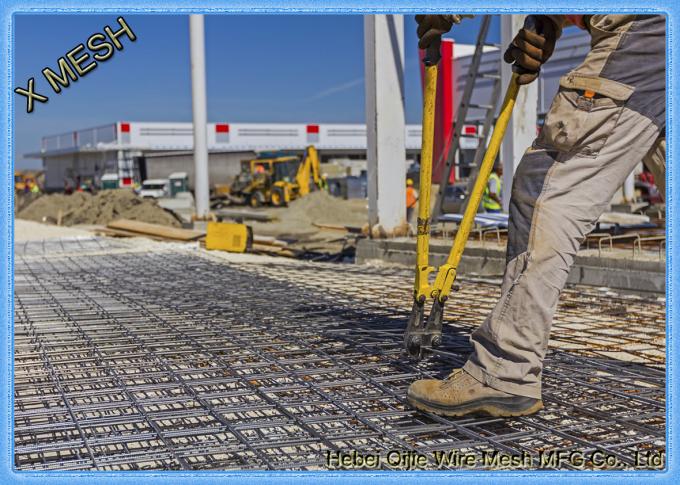

This general purpose mesh is used for reinforcing flat concrete elements such as floor slabs and walls.
Square mesh is manufactured from L grade ribbed wires (D500L) that are welded together with equal spacing in both directions to form square apertures.
We have square mesh available in sheets of two sizes: Full size mesh sheets are 6m x 2.4m with side lap wires to minimise the laps between sheets on large areas 4B2 Mesh® is the same high quality mesh but produced in a handy 2m x 4m sheet, perfect for smaller jobs like driveways or DIY.
| Tensile Strength | Yield Stength | Ratio | Elongation | Shear Force Average | Cold Bend |
| Rm≥550MPa | Rp0.2≥500MPa | Rm/Rp0.2≥1.03 | 25% | ≥0.5Rek.L•As | D=3d |
| Product: | ocold-rolled ribbed mesh ocold-drawn plain mesh ostainless steel mesh | ||||
| We confirm that,all test sample are from the same batch(grade,share,geometric,production process,delivery condition)and also passed the test conducted by our quality control department. | |||||
REBER & REO WIRE Product Designations
| AS/NZS 4671* Designation | Designation** | Yield Stress(MPa) | Ductility Class*** | Product Designation | Source Material Type | Size Range |
| D500N | N_ | 500 | N | Hot rolled deformed rebar | MICROALLOY(MA) CONTISTRETCH(CS) | N12-N40 straight stock lengths N10,N12,N16 off coil |
| R250N | R_ | 250 250 | N | Hot rolled round rebar | Mild Steel | R6,R10,R12 off coil R16-R28 straight stock lengths |
| D250N_**** | S_ | 250 | N | Hot rolled deformed rebar | Mild Steel | S12-straights |
| D500L_ | RW_ | 500 | L | Cold rolled ribbed wire | Mild Steel | RW5-RW12 off coil |
| R500L_ | W_ | 500 | L | Cold drawn round wire | Mild Steel | W4-W12 off coil |
*AS/NZS 4671: 2001 Steel reinforcing materials, D = Deformed, R = Round, N = Normal Ductility, L = Low Ductility **_indicates bar diameter(mm), N = Normal, R = Round, S = Structural, RW = Ribbed Wire, W = Wire *** Uniform Strain Limits N: Normal(≥5%) L: Low(≥1.5%) | ||||||
Square Mesh AS/NZS 4671- Class L
| Product Code | Std Unit | Longitudinal Wires | Cross Wires | Mass(kg) | Dimensions(m) |
| SL52 | sheet | 10×4.77@200+4×4@100 | 30×4.77@200 | 21 | 6×2.4 |
| SL62 | sheet | 10×6@200+4×4.77@100 | 30×6@200 | 33 | 6×2.4 |
| SL72 | sheet | 10×6.75@200+4×4@100 | 30×6.75@200 | 41 | 6×2.4 |
| SL81 | sheet | 25×7.6@100 | 60×7.6@200 | 105 | 6×2.4 |
| SL82 | sheet | 10×7.6@200+4×5.37@100 | 30×7.6@200 | 52 | 6×2.4 |
| SL92 | sheet | 10×8.6@200+4×6@100 | 30×8.6@200 | 66 | 6×2.4 |
| SL102 | sheet | 10×9.5@200+4×6.75@100 | 30×9.5@200 | 80 | 6×2.4 |
| ×Diameter (mm) × Spacing (mm) | |||||
Rectangular Mesh AS/NZS 4671 - Class L
| Product Code | Std Unit | Longitudinal Wires | Cross Wires | Mass(kg) | Dimensions(m) |
| RL718 | sheet | 25×6.75@100 | 30×7.6@200 | 67 | 6×2.4 |
| RL818 | sheet | 25×7.6@100 | 30×7.6@200 | 79 | 6×2.4 |
| RL918 | sheet | 25×8.6@100 | 30×7.6@200 | 93 | 6×2.4 |
| RL1018 | sheet | 25×9.5@100 | 30×7.6@200 | 109 | 6×2.4 |
| RL1118 | sheet | 25×10.7@100 | 30×7.6@200 | 130 | 6×2.4 |
| RL1218 | sheet | 25×11.9@100 | 30×7.6@200 | 157 | 6×2.4 |
