Description vortex flowmeter
Vortex flowmeter is based on Karman vortex principle research and production, mainly for industrial pipeline fluid flow measurement, such as gas, liquid, vapor and other media. It is characterized by small pressure loss, large measuring range and high accuracy. It is hardly affected by parameters such as fluid density, pressure, temperature, viscosity and so on. No moving mechanical parts, high reliability, low maintenance. Instrument parameters can be long-term stability. Vortex flowmeter using piezoelectric stress sensor, high reliability, in -20 ℃ ~ +250 ℃ working temperature range. There are analog standard signal, there are digital pulse signal output, easy to use with the computer and other digital systems, is a more advanced and ideal measurement instruments.

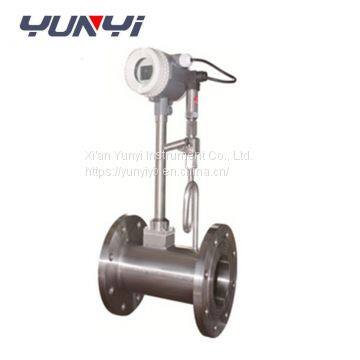

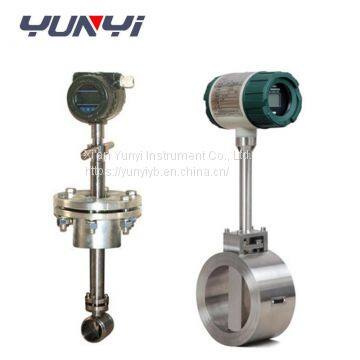

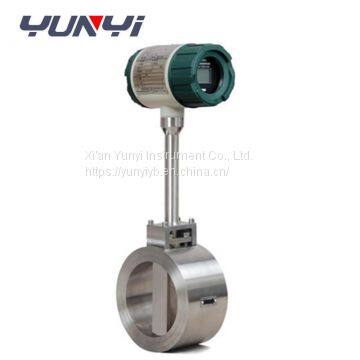

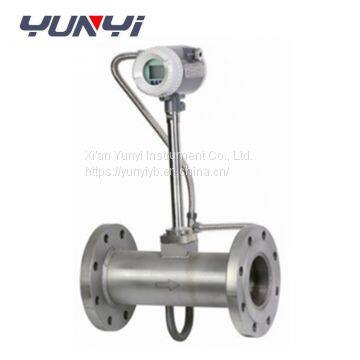

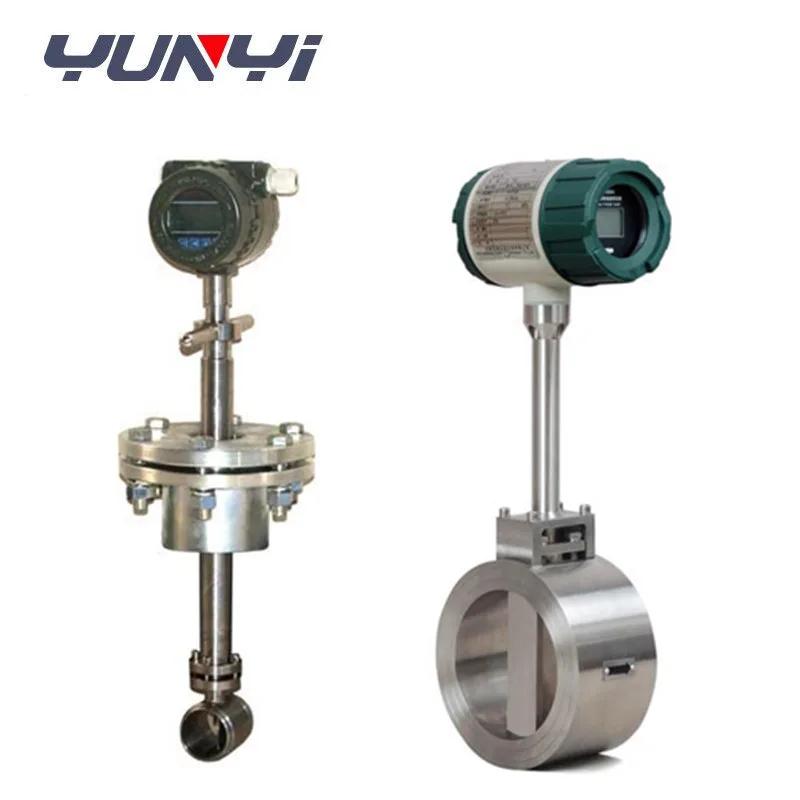

Detailed Images vortex flowmeter
Specification vortex flowmeter
Nominal diameter(mm) | 25,40,50,65,80,100,125,150,200,250,300,(300~1000 Insert type) |
Nominal pressure (MPa) | DN25-DN200 4.0(>4.0 Supply agreement),DN250-DN300 1.6(>1.6 Supply agreement) |
Medium temperature (C) | Piezoelectric type:-40~260,-40~320;Capacitance type : -40~300, -40~400,-40~450(Supply agreement) |
Body material | 1Cr18Ni9Ti,(Other materials supply agreement) |
Allowable vibration acceleration | Piezoelectric type:0.2g Capacitance type:1.0~2.0g |
Accuracy | ±1%R,±1.5%R,±1FS;Insert type:±2.5%R,±2.5%FS |
Range of | 1:6~1:30 |
Power supply voltage | Sensor:+12V DC,+24V DC;Transmitter:+12V DC ,+24V DC;Battery type:3.6V Battery |
Output signal | Square wave pulse ( not including the battery power supply type ): high level or low level5V,1V; current: 4~ 20mA |
Pressure loss coefficient | In line with the JB / T9249standard Cd = 2.4 |
Explosion proof marks | Intrinsic safety type: Exd IA CT2-T5 flameproof type: Exd CT2-T5 |
Protection grade | The ordinary IP65 diving type IP68 |
Environmental conditions | Temperature - 20~ 55,5% ~ 90% of relative humidity, atmospheric pressure is 86 ~ 106kPa |
Applicable medium | Gas, liquid, steam |
Transmission distance | Three wire system pulse output type: <300m, two line standard current output type (4 ~ 20mA ): load resistance less than 750ohm |
Features vortex flowmeter
1, the body temperature and pressure compensation at the same time integrated compensation function, the standard volume flow measurement of fluid or standard mass flow.
2, all intelligent, digital circuit design, can automatically compensate for the measured fluid density or standard volume calculation.
3, a new digital filtering and correction of the flow measurement more accurate and reliable.
4, battery-powered without external power supply can work continuously for more than two years.
5, a new lattice LCD characters, the use of more convenient operation.
Applications
Vortex flowmeter is mainly used for industrial pipeline fluid flow measurement, such as gas, liquid, vapor and other media

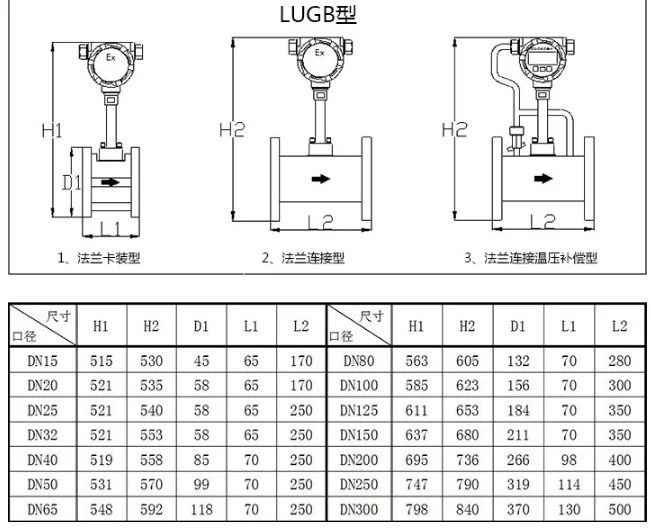

Selection Guide vortex flowmeter
Company Information vortex flowmeter
