Electronic horizontal tension testing machine

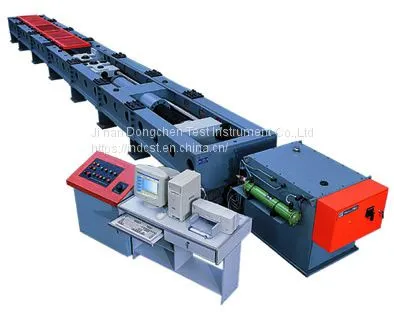

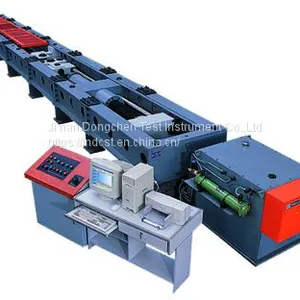

Dwl-500w microcomputer controlled electronic horizontal tension testing machine.

Technical proposal

I. product performance characteristics and introduction:

Dwl-500w microcomputer controlled electronic horizontal tensile testing machine is manufactured according to GB/ t2611-2007 "general technical requirements of testing machine" and GB/ t1641-2008 "electronic universal testing machine". Applicable standard: national standard, ASTM, etc. The machine has beautiful appearance, convenient operation and reliable performance.

Dong Chen test factory production of microcomputer control electronic horizontal tensile testing machine combined with foreign advanced control technology, elegant appearance design, high efficiency of transmission system constitute a high-performance host, control system adopts the world popular high-speed parallel bus PCI2.2 standard design, using the BB company amplifier, high-speed AD company AD converter and CPLD data acquisition system of high precision load sensor measuring system. Software adoption of the world's more popular C.NET advanced language writing upgrade is simple and fast.

Professional software testing machine which can realize the yield strength (Fe), tensile strength (Rm) data and indicators, such as computer control system to the test process control and data processing in accordance with corresponding metal materials and nonmetal materials the requirements of national standard, test report variety such as WORD, for the way.

The machine is suitable for testing the mechanical properties of all kinds of metals, non-metal and composite materials. This machine is widely used in building materials, aerospace, machinery manufacturing, wire and cable, rubber, plastic, automobile manufacture industries such as materials, the damping system test analysis, is a scientific research institutions, universities and colleges, industrial and mining enterprises, technical supervision, commodity inspection, arbitration and other departments of the ideal test equipment.

Ii. Standards:

Meet the requirements of GB/T228.1-2010 metal materials room temperature tensile test method, GB/ t7314-1987 metal compression test method. GB/T20509-2006 "electric locomotive contact materials in copper and copper alloy wire billet", GB/T4909-2009 test method for the naked wire tension test ", the European committee for electrotechnical standards drafting PrEN50149:2009 "rail infrastructure - fixtures - electric traction - grooved copper and copper alloy contact wire, GB/T1179-1999 round wire concentric gallows empty conductor, TB/T2809-2005 with the electrified railway, copper and copper alloy contact wire"

And the various tensile test standards of the wire and cable industry. And meet: pin insulator, butterfly insulator, suspension insulator, porcelain crossarm, rod insulator tension test and tension insulator fittings requirement and hoisting belt and rope tensile deformation and elongation of the test.

Iii. Key description:

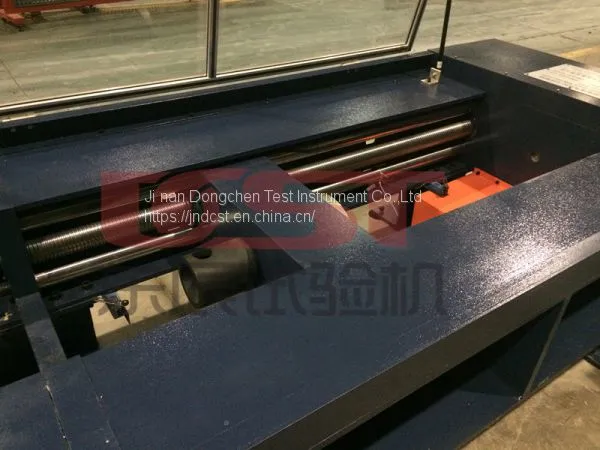

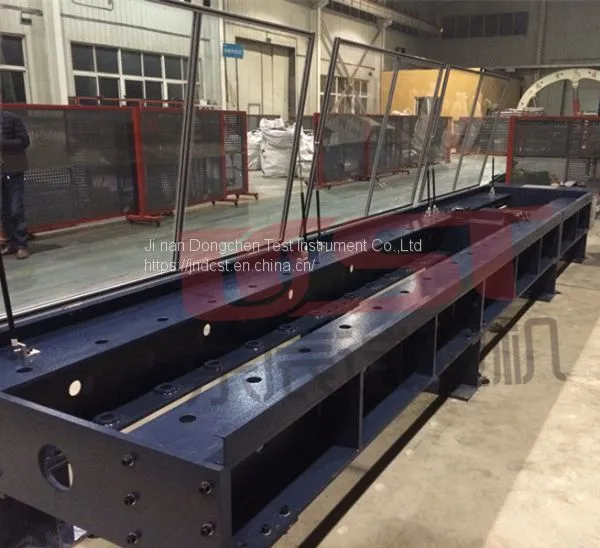

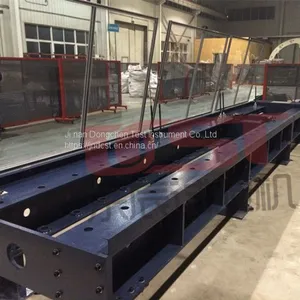

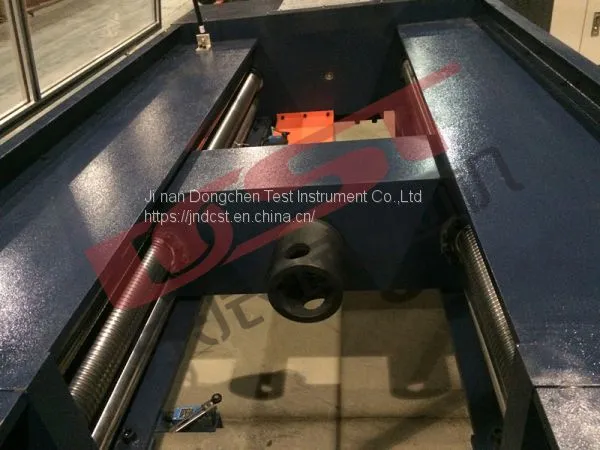

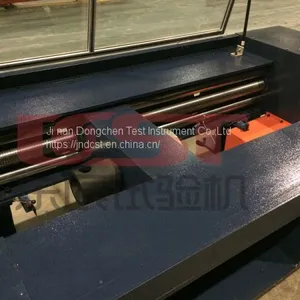

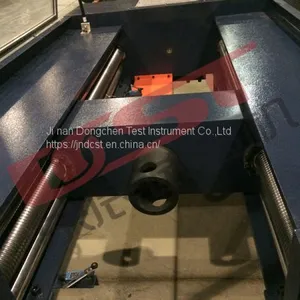

1 host: the machine adopts horizontal structure, the transmission part adopts the circular arc synchronous toothed belt, the screw side drive, the transmission is stable, the noise is low. The specially designed synchronous toothed belt deceleration system and precision ball screw pair drive the moving beam movement of the testing machine, realizing the no-gap transmission.

Supported by:

Make the sample according to the user.
