Best Quality High Temperature Sensor Melt Pressure Sensor Transmitter

Xi'an Shelok Instrument Technology Co.,Ltd.
Best Quality High Temperature Sensor Melt Pressure Sensor Transmitter thumbnail-1
Best Quality High Temperature Sensor Melt Pressure Sensor Transmitter thumbnail-2
Best Quality High Temperature Sensor Melt Pressure Sensor Transmitter thumbnail-3
Best Quality High Temperature Sensor Melt Pressure Sensor Transmitter photo-1

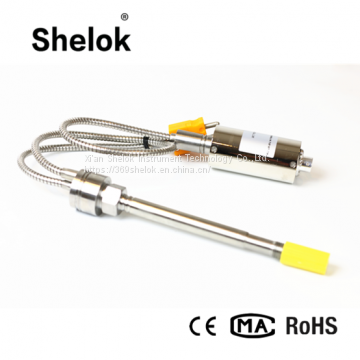

Best Quality High Temperature Sensor Melt Pressure Sensor Transmitter photo-2

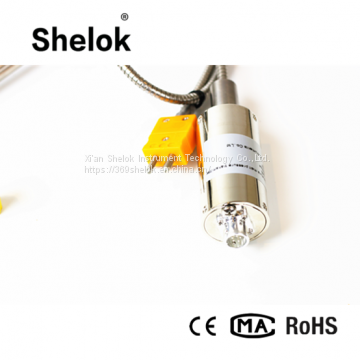

Best Quality High Temperature Sensor Melt Pressure Sensor Transmitter photo-3
US$ 185 - 220 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Shelok
Place of Origin:
China
Model Number:
SKL-HTP124B
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Shelok
Place of Origin China
Model Number SKL-HTP124B

Product Description

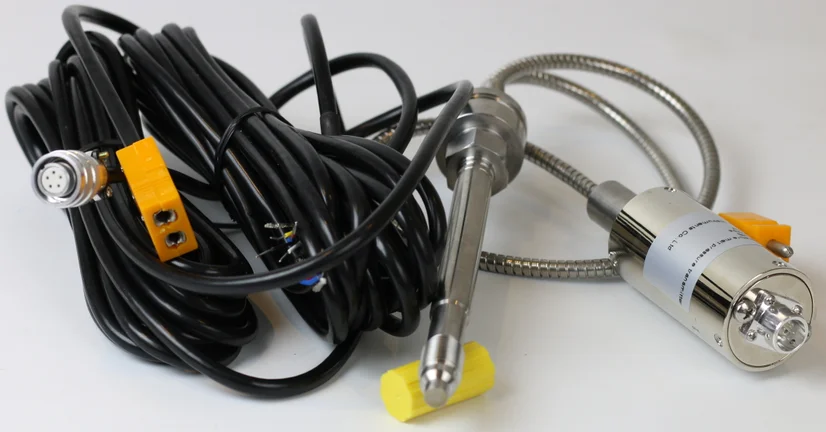

Best quality high temperature sensor melt pressure sensor transmitter

Best quality high temperature sensor melt pressure sensor transmitterBest quality high temperature sensor melt pressure sensor transmitter

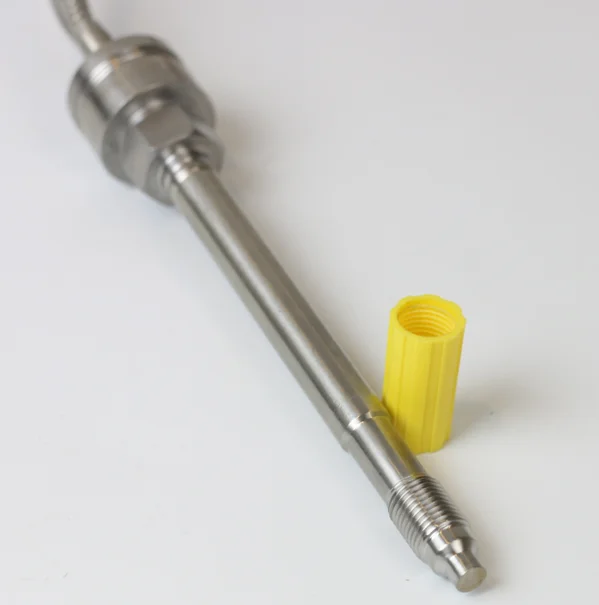

Rigid rod and hose isolation, isolation diaphragm structure, medium temperature below 450 ℃, with good stability and accuracy;
Product Detail
ItemHigh temperature melt pressure transmitter
Pressure range0....10Mpa to 0....150MPa (0...1500psi to 0...20000psi)
Output3.33mV/V; 2mV/V
Accuracy±0.5%FS
Excitation10VDC
Repeatability±0.2%
Diaphragm material15-5PH
Bridge resistance350 ohms±10%
Overload pressure1.5%FSO
Warranty12 months
Product Keywordshigh temperature transmitter,high temperature sensor transmitter,melt pressure transducer
Features:

Characteristics and Applications

stability and accuracy; used in rubber, plastics, chemical fiber polyester nylon, polyester, and other mechanical equipment of high-temperature steam fluid / gmedia pressure measurement and control. melt pressure Transmitters

Application

 Chemical fiber Equipment

 Plastic and Rubber manufacturing equipment

 Medicine & Food process equipment ,

 Drinking water environmental monitoring occasion

 Other pressure measurement and Control

The main technical parameters

Range: 0 ~ 1-300MPa

Overall accuracy: 0.25% FS; 0.5% FS

Output: 2.0mV / V; 4 ~ 20mA; 0 ~ 5V; 1 ~ 5V; 0 ~ 10V

Calibration signal: 80% FS calibration; zero and span adjustment

Working temperature: -10 ~ 450 ℃

Supply voltage: Sensor: 10VDC (6-12VDC) transmitter: 24VDC (9 ~ 36 V)

Long-term stability: 0.1% FS / year

Insulation resistance: more than 2000MΩ 100VDC

Vibration: 20HZ-1KHZ to mechanical vibration, the output changes less than 0.1% FS

Sealing class: IP65

Signal leads: five-pin connector 5pin

Structural dimensions: long straight bar 152mm, hose length: 470mm

Threaded connection: M14X1.5 (Universal); M16X1.5; M18X1.5; M20X1.5; M22X1.5 (Universal) Other threads can design melt pressure transmitter







Related Products
Best quality high temperature sensor melt pressure sensor transmitter
Best quality high temperature sensor melt pressure sensor transmitter

Company Information
Best quality high temperature sensor melt pressure sensor transmitter
about us

Established with 10 million capital in 2015, Xi'an Shelok Technology Instrument Co., Ltd. is a professional designer and manufacturer that engaged in the fields of pressure measurement instruments. We specializing in developing high precision pressure transmitter, pressure gauges, pressure calibration pump and dead weight tester,level transmitter, flow meter etc., widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.

VIEW MORE>>
Packaging & Shipping
PACKAGE:

Standard export carton packing.

DELIVERY TIME:

3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

Best quality high temperature sensor melt pressure sensor transmitter
FAQ
Q  How long will you reply me? Can I get some samples?
A  We will contact you as soon as possible but within 12 hours./ Yes,   Sample order is available for quality check and market test .  But you have to pay the express cost.
Q     How soon can you arrange your production?What's delivery    time?
A  Once getting your product confirmation and receiving the prepayment, the production will be started immediately./ It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q  How do you control your quality ?Could I visit your factory?
A TT Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage  factors)./ Very welcome! Fly to Xian Yang air port.   It was a big pleasure for us.
Best quality high temperature sensor melt pressure sensor transmitter

Q  What's your warranty terms?can you provide O E M & Customized service?
A  We offer 12 months warranty time./Y es, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Contact us



If you need to know more about the pressure measuring instrument /pressure senor/pressure transmitter/pressure gauge Pls contact me without hesitate.



Contact:Lay

Skype:Lay Chen19930417

Whatsapp:+8618772316213

Alichat: cn1520949964dzva

We chat:3330280788








Product Tags: high temperature sensor , melt pressure sensor , melt pressure transmitter
