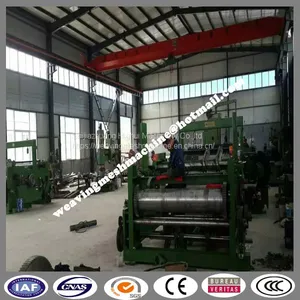

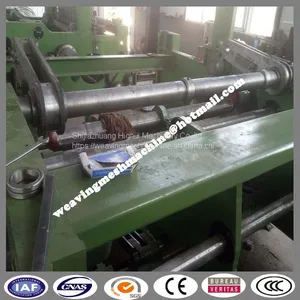

Shuttleless loom wire mesh machine ( manufacturer)
USD $10000 - $30000
/ Set
1 Set(Min.Order)
- 10 Set / Sets per Month
- Tianjin ,china
- T/T
- 45 days
You May Like
-
10-60 mesh upto 0.6mm Shuttleless Wire Mesh Weaving Machine
-
new type Wire mesh weaving loom machine
-
Double beat stainless steel wire mesh weaving machine
-
2-40 mesh Shuttleless Wire Mesh Weaving Machine
-
China stainless steel dutch mesh weaving machine
-
10meshx1.1mm stainless steel Mesh Strong weaving machine with Good Price
Product Details
| Brand Name: | shijiazhuang highui | Place of Origin: | China | Model Number: | China CNC shuttleless machine |
| After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Product Description
Shuttleless loom wire mesh machine ( manufacturer)
Good Strength Machine weave Good Faltten Surface + Even Square Hole Mesh
Send us your inquiry with below information:
1. Mesh:?
2. Mesh wire diameter:?
3. Mesh roll width?
4. How many sets you need?
With your mesh which you want to produce, we will offer you right machine
| Model | Width MM | Opening density (Mesh) | Wire diameter(mm) | Rotating speed of crank shaft (r/minute) | Motor power(KW) | Weight(T) | Outside size(mm) |
| ZWJ1300B | 1300 | 60-350 | 0.01-0.14 | 72 | 2.2KW380V,50HZ | 3.25 | 2650x2900x1300 |
| ZWJ1300D | 1300 | 16-120 | 0.14-0.30 | 72 | 2.2KW380V,50HZ | 3.25 | 2650x2900x1300 |
| ZWJ1600B | 1600 | 60-350 | 0.01-0.14 | 72 | 2.2KW380V,50HZ | 3.25 | 2650x2900x1300 |
| ZWJ1600D | 1600 | 16-120 | 0.14-0.30 | 72 | 2.2KW380V,50HZ | 3.25 | 2650x2900x1300 |
| ZZWJ-1300/1600 Heavy machine | 1300/1600 | 2-16 | 0.1-0.55 | 35 | 5.5KW380V,50HZ | 8-16 | 3500x4200x2500 |
| ZZWJ-1300/1600 BIG Heavy machine | 1300/1600 | 2-20 | 0.5-1.6 | 35 | 5.5KW380V,50HZ | 8-16 | 3500x4200x2500 |
| Above is just as your reference tell us the mesh, wire diameter, width which you frequently weave in whole year We will make the machine based on this, then it will save you cost: machine purchasing cost, material weaving waste cost, power consumption cost | |||||||
| For the Mesh width you weave , we not only do 1300 /1600, we also can do 1000, 2000, 3000, 4000, it is based on your request | |||||||
| Different country, the power pressure is different, like India–415V or 440-220 V So this is adjustable by your country’s need | |||||||
| What we focus on is detailed and real request, then it will be helpful for us to give our best valued suggestion | |||||||
