Electric lifting 50L vacuum rotary evaporator for distillation

FOB Price

USD $1500 - $5106 / Set

1 Set(Min.Order)

Supply Ability 5000 Set / Sets per Month
Port QINGDAO
Payment Terms:T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
Delivery Detail:7 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	NANBEI	Place of Origin:	China	Model Number:	NBRE-5000
Certification:	CE ISO	After-sales Service Provided:	Engineers available to service machinery overseas	Warranty:	1 year
Weight:	115KG	Dimension(LWH):	14006002250mm	Condition:	New
Voltage:	380V/50HZ	Application:	Distillation	Power(W):	8KW
Power Source:	Electric	Process:	Other, rotary evaporator

Product Description

Electric lifting 50L vacuum rotary evaporator for distillation

1.Feature and Description
• Stainless steel and aluminum alloy for bracket.
• All glass components are borosilicate glass (GG-17).
• Imported fluorine rubber and Teflon two-way combination seal.
• Anti-vibration vacuum gauges show real-time vacuum.
• Upright three-layer serpentine coil condenser.
• Continuous feeding.
• Collecting bottles has lean discharge port.
• Latest integrated hand wheel valve, sealing is good.
• Micro power switch.
• LCD display temperature and speed.
• Brushless DC motor.
• Electric lifting bath.
• High-quality 304 stainless steel bath.
• Over-temperature protection function.
• Anti-dry function.
• Sudden power down protection funcation.

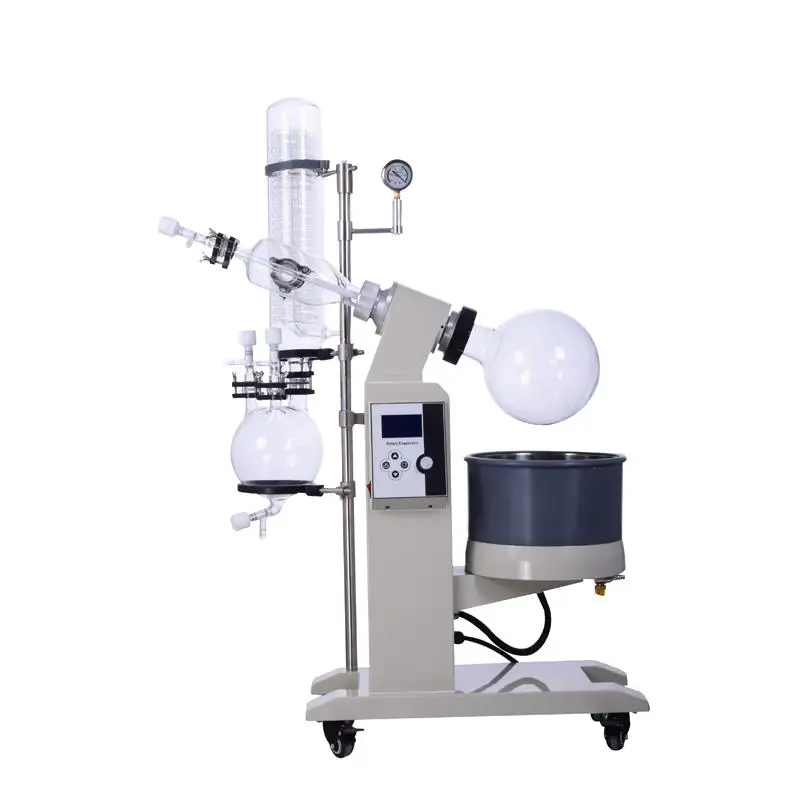

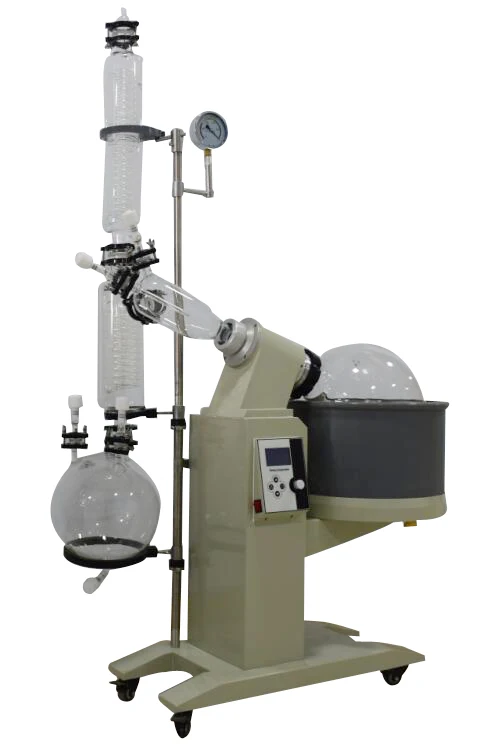

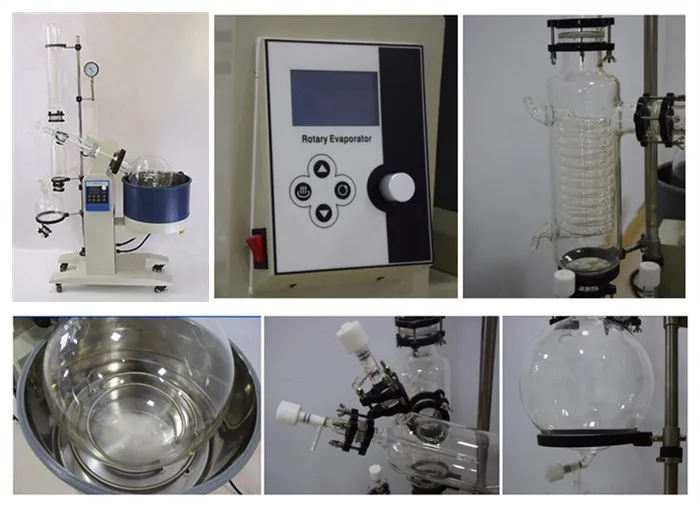

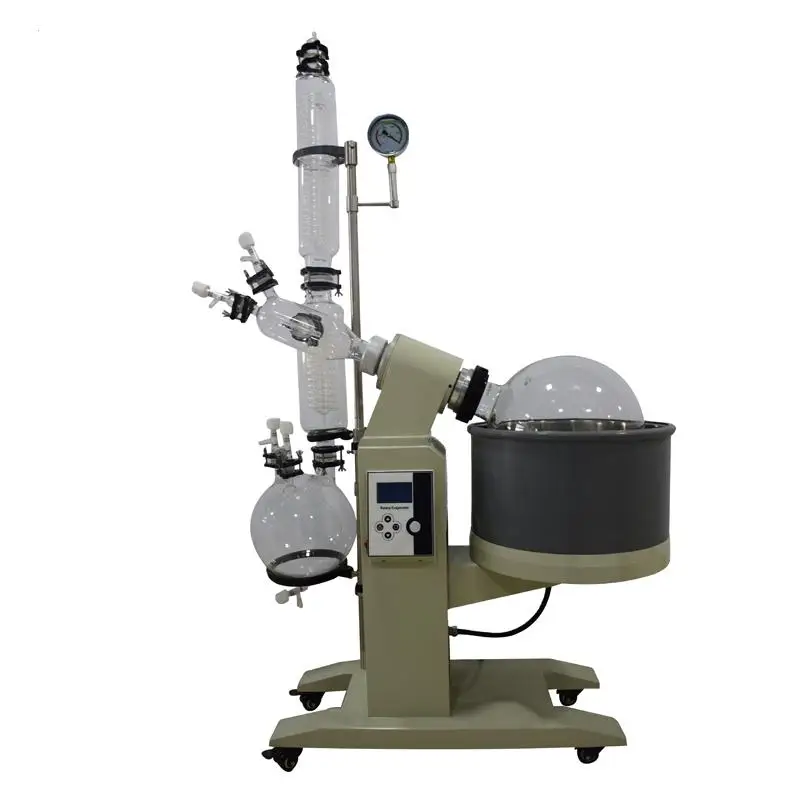

2.Picture for our product

3.Usage and Application

Rotary evaporator is the necessary basic instrument for chemical industry, medicine industry, institutions of higher learning and scientific research laboratory and other units, it is the main means for manufacturing and analyzing experiments when they do extraction and concentration .

4.Technical data

Model	NBRE-5000
Rotating motor power	100W
Lifting motor power	60W
Heating power	8kw
Rotating flask	50L Flange mouth:Φ470mm/Φ125mm
collecting flask	20L Flange mouth:Φ355mm/Φ60mm
Vacuum degree	0.098Mpa
Rotary speed	0-120rpm/min
Heating temp.	0-400C
Temp controlling accuracy	±1C
Glass temp range	-80C to 250C
Condenser size	MainΦ160840H(mm) DeputyΦ160480H(mm)
Feed valve	Φ35 flange mouth
Release valve	Φ35 flange mouth*2pcs
Didcharge valve	15mm glass and lean discharge port
Bath size/volume	Φ550*320H(mm) about76L
Lifting stroke	0-180mm
Voltage	380V 50Hz (various power supply and plug can be customized)
Gross weight	118kg
Packing size	12706201440mm(LWH) about 1.133m3

5.Packing and Shipping

Wooden box

6.Other capacity of electric lifting vacuum rotary evaporator

20L electric lifting rotary evaporator	10L electric lifting rotary evaporator

5L electric lifting rotary evaporator	2L electric lifting rotary evaporator

7. Manual lifting vacuum rotary evaporator

10L 20L 30L 50L manual lifting vacuum rotary evaporator	1L 2L 3L 5L manual lifting vacuum rotary evaporator

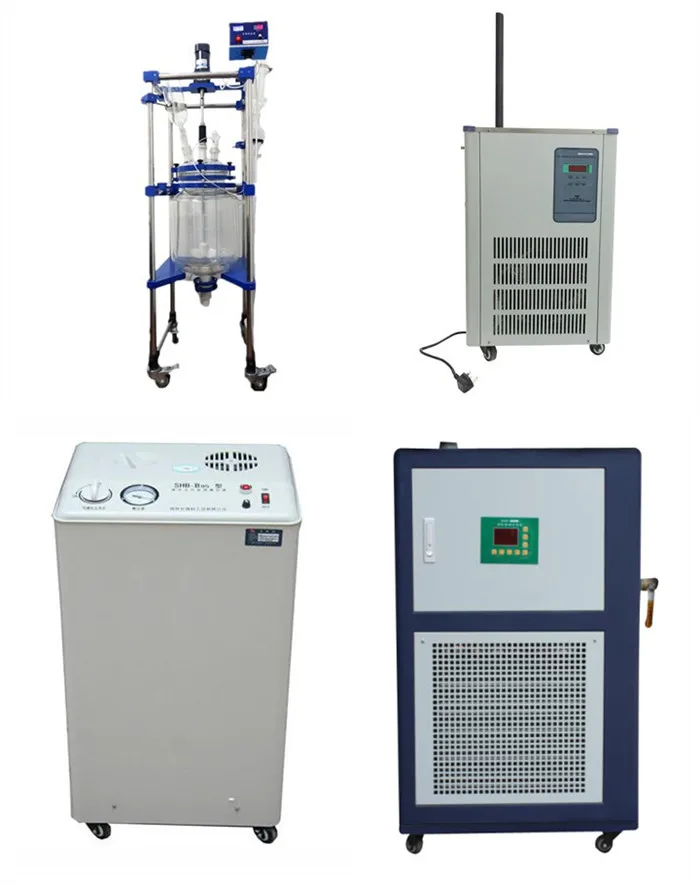

8 Related Products

Glass reactor	Low temperature cooling liquid circulating pump

Water circulating pump	High and low temperature pump
