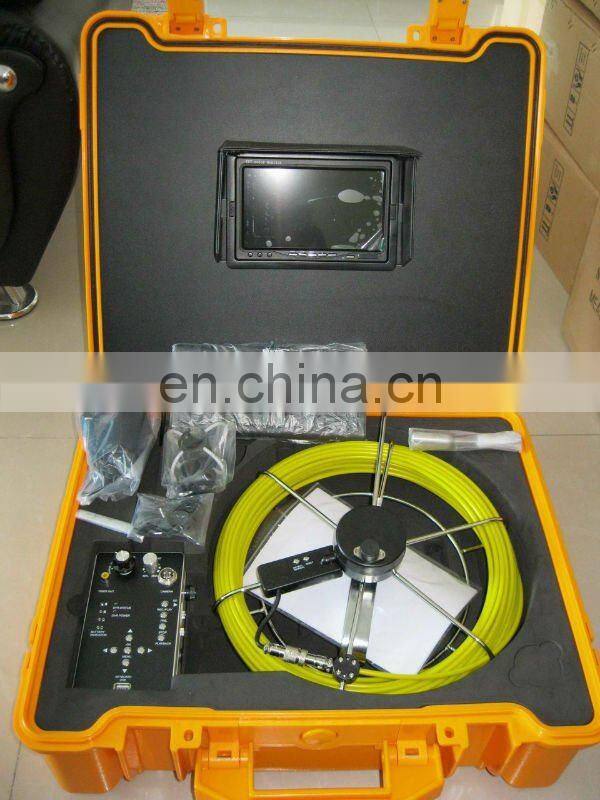

Waterproof 23mm Sewer Pipe Inspetion Camera TEC-Z710DK With Keyboard,DVR

Specification

camera

1. camera size: 23mmx120mm   front size:45mm

2.Camera case material: stainless steel house stainless steel 304

3. Camera glass material: sapphir glass

4. sensor size: 1/4 inch

5.Total Pixels: PAL: 720X576    NTSC: 720X480

6. view angle: 120°

7. camera light: 12PCS white LEDS

8. Special gold point touch connector

9. waterproof: IP68

10.camerawork current: 100MA      camara power supply:DC 12V

11. LEDS ADJUASTABLE

12.Work temperature: -10°C-50°C

monitor

1. monitor size:  7inch  TFT color monitor

2. monitor Total Pixels: 1440X234

3. monitor power supply: DC 12V

4. osd language:  english

5. up, down  left, right adjustable

6. 16:9  4: 3 model

7. sunshade includ

8. waterproof connector

9. Work temperature: -10°C-50°C

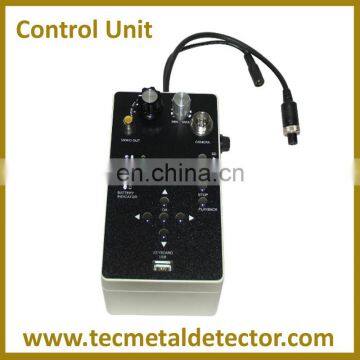

DVR

1. DVR power supply:  12V

2. DVR work current:  200MA

3. storage medium: SD card (max 32G)

4. dagital clock and dagital calendar

5. DVR Total Pixels:  720X576   (D1)

6. picture snap and movie record

7. movie format: AVI

8. audio record (yes)

9. double earphone output

Audio input unit

1. micphone

2. clip type

Video text input

1. language: englsih

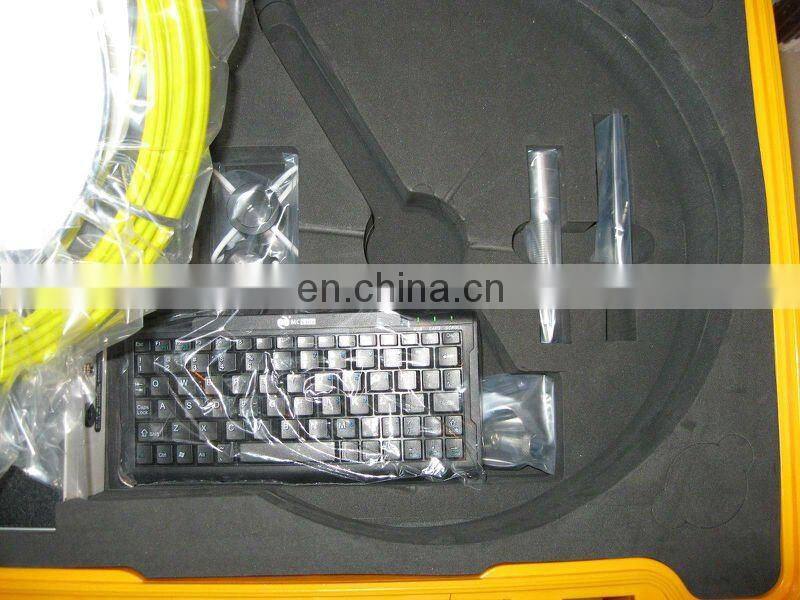

2. keyboard interface 1   PS2keyboard

3. keyboard interface 2   USB keyboard(need USB to PS2 connector)

4. text on video(PAL and NTSC)

5. edit line: PAL  28 letter 15 line    NTSC  26 letter  12 line

6. max edit page: 4 page

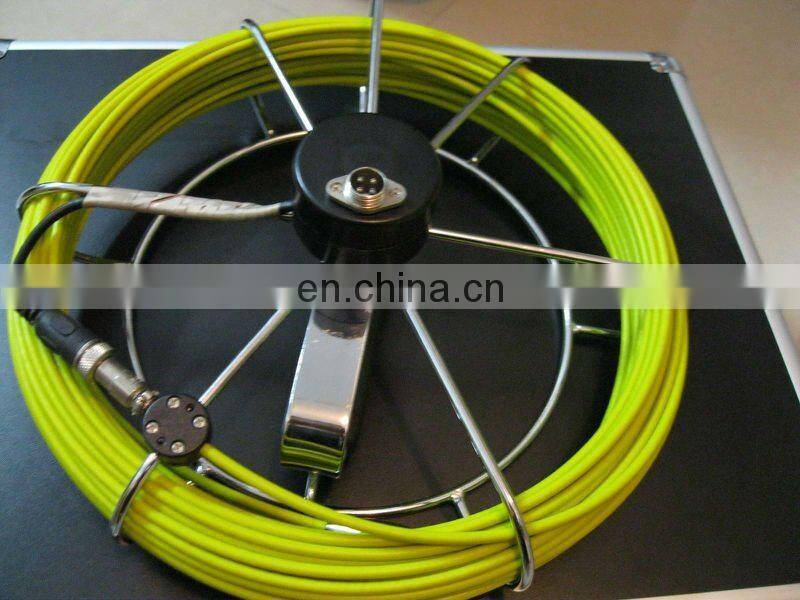

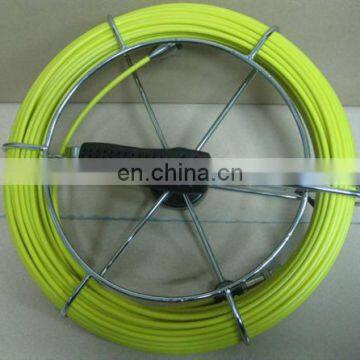

Cable wheel

Cable size: 320MM(diameter)X110(h)

Wire material: fiberglass rod

Fiberglass length: 20M( standard)

Fiberglass diameter: 4.8MM

Fiberglass color: yellow

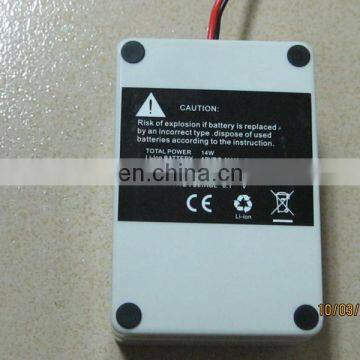

battery

Battey pype:  12V 4000MAH     rechargable li –ion battery(18650)

Used time :   7  hours

charger

Input: AC90-260V        output: DC 12V    1000MA

Output cable length: 1.5M

DC plug diameter : 2.1MM

box

box material: fire protection

Box size: 48cm x 39cm x 19.5cm

SKIDS size

1. SKIDS1:  Φ40MM

2. SKIDS2: Φ80MM

Weight and cartoon size

net weight:  7.5KG

gross weight:  8.5KG

Single package size

Double package size
