Calibration of Pressure Gauge by Dead Weight Tester KY Series

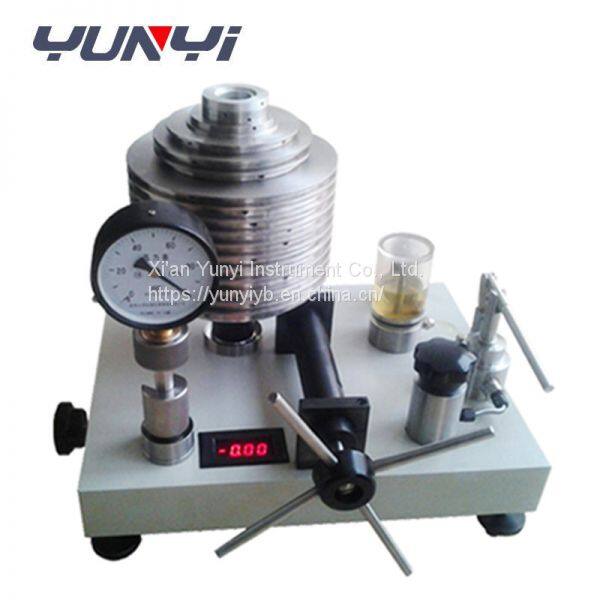

Calibration of Pressure Gauge by Dead Weight Tester KY Series photo-1
US$ 1690 - 2700 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
yunyi
Place of Origin:
China
Model Number:
KY
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
10 days
Brand Name yunyi
Place of Origin China
Model Number KY
Power Hydraulic
Usage Balancing Machine

KY dead weight tester for sale pressure gauge calibration

pressure gauge calibration machine calibration weights JY deadweight tester

Description KY dead weight pressure gauge tester pressure calibrator

KY series piston gauge is our new R & D product manufactured

according to the latest national "piston gauge" test procedures

(JJG59-2007). The key components of piston gauge uses a

tungsten carbide material with a high hardness and low

temperature coefficient of linear expansion, which improving the

wear resistance of the piston,therefore only a little (negligible

)deformation under the pressure,performance is extremely stable.

Working medium with a piston isooctyl sebacate,

so pressure gauge with high sensitivity.

As a result of new materials, new technologies, new processes,the

technical indicators of new piston gauge has been greatly

improved. Thus widely used to test digital pressure gauge,

precision pressure gauges, pressure transmitters, pressure sensors

and other pressure instruments.

Detailed Images KY dead weight pressure gauge tester pressure calibrator





Specification KY dead weight pressure gauge tester pressure calibrator


Modelnumber  Range (MPa)        Accuracy

KY-0.6      0.04~0.6          ±0.05%  0.02%

KY-6        0.1~6

KY-25       0.5~25

KY-60       1~60

KY-100      2~100

KY-160      2~160

KY-250      5~250

KY-300      5~300




Features KY dead weight pressure gauge tester pressure calibrator

Pressure Calibration pump piston Deadweight tester
1. The piston and cylinder are made of high strength, high stiffness, and low temperature coefficient of linear expansion of the carbide grinding tungsten carbide material ,  with a  wide range of ambient temperature , stable performance 20 ± 5 ℃.
2. The load center of gravity low, weight by Cradle applied directly to the piston, the piston smooth operation, the pressure fluctuation is extremely small, accurate indication.
3. When pressure more than 25MPa ,the medium uses a small viscosity isooctyl sebacate, thus ensuring  a very high sensitivity.
4. The weights used are all non-magnetic stainless steel material.
5.The piston displacement sensor used to monitor the working position, the piston up and down stroke of ± 1.5mm, instrument display is sensitive, smart, and accurate.
6. Wide range, at the lower 1MPa, the basic error of ± 0.02% or ± 0.05%, a JY100 type manometer, capable of reaching the upper limit of the current domestic 6,60,100MPa three measuring manometer.
7. pressure regulator easy , even at 250MPa pressure could ease.

Company Information KY dead weight pressure gauge tester pressure calibrator

pressure gauge calibration machine calibration weights JY deadweight tester

pressure gauge calibration machine calibration weights JY deadweight tester

Emma Zhao / Xi’an Yunyi Instrument Co., Ltd.

Mobile: +86 17391772083

Skype: emma02281

WeChat:zhao jiao228

What'sapp: +86 18629367136

Email: sales.c@7deadweighttester.com

Tel: + 86-029-88639233

Fax: +86 029 88622793

Website:


Product Tags: calibration of pressure gauge by dead weight tester , pressure gauge calibration , dead weight tester working
