zinc coating machine specialized for welding pipe and welding crack

  zinc-spraying machine  SX300 specialized for welding pipe and welding crack

           zinc-spraying machine  specialized for welding pipe and welding crack

aiming  to the high frequency welded pipe units , our technologist developed high efficiency, low energy new machine----Welding Pipe Welding crack Specialized Zinc coating machine .The  spraying range can be reduced to less than 20mm, spraying zinc particles can be concentrated within 10mm.

1. construction of  SX300 Welding Pipe Welding crack Specialized Zinc coating machine

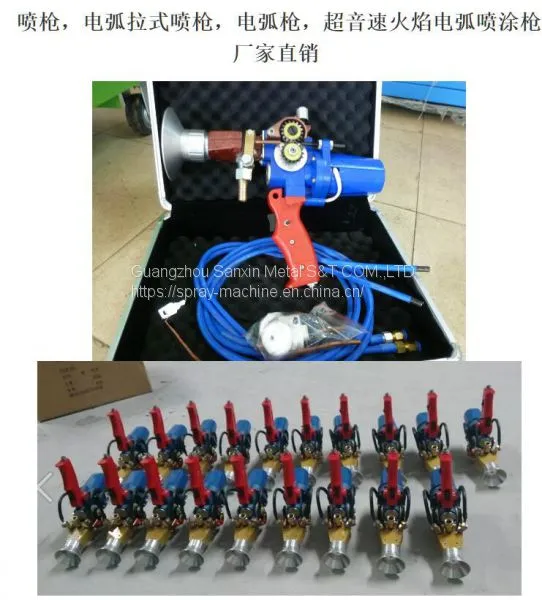

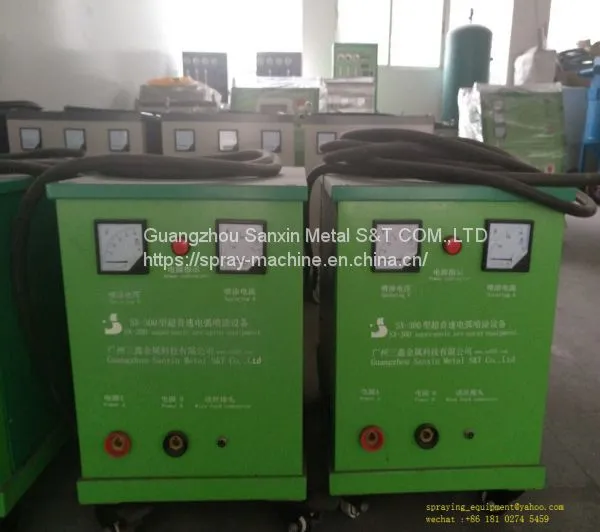

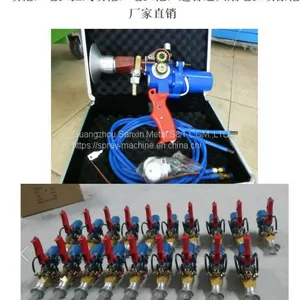

control cabinet +spray gun

   2. advantage of power for SX300 Welding Pipe Welding crack Specialized Zinc coating machine

      Power of Welding Pipe Welding crack Specialized Zinc coating machine is of one-up technology in the spraying machinery industry,. The entire control system is of low voltage (24V). With a variety of protection functions:

(1) protecting the machine when in low voltage , will not start automatically when the machine is OK

(2) the main transformer has overload protection function ,which means when the voltage is higher, the power can also protect the machine

(3) The whole equipment is under overload and short circuit protection situation ,very safe

(4) every time when connecting the  three-phase 380V power supply, the control system will identify the position of the spraying switch , if any of the spraying switch is in the position of the connection (wire feed switch is not included ), the system will give alarm prompt . At this time  you  Just need to dial the switch to "stop".

You can also install the  spraying current detection device, when there is the plug wire or broken wire, the system will immediately stop working and give alarm prompts (this device is installed only after the user specified, conventional products is without it ).

The insulation grade of the main transformer and the control transformer is grade B.

(1)The necessary spraying data are indicated on the panel.

(2)Operating procedures and equipment failures are reflected on the panel LEDs.

(3)For the use of electricity leakage or 0-order protection of the power supply system, this equipment is particularly convenient.

(4)The spraying power supply is considered compatible with other spraying unit products.

     When used with the special equipment ,it can be controlled by the special equipment, and the necessary data on the spraying machine can be received on the device, which can make  facilitate real-time monitoring

(5)The Power box is the frame structure, the box board is of  the inserting type, the opening and closing is simple, the structure is compact, and the maintenance is convenient.

(6) The wire feed voltage meter can preset spraying current.

DC large current part of the output of the half-concealed, fixed stud can  use m8~10 mm, cable joints is flat-panel contact, to avoid the output head is of high temperature(which cause  the insulation plate burned out), also will not damage  the output pile head because of  cable joints high temperature.  All of the  low voltage high current connection of the power supply internal  use  the copper row and spreads the conductive pasteto replace the tin-lined craft

3.Characteristic of  SX300 Welding Pipe Welding crack Specialized Zinc coating machine

(1) high coating efficiency, simple and safe operation,, convenient use, stable performance, low spraying cost (relative to gas spraying)

(2)The bonding strength between the layer and the substrate is high;

(3)spraying deposition rate is high, the deposition rate of zinc reaches 75%;

(4)wire  feeding  speed  is  consistent and smooth, which can  ensure that the arc is fast and reliable.

(5)this set of equipment is particularly suitable for high-frequency welding pipe production line, to increase zinc on the welding crack or to spray capacitor.

       Spraying operation is just with only one switch, which is very simple, the spray gun and equipment connection is intuitive and clear, in addition , there is a operation switch on the   spray gun handle ,which can work at where there must use spray gun . Power Control Panel does not have a special external control (remote) switch, which is more convenient to the personnel on-site construction

(6)   SX-300 power supply technology is advanced in the spraying machine field ,voltage of the whole system is 24V,which is of various protecting function as above marked

    (7) operational program and equipment failure will be reflected on the panel light ,essential spraying data will be instructed  on the panel

4.application of SX300 Welding Pipe Welding crack Specialized Zinc coating machine

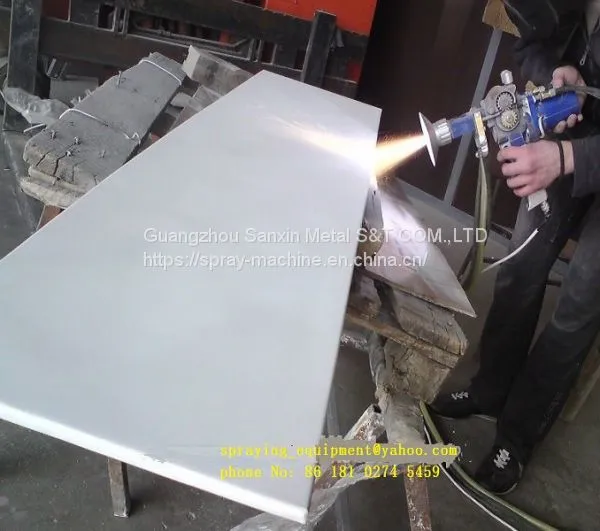

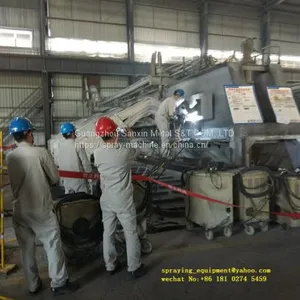

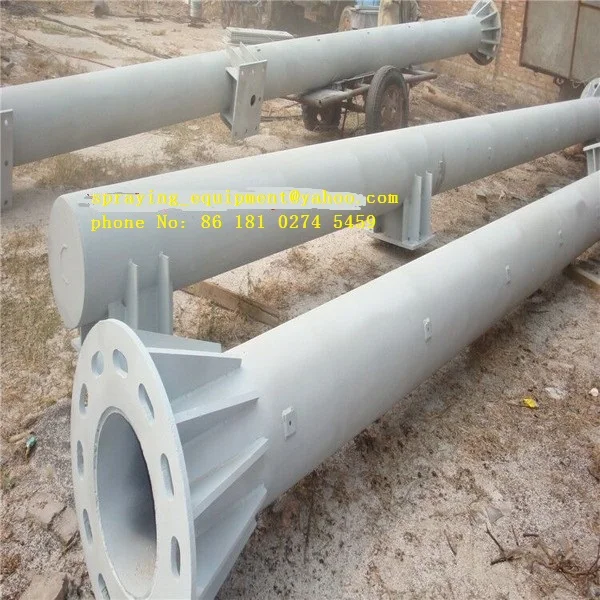

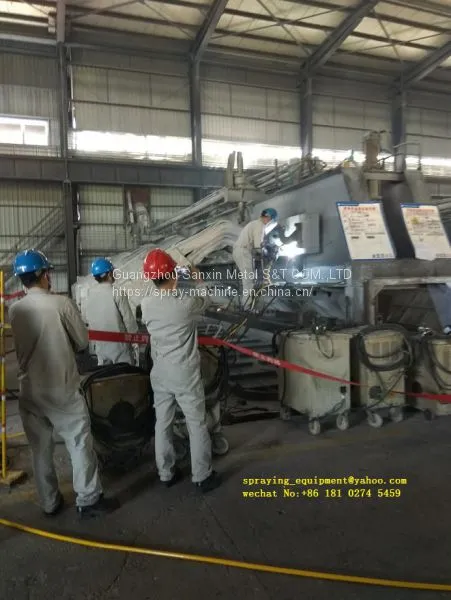

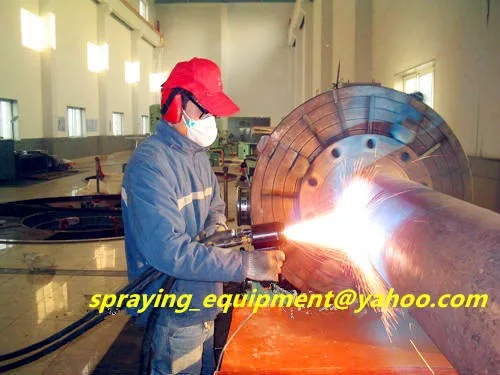

         this equipment especially used in ratio-frequency welded tube production line ,to add zinc on  weld joint or  spray capacitance,please check the pictures below for reference

        We have various kinds of  spraying machine , which would meet requirements for any scale of your project. Also,we can  do customized equipment according to your requests. All of our products are of good quality and competitive price ,our customers are from both at home and abroad,you can trust us because we have committed in spraying field for more than 30 years,all of our machine are of good quality and competitive price

        If you are interested in our products, please contact me ,Jessica
