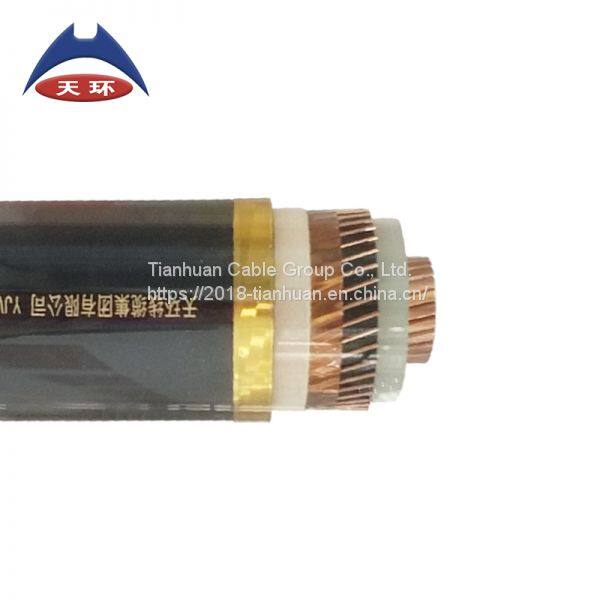

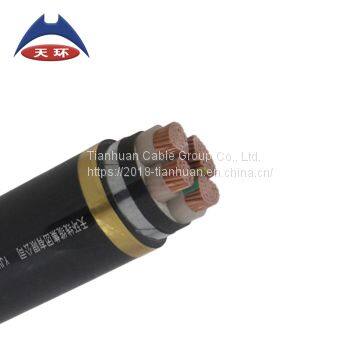

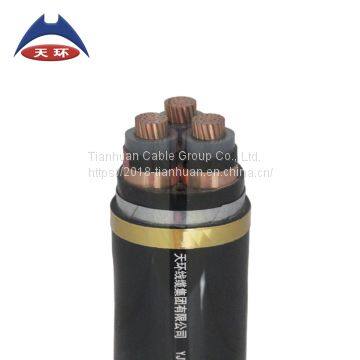

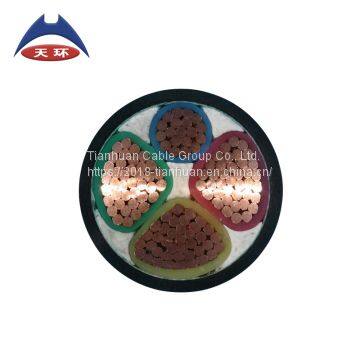

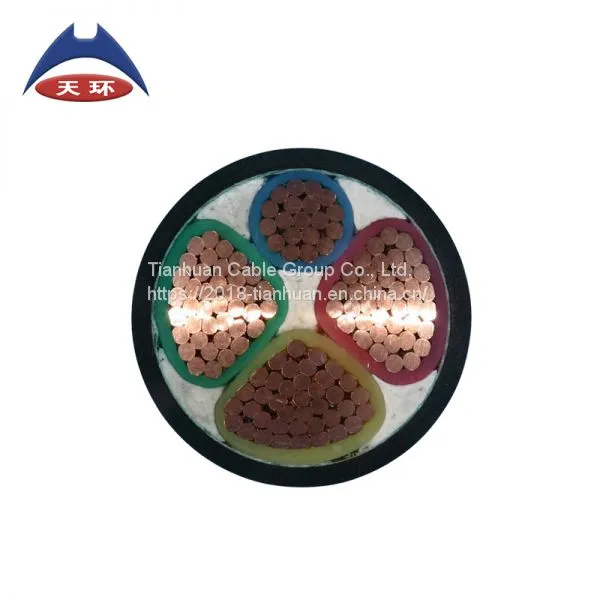

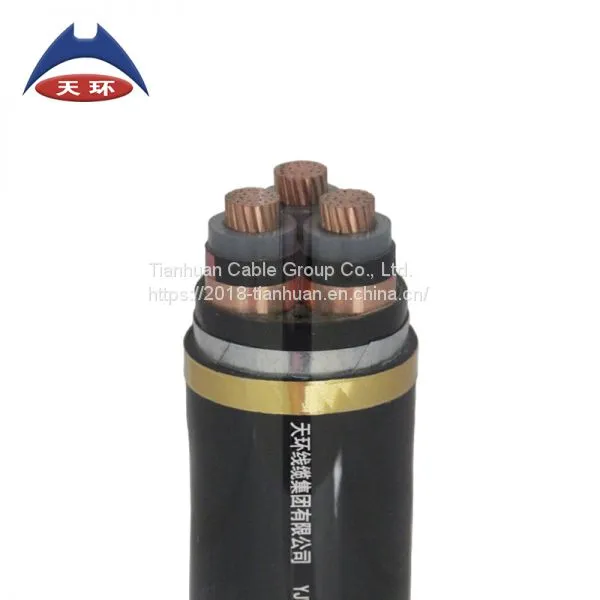

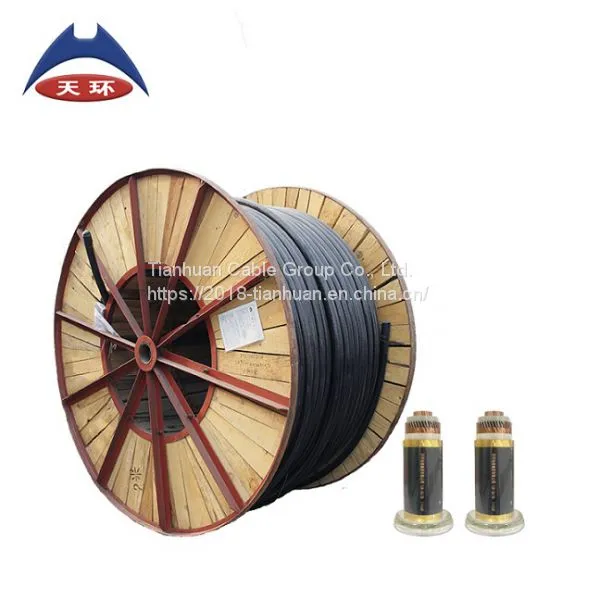

CU/XLPE/PVC 0.6/1KV Power Cable
- 10000 Kilometer / Kilometers per Month
- TIANJIN
- T/T L/C
- 15 days
Product Details
| Brand Name: | Tianhuan | Place of Origin: | China | Model Number: | YJV |
| Type: | Low Voltage | Application: | Construction | Insulation Material: | XLPE |
| Jacket: | PVC | Conductor Material: | Copper |
Product Description
YJV
CU/XLPE/PVC
XLPE insulated, PVC sheathed, 0.6/1KV, IEC60502
CONSTRUCTION
Conductor:
plain annealed copper, class 2 stranded circular, compacted or sectored
Insulation:
Cross-linked polyethylene(XLPE) compound
Insulation color:
natural
Outer sheath:
Polyvinyl Chloride(PVC) Compound type ST2
Outer sheath Colour:
Black
ELECTRICAL CHARACTERISTICS
Operating voltage, U0/U:
0.6/1KV
Operating temperature:
0℃ to 90 ℃
Final short circuit temperature:
250 ℃
Test voltage:
3.5KV for 5 minutes
REFERENCE STANDARDS
Design specification: IEC 60502-1
Conductor: IEC 60228
Flam Retardancy: IEC 60332-1
INSTALLATION REFERENCE
Min. bending radius(mm): 20 ×cable overall diameter
Max. pulling tension(N/mm2): 70
SINGLE CORE:
Nominal conductor area(mm2) | No. and diameter of wires(no./mm) | Radial thickness of insulation(mm) | Cable overall diameter(mm) | Approximate weight(kg/km) |
6 | 7/1.04 | 0.7 | 7.3 | 105 |
10 | 7/1.35 | 0.7 | 8.2 | 150 |
16 | 7/1.70 | 0.7 | 9.6 | 225 |
25 | 7/2.14 | 0.9 | 11.3 | 338 |
35 | 7/2.52 | 0.9 | 12.5 | 443 |
50 | 19/1.78 | 1 | 14.1 | 582 |
70 | 18/2.14 | 1.1 | 16.1 | 814 |
95 | 19/2.52 | 1.1 | 18.2 | 1097 |
120 | 37/2.03 | 1.2 | 20 | 1365 |
150 | 37/2.25 | 1.4 | 22.2 | 1676 |
185 | 37/2.52 | 1.6 | 24.4 | 2081 |
240 | 61/2.25 | 1.7 | 27.5 | 2700 |
300 | 61/2.52 | 1.8 | 30.3 | 3355 |
400 | 61/2.85 | 2 | 33.9 | 4262 |
500 | 61/3.20 | 2.2 | 37.6 | 5338 |
630 | 127/2.52 | 2.4 | 42.4 | 6857 |
800 | 127/2.85 | 2.6 | 47.3 | 8701 |
1000 | 127/3.20 | 2.8 | 52.4 | 10891 |
MULTI CORES
Nominal conductor area(mm2) | No. and diameter of wires(no./mm) | Radial thickness of insulation(mm) | Cable overall diameter(mm) | Approximate weight(kg/km) |
2*1.5 | 7/0.53 | 0.7 | 10 | 123 |
2*2.5 | 7/0.67 | 0.7 | 10.8 | 153 |
2*4 | 7/0.85 | 0.7 | 11.9 | 197 |
2*6 | 7/1.04 | 0.7 | 13 | 252 |
2*10 | 7/1.35 | 0.7 | 14.9 | 358 |
2*16 | 7/1.70 | 0.7 | 17 | 505 |
2*25 | 7/1.24 | 0.9 | 20.4 | 754 |
2*35 | 7/2.52 | 0.9 | 22.7 | 984 |
2*50 | 19/1.78 | 1 | 22.4 | 1237 |
2*70 | 19/2.14 | 1.1 | 25.4 | 1711 |
2*95 | 19/2.52 | 1.1 | 28.2 | 2287 |
2*120 | 37/2.03 | 1.2 | 31.2 | 2856 |
2*150 | 37/2.25 | 1.4 | 34.9 | 3523 |
2*185 | 37/2.52 | 1.6 | 38.1 | 4387 |
2*240 | 61/2.25 | 1.7 | 43.2 | 5678 |
2*300 | 61/2.52 | 1.8 | 47.4 | 7028 |
3*1.5 | 7/0.53 | 0.7 | 10.5 | 150 |
3*2.5 | 7/0.67 | 0.7 | 11.4 | 190 |
3*4 | 7/0.85 | 0.7 | 12.5 | 252 |
3*6 | 7/1.04 | 0.7 | 13.8 | 328 |
3*10 | 7/1.35 | 0.7 | 15.8 | 477 |
3*16 | 7/1.70 | 0.7 | 18.1 | 684 |
3*25 | 7/1.24 | 0.9 | 21.8 | 1035 |
3*35 | 7/2.52 | 0.9 | 24.2 | 1364 |
3*50 | 19/1.78 | 1 | 25 | 1766 |
3*70 | 19/2.14 | 1.1 | 28.9 | 2480 |
3*95 | 19/2.52 | 1.1 | 32.6 | 3338 |
3*120 | 37/2.03 | 1.2 | 35.8 | 4166 |
3*150 | 37/2.25 | 1.4 | 40.4 | 5147 |
3*185 | 37/2.52 | 1.6 | 45 | 6424 |
3*240 | 61/2.25 | 1.7 | 50.5 | 8335 |
3*300 | 61/2.52 | 1.8 | 54.6 | 10297 |
3*400 | 61/2.85 | 2 | 63.7 | 13234 |
4*1.5 | 7/0.53 | 0.7 | 11.3 | 182 |
4*2.5 | 7/0.67 | 0.7 | 12.3 | 233 |
4*4 | 7/0.85 | 0.7 | 13.6 | 312 |
4*6 | 7/1.04 | 0.7 | 15 | 411 |
4*10 | 7/1.35 | 0.7 | 17.2 | 605 |
4*16 | 7/1.70 | 0.7 | 19.8 | 876 |
4*25 | 7/1.24 | 0.9 | 23.9 | 1334 |
4*35 | 7/2.52 | 0.9 | 26.7 | 1766 |
4*50 | 19/1.78 | 1 | 27 | 2284 |
4*70 | 19/2.14 | 1.1 | 31.4 | 3231 |
4*95 | 19/2.52 | 1.1 | 35.3 | 4354 |
4*120 | 37/2.03 | 1.2 | 39.1 | 5463 |
4*150 | 37/2.25 | 1.4 | 44.8 | 6755 |
4*185 | 37/2.52 | 1.6 | 49.8 | 8446 |
4*240 | 61/2.25 | 1.7 | 57.1 | 11016 |
4*300 | 61/2.52 | 1.8 | 63.4 | 13717 |
4*400 | 61/2.85 | 2 | 72.8 | 17558 |
4*500 | 61/3.20 | 2.2 | 80.8 | 21991 |
5*1.5 | 7/0.53 | 0.7 | 12.1 | 214 |
5*2.5 | 7/0.67 | 0.7 | 13.3 | 278 |
5*4 | 7/0.85 | 0.7 | 14.7 | 375 |
5*6 | 7/1.04 | 0.7 | 16.6 | 496 |
5*10 | 7/1.35 | 0.7 | 18.8 | 737 |
5*16 | 7/1.70 | 0.7 | 21.6 | 1072 |
5*25 | 7/1.24 | 0.9 | 26.3 | 1640 |
5*35 | 7/2.52 | 0.9 | 29.3 | 2176 |
5*50 | 19/1.78 | 1 | 34.2 | 2849 |
5*70 | 19/2.14 | 1.1 | 40 | 4170 |
5*95 | 19/2.52 | 1.1 | 45.3 | 5617 |
5*120 | 37/2.03 | 1.2 | 50.6 | 7056 |
5*150 | 37/2.25 | 1.4 | 56.2 | 8680 |
5*185 | 37/2.52 | 1.6 | 62.8 | 10860 |
5*240 | 61/2.25 | 1.7 | 70.8 | 14093 |
5*300 | 61/2.52 | 1.8 | 78.3 | 17520 |
