best selling zinc arc coating machine, screw coating equipment , zinc aluminum copper arc spray machine with factory price

      best selling zinc  arc coating machine, screw coating equipment , zinc aluminum copper arc spray machine with factory price

         SX-600 is one kind of zinc aluminum copper  arc coating machine, screw coating machine , arc spray machine with arc spray gun ,it is used for spraying zinc, aluminum, copper, molybdnum, titanium,stainless steel,high carbon steel,nickel chromium alloy,wear-resistant alloy,Babbitt alloy material,etc.

1.principle of best selling zinc  arc coating machine, screw coating equipment , zinc aluminum copper arc spray machine with factory price

         This  high velocity  arc spraying (high velocity arc spraying)  is a technology which uses arc to melt metal,the arc is formed by combustion in two continuous  feeding metal wire,then the melting metal is atomized by high speed airflow.Through the laval nozzle,the atomizing metal particles are accelerated to make them to exceed supersonic to spray to the workpieces to form a coating

2. component of best selling zinc  arc coating machine, screw coating equipment , zinc aluminum copper arc spray machine with factory price

It is a new technology based on the normal arc spraying ,which is composed of a special power supply, an arc spray gun, a push type arc spraying device, and a wire feeder.

(1)control cabinet

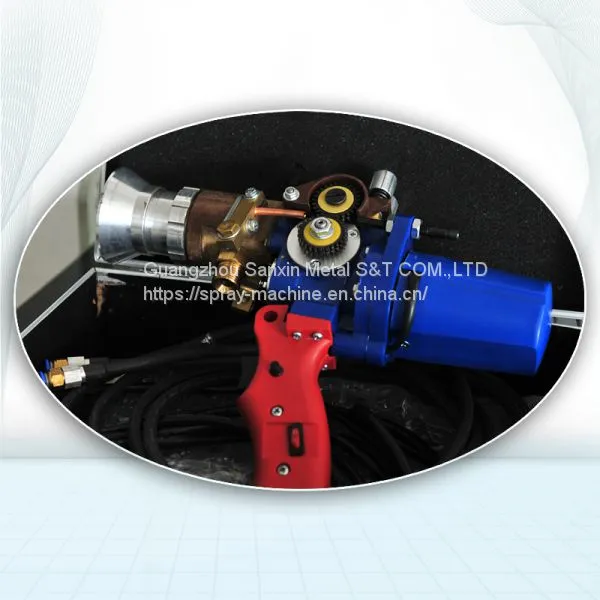

 (2) arc spray gun

3.    parameter of best selling zinc  arc coating machine, screw coating equipment , zinc aluminum copper arc spray machine with factory price

Arc spray gun parameters:

 Metal wire parameters:

 4.advantage of best selling zinc  arc coating machine, screw coating equipment , zinc aluminum copper arc spray machine with factory price

1) Stable and convenient

This equipment is improved in the operation program by integrated circuit to prevent from machine damage by misoperation of workers, so as to protect the safety of operators and the equipment.

 2) High adhesive force of coating(70Mpa)

Compared with 30-40Mpa of common arc’s coating,the adhesive force of coating can reach 70Mpa.

 3) Workpiece won’t be deformed and its structure won’t be changed.(<100℃)

Generally the rised temperature of workpiece won't exceed 100 ℃ when spraying, so the workpiece won't be deformed. And the spraying heat won't take effect directly on the surface so it doesn’t change the structure of workpiece.

 4) High efficiency and wide application

The equipment has high spray efficient and high power; It's suitable for on-site construction, and can use all kinds of metal and metal ceramic materials(solid and without core), such as alloy wires, Mo, Al, Zn, red copper, copper alloy, Babbitt etc. It is widely applied in spraying anti-wearing and anti-rust coatings for boiler’s four kinds of tubes, coal pulverizing system (fan impeller and scroll casing), roller, dryer, axis, mould,all kinds of workpieces and so on.

 5)Spray gun for long distance(30-meter-long-cable)

The spray gun can be equipped with 30-meter-long cable, air tube and 8-core control cable, so it can spray at remote places about 30 meters from the equipment.

 6)Unnecessary to change the wearing parts frequently

We have patent conductive nozzle which is anti-wearing and greatly enlarges use time of wearing parts. This helps to reduce the spraying cost and improve working’s efficiency and coating’s quality.

7)Convenient maintainance and repair

We take maintainance and repair work into our consideration during designing the equipment and spray gun which make it convenient to maintain and repair.

5.best selling zinc  arc coating machine, screw coating equipment , zinc aluminum copper arc spray machine with factory price for example:

   Also, arc spray coating machine SX600 can spray zinc or aluminum on the metal chairs ,metal facilities in the garden ,to improve the wear resistant ,wear corrosion of them, so as to lengthen their usage life .

6.our products and customers :

    our products are taken strict quality control ,Our customers are from a lot of countries in the world, we  have established long term cooperation with them.SX600 is the best sellers in our company , with good quality,wide usage and low price

      Our factory is committed to spraying technology research for more than 30 years ,we  have dozens of spraying equipment ,such as thermal spraying equipment,arc spray coating machine, plasma spraying equipment ,and so on.

       We also have various kinds of other spray equipments ,If you are interested in ,please contact me :
