Home > Products > Crane Cable > Multi Core Flat Cable for Crane or Conveyors

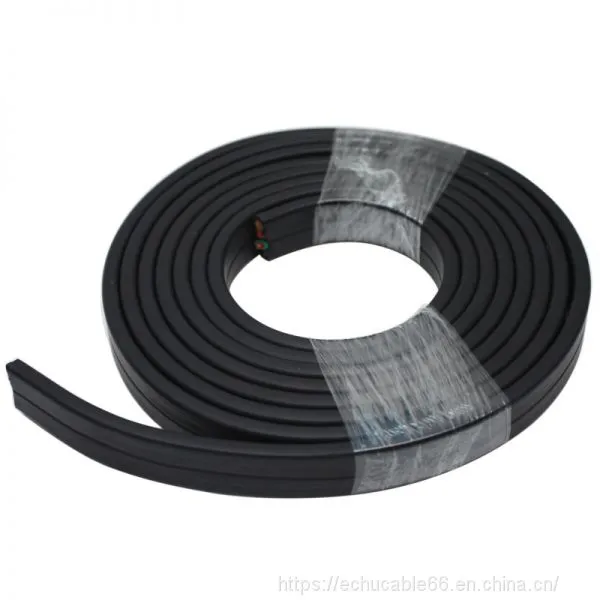

Multi Core Flat Cable for Crane or Conveyors
USD $0.38 - $6.92
/ Meter
300 Meters(Min.Order)
- 1000000 Kilometer / Kilometers per Month
- Shanghai
- T/T Other Cash
- 7 days
You May Like
-
Flat Travel Cable for Lift or Crane
-
E312831 UL Certified ROHS PVC Double Insulation 6AWG 600V UL1283 105℃ Electrical Wire in Black color
-
E312831 UL Certified ROHS PVC Double Insulation 5AWG 600V UL1283 105℃ Electrical Wire in Yellow/green color
-
UL1061 SR-PVC Insulated Copper Wire Electronic Wire & Cable, LED Light
-
ROHS PVC Electrical Earth Cable UL1015 16AWG 600V with UL certificate
-
E312831 UL Certified ROHS PVC Double Insulation 2AWG 600V UL1284 105℃ Electrical Wire in Yellow/green color
Product Details
| Brand Name: | ECHU | Place of Origin: | China | Model Number: | YFFB,YFFBG, YFFBP, YFFBPG |
| Application: | Construction | Insulation Material: | Rubber | Jacket: | Rubber |
| Conductor Material: | Copper |
Product Description
As connecting and control cable for cranes and conveyers. It is suitable for the places of railway stations,crane and other related situations.
It is suitable as a control and connection cable for cranes and conveyers on building sites,container goods railway stations and dockyards where operating conditions are rough.
Properties
Sheath: special polychloreprene(Butadiene-acrylonitrile rubber), It remains flexible at -15 °C, Flame resistance and self-extinguishing.
Structure:
Conductor:superfine copper strands acc.to VDE0295,CLASS 5
Insulation:mixed PVC,resistant to oil,flame resistance and self-extinguishing
Colour:acc.to 227IEC(brown,blue,black,green/yellow)
5cores or more with black number with white digital coding
Shielding: Bare Copper Braid.(Individually screen or overall shielding).
Sheath:butadiene-acrylonitrile rubber;resistant to oil,flame retardant and self-extinguishing;
Colour:black(RAL9005)or grey (RAL7001)
Standard:acc.to VDE 0482,part 265-2-1 resp.EN 50265-2-1 and IEC 60332-1.
Technical data:
Rated voltage:≤1.5mm 300/500V >1.5mm:450/750V
Test voltage: ≤1.5mm 2500V >1.5mm:3000V
Mimimum bending radius:0.3m
Burning vertically test:GB/T1 8380.1-2001, IEC 60332-1:1993 test
Passedstandard: GB5023.6,IEC60227-6,EN 50214.
Used under the normal conditions .the temperature of conductor is lower than 70°C
Temperature range:-15°C to +70°C .
Cables are reommended for installations where the suspended length doesn’t exceed 80m;and the speed of travel does not exceed 4m/s
If it is more than this ,with steel
It is suitable as a control and connection cable for cranes and conveyers on building sites,container goods railway stations and dockyards where operating conditions are rough.
Properties
Sheath: special polychloreprene(Butadiene-acrylonitrile rubber), It remains flexible at -15 °C, Flame resistance and self-extinguishing.
Structure:
Conductor:superfine copper strands acc.to VDE0295,CLASS 5
Insulation:mixed PVC,resistant to oil,flame resistance and self-extinguishing
Colour:acc.to 227IEC(brown,blue,black,green/yellow)
5cores or more with black number with white digital coding
Shielding: Bare Copper Braid.(Individually screen or overall shielding).
Sheath:butadiene-acrylonitrile rubber;resistant to oil,flame retardant and self-extinguishing;
Colour:black(RAL9005)or grey (RAL7001)
Standard:acc.to VDE 0482,part 265-2-1 resp.EN 50265-2-1 and IEC 60332-1.
Technical data:
Rated voltage:≤1.5mm 300/500V >1.5mm:450/750V
Test voltage: ≤1.5mm 2500V >1.5mm:3000V
Mimimum bending radius:0.3m
Burning vertically test:GB/T1 8380.1-2001, IEC 60332-1:1993 test
Passedstandard: GB5023.6,IEC60227-6,EN 50214.
Used under the normal conditions .the temperature of conductor is lower than 70°C
Temperature range:-15°C to +70°C .
Cables are reommended for installations where the suspended length doesn’t exceed 80m;and the speed of travel does not exceed 4m/s
If it is more than this ,with steel
