Home > Products > Through Bore Slip Ring > 12mm/120mm/500mmThrough hole electrical slip ring

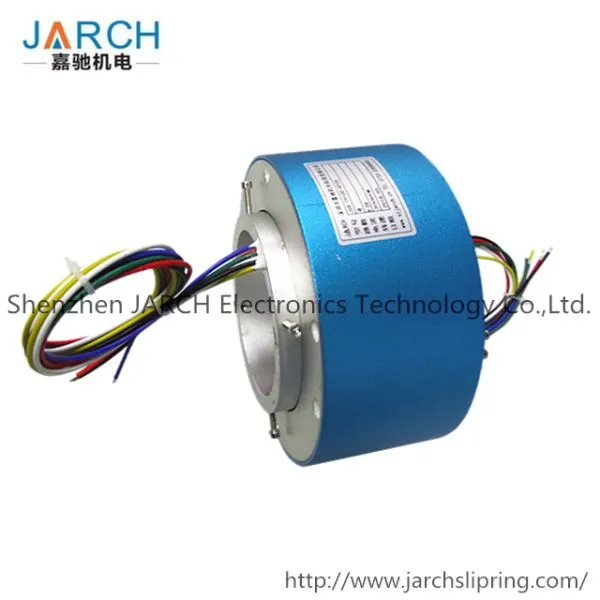

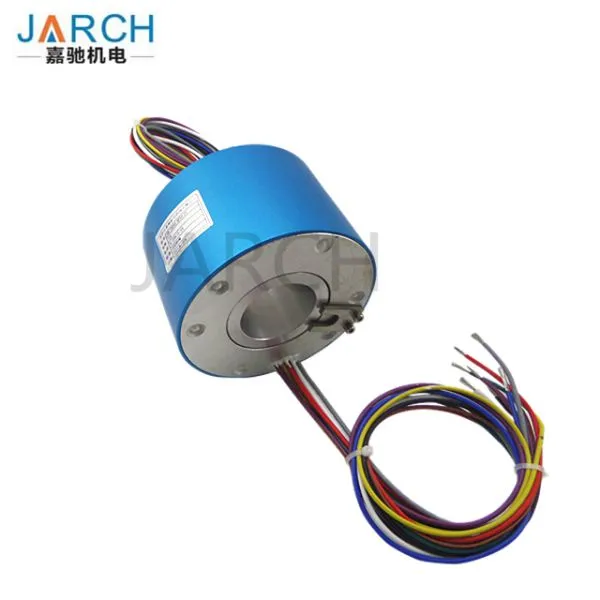

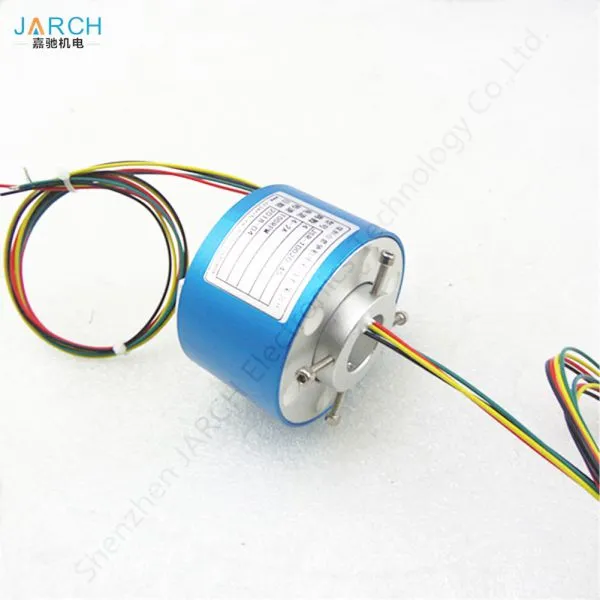

12mm/120mm/500mmThrough hole electrical slip ring
USD $200 - $400
/ Piece
1 Piece(Min.Order)
- 10000 Piece / Pieces per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 7 days
You May Like
-
Cable reel roller rack reel drum Spring Driven Hose Heavy Duty Cord Reel with LED light and USB
-
Spring Loaded Stainless Steel Water Reels Industrial Automatic Retractable Cable Reel for Gantry Crane
-
Spring Loaded HOST Water Reels Industrial Automatic Retractable Cable Reel for Gantry Crane
-
LC607 OLS Spring Retractable 304 Stainless Steel Hose Reel water air cable reels with 5 million life time rotary joint
-
LC670 OLP General Water Hose Reels Economical industrial cable reels
-
H16000 Medium Duty Hand Crank Reel Grease 250 ft Hose Cable Reels
Product Details
| Brand Name: | JARCH | Place of Origin: | China | Model Number: | JSR-Through bore slip ring |
Product Description
Shenzhen JARCH 12mm/120mm/500mmThrough hole electrical slip ring
Product Description
Slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
It is also called a rotary electrical interface, Slip Ring Assemblies, Rotary Connector, Slip Ring Units.It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.Medical Equipment 60mm Through Bore Rotary Slip Ring 250 ~ 500RPM for Electric Slip Ring
It is also called a rotary electrical interface, Slip Ring Assemblies, Rotary Connector, Slip Ring Units.It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.Medical Equipment 60mm Through Bore Rotary Slip Ring 250 ~ 500RPM for Electric Slip Ring

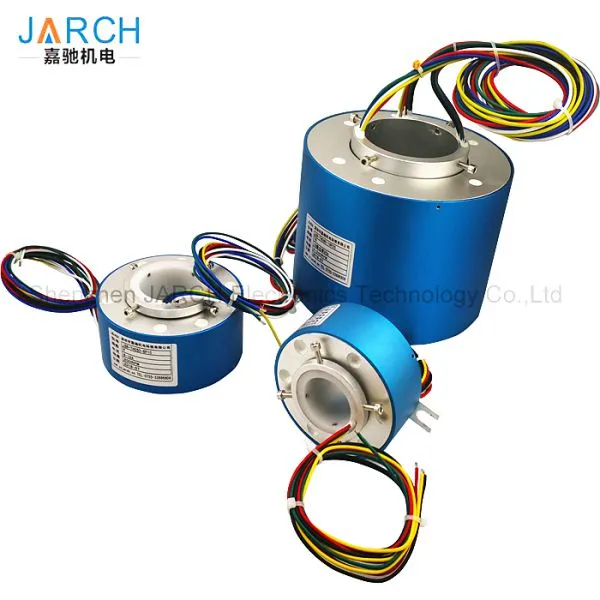

JARCH TH Series through bore slip rings are ideally suited for electric slip ring applications where signals and power need to be transferred, and a through hole is required to pass either a shaft or other feed through.
Medical Equipment 60mm Through Bore Rotary Slip Ring 250 ~ 500RPM for Electric Slip RinThe TH060 uses JARCH's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force and low contact wear. It provides an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 60mm through-bore for routing hydraulic or pneumatic lines. The 2~5 amps /circuit are available in 2 ~ 72 ring.
Medical Equipment 60mm Through Bore Rotary Slip Ring 250 ~ 500RPM for Electric Slip Ring

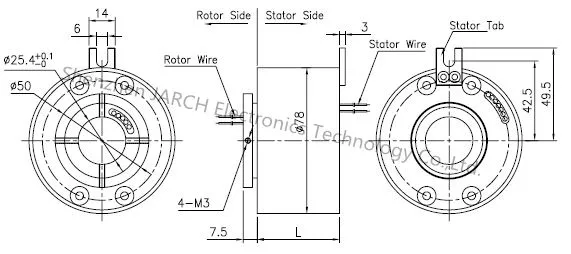

Installation Instructions:Shaft /Flange Mounted
Benefits OF Medical Equipment 60mm Through Bore Rotary Slip Ring 250 ~ 500RPM for Electric Slip Ring:
· Unique signal handling performance with minimal electrical circuit noise
· Tight packaging to fit in the most demanding space constraints
· Fully compatible with both analog and TTL control level signals
· Precision ball bearings for long life
· Sealed units available,IP67 optional
· Rugged anodized aluminum construction
· Available with Ethernet
· Rapid delivery
| Q1: Are you a factory or a trading company? | ||||||||||
| A: We are a professional manufactory with High-level R & D team. | ||||||||||
| Q2: How many types of the slip rings do you have? | ||||||||||
| A: We can supply all kinds of the slip rings.Such as minitary slip ring,customized sliring, miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type, disc slip ring,wind power slip ring,solar power slip ring,through-bore slip ring, etc. | ||||||||||
| Q3: Can you supply the slip rings with high frequency signals and(or) optical communication signals. | ||||||||||
| A: Yes, we can supply mixed signals slip rings as your request. | ||||||||||
| Q4: what's the working life of your slip rings. | ||||||||||
| A: 30~50 millions revolutions for standard ones, 50~80 millions revolutions for special ones, We also can supply much higher revolutions as your special requirement. | ||||||||||
| Q5: Do you supply OEM and ODM ? | ||||||||||
| A: Yes, we supply OEM and ODM. |
If you have any questions, pls contact us without any hesitation.
