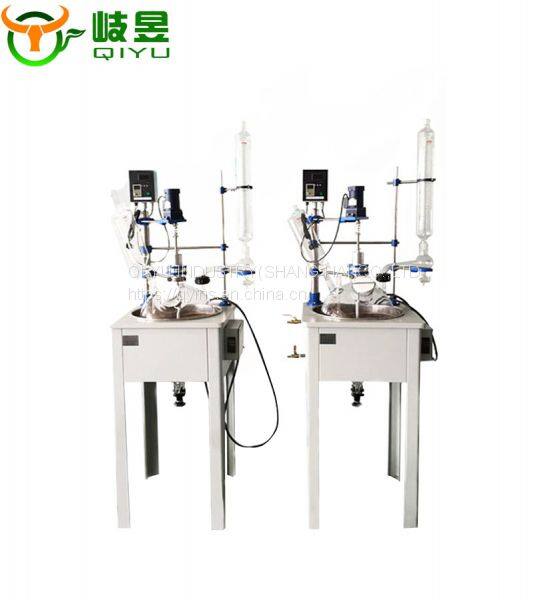

Hot 20L Lab Glass High Quality Elect Vacuum Reactor

Product introduction

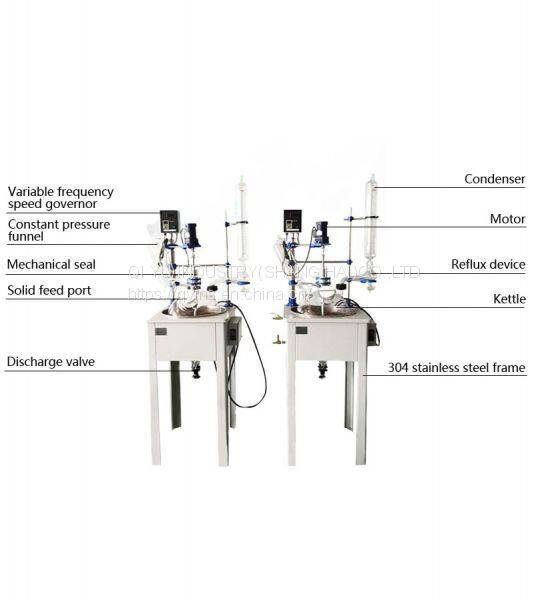

The single layer glass reactor heated the liquid in the water bath, and the reactor body was immersed in the liquid. The reaction in the reactor body was heated at constant temperature, and the evaporation and reflux of the reaction solution could be controlled. When the reaction is completed, the bottom of the kettle is discharged directly, and the operation is very convenient. It is an ideal equipment for modern chemistry, sample preparation, biological pharmacy and new material synthesis.

A single glass reactor can provide a range of 90-200 degrees Celsius (water in a water bath below 90 degrees Celsius, more than 90 degrees centigrade to use high temperature heat transfer oil, the most high temperature can reach 200 degrees centigrade), and a vacuum can be pumped to do negative pressure reaction.

All glass products in the glass reactor are made of high borosilicate glass and expanded coefficient 3.3. Its smooth and uniform surface ensures no material bond, easy to clean, better perspective and easy to observe the process; it is made of SiO2, B2O3, NaO, Al2O3; it has anti chemical corrosion resistance, high temperature resistance to a variety of acid, salt solution, organic intermediates, disable hydrofluoric acid, high concentration phosphoric acid, and alkaline solution. The temperature should not be higher than 50 degrees centigrade; the temperature range of the glass parts is from -80℃to +200℃; the heat resistance is less than 120 ℃, and the operating pressure of the glass parts (the pressure range is different for different temperatures and DN diameters), from -0.1Mpa to 0.4Mpa.

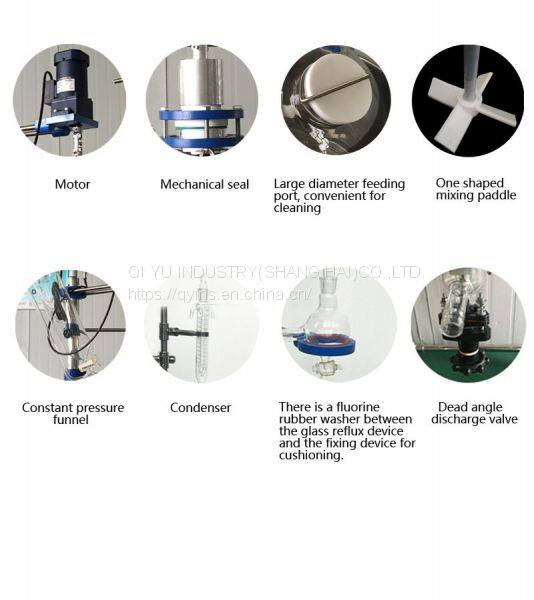

Qiyu Glass Reactor Seal adopts self-lubricating mechanical seal, which is more sealing, resistant to high strength corrosion and has a long service life. The frequency converter used in the system is stable in quality, showing the real-time temperature and rotational speed clearly. The PT100 probe has small error and high precision in temperature measurement. Wheel belt brake, easy to use.

Application:

1.Fine Chemicals
2.Biochemical New Drug Development
3.Pharmaceutical Intermediates
4.Purification of Noble Metals
5.Graphene New Energy Materials and Aerospace Materials

Qiyu Industrial (Shanghai) Co., Ltd. is located in the Jiading District Industrial Park of Shanghai city. We have considerable experience in R&D, and have obtained the national patent. We mainly produce glass reactor, rotary evaporator, short-path molecular distillation, temperature control system, vacuum equipment and other types of equipment.

The company has strong technical force, complete production equipment,  continuous absorption of advanced technology at home and abroad, and active development of new products.

We will continue to pursue the dedication of "honesty and innovation", and provide customers with perfect pre-sale, sale and after-sales service. Internationalization and standardization will transform innovation into productivity and let customers to use synchronized international products.

Pre-sale:

1. Provide free technical advice.

2. Design proposals can be issued according to customer requirements.

3 . The seller can provide detailed equipment parameters and configuration list.

After sale:

1. The warranty period of the company's products is 12 months from the date of acceptance of the equipment (excluding glass fittings and consumables);

2. If there are quality problems in the parts during the warranty period,

the seller can provide free replacement of malfunction components; if the damage is due to human factors, when the parts need to be replaced, the seller will provide the accessories and charge the maintenance cost according to the price.

3.For on-site installation and commissioning, additional charges will apply.
