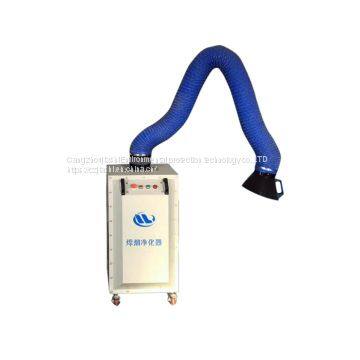

Welding smoke cleaner

Welding smoke purifier is a kind of industrial environmental protection equipment, usually used in welding places such as tin soldering and manual arc welding, which is used to collect and purify the welding smoke and dust, to protect the environment and protect the health of workers.

Working principle:

Through fan gravity, welding smoke exhaust inlet, the universal dust hood suction equipment equipment into FengKouChu with flame arrester, spark by the flame arrester were blocked, smoke gas into the sedimentation chamber, use of gravity and the upward airflow, will first coarse dust fall directly to ash hopper dust particles by filter capture outer surface, clean gas after filter filtration purification by filter center into the clean room, clean air filter and the activated carbon adsorption further after purification by the outlet standard discharge.

Product features:

1. The specially designed flexible suction arm can be stretched to any position to effectively remove smoke and dust from the source and reduce air pollution.

2. The integrated and efficient filter core can achieve 99.97% filtering efficiency for welding dust (0.3 vapor m) and maintain extremely high air flow rate.

3. Compact structure, compact size, universal casters installed, portable and flexible.

4. Equipped with a high-performance centrifugal fan, which has a large air intake and low working noise.

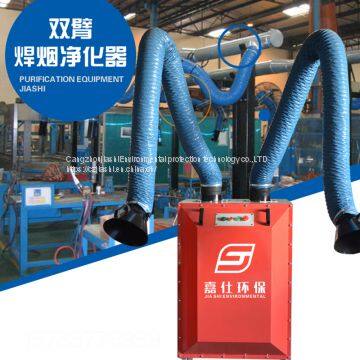

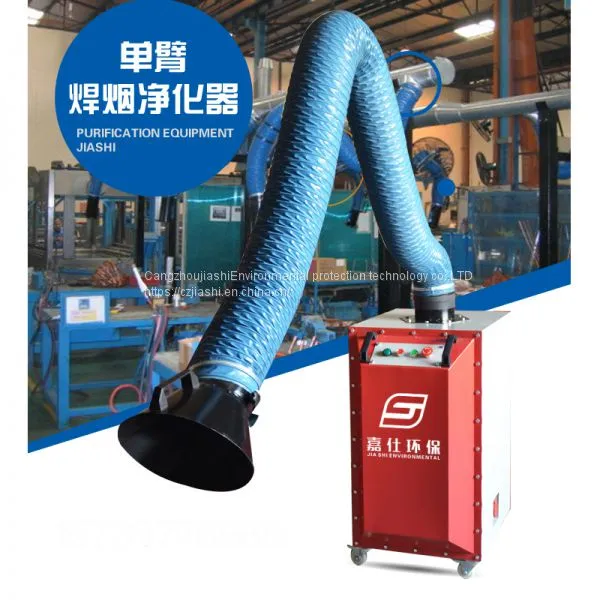

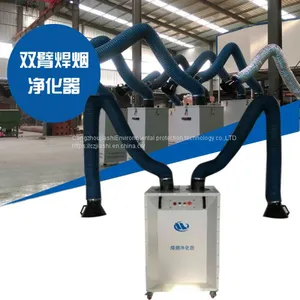

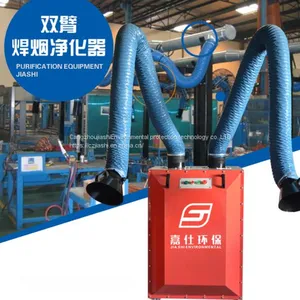

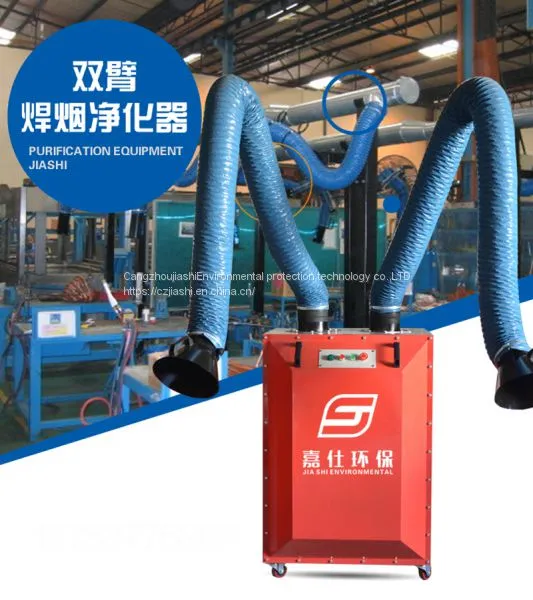

5. Various models and products are equipped with single arm, double arm and multi-arm to meet the actual needs of different customers.

6. Pulse control, automatic ash cleaning.

Description: a complete purification system is composed of front filter, main purification unit, rear adsorption and fan system. The combination of different functions can adapt to different places; The flexible, 360-degree rotating expansion arm can be directly extended to the source of pollution, and the waste gas can be effectively treated.

Application scope:

It can be used in welding, polishing, cutting, polishing and other processes to produce smoke and dust, as well as the recovery of rare metals and precious materials. It can purify a large number of small metal particles suspended in the air, which are harmful to human body and reduce the injury to workers. It is characterized by high purification efficiency, low noise, flexible use and small occupation area.

It is applicable to the workplaces where smoke is produced by arc welding, carbon dioxide welding, MAG welding, carbon arc gas gouging, gas welding and special welding.
