Heavy Model Four Side Dd Trimming Saw with High Precision
USD $9900 - $18000
/ Set
1 Set(Min.Order)
- 150 Set / Sets per Month
- Qingdao China
- T/T L/C D/P D/A Other
- 15 days
You May Like
Product Details
| Brand Name: | METRO | Place of Origin: | China | Model Number: | ABC3125-II |
| Use: | Woodworking | Certification: | CE, ISO, FDA | After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 1 year | Weight: | 7200kgs | Dimension(L*W*H): | 8500x5500x1020mm |
| Condition: | New | Voltage: | 380V | Usage: | wood panel board edge trimming cut |
| Power(W): | 43Kw | Type: | Table Panel Saw | Style: | Horizontal |
Product Description
Product Description

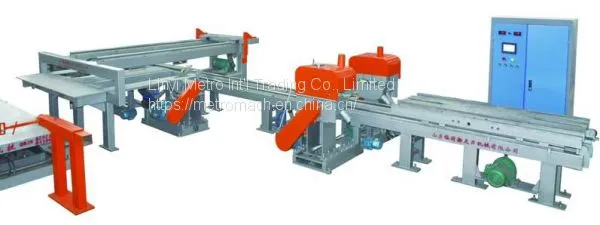

High Precision Automatic Lengthways- Transverse Trimming Saw
Main features:
5.The machine adopts pre-load device, just need two workers, one work shift can produce 3000-4000Pcs 16mm plywood.
Technical parameters:
Features:
1.The main structure is welded by national standard steel, high stability and no deformation.
2.The operating system is accurately controlled by PLC to achieve the high precision sawing size and automatic stacking, reduce the labor's intensity.
3.The main electric units adopt famous brand Omron, Schneider, safety and reliable.
4.The machine adopts high precision wear-resistance guide rails and infrared positioning, diagonal error of plywood can be less than 0.5mm.
5.The machine adopts pre-load device, just need two workers, one work shift can produce 3000-4000Pcs 16mm plywood.
6.It has the automatic saw waste remover device.
Technical parameters:
| Model | ABC3215-II |
| Working dimension | 2440x1220mm |
| Diameter of saw blades | Ф250-Ф315mm |
| Working thickness | 3-50mm |
| Rotary speed of the main saw blades | 6500-7000r/pm |
| Overall dimension | 8500x5500x1020mm |
| Machine weight | 7200Kgs |
| Total motor power | 43Kw |
| Remark | Include the automatic stacking system with lifting table and 4Pcs saw blades |
1.High Precision Wear-Resistance Guide Bar2.Electrical control cabinet all use the international brand: Omron, Schneider, Delta PLC...3.Saw waste automatic remover device

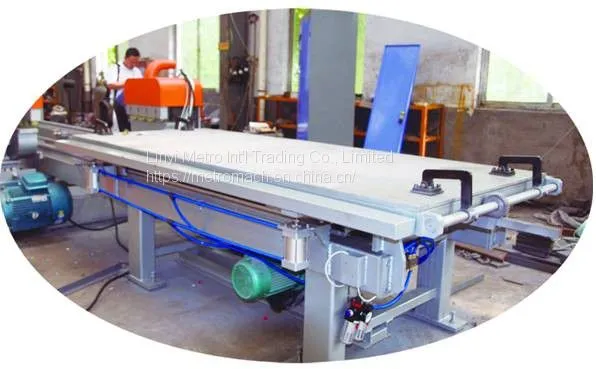

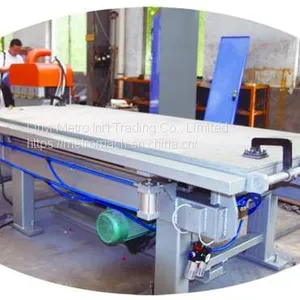

4.Automatic Pre-Loader Device, save the working time, continuous working.
