Home > Products > Stone grinding machine > Potash feldspar Raymond mill

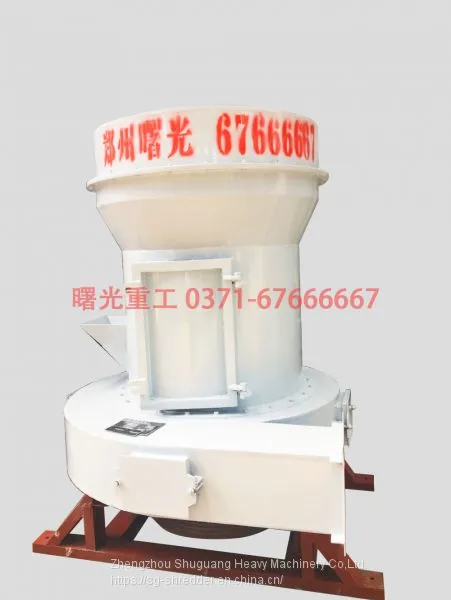

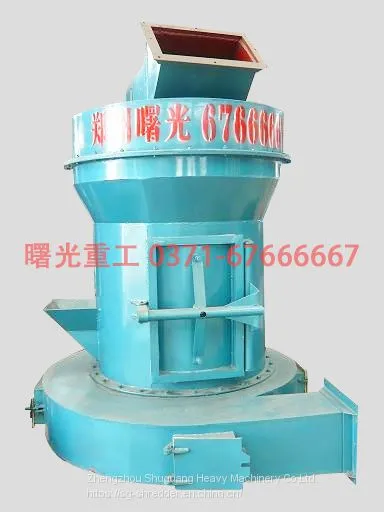

Potash feldspar Raymond mill
- 1000 Bag / Bags per Month
- Qingdao,Tianjin or others port
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 30 days
Product Details
| Brand Name: | shuguang | Place of Origin: | China | Model Number: | raymond mill |
Product Description
Potash feldspar Raymond mill is a new grinding machine for powder grinding instead of ball mill. All kinds of technical indexes have reached the advanced level in China and are well received by users of various industries. The product adopts the advanced structure of similar products abroad and is updated and improved on the basis of large-scale Potash feldspar Raymond mill. The equipment is more efficient than the ball mill, with lower power consumption, smaller floor space and less investment. The grinding roller is tightly compacted on the grinding ring under the action of centrifugal force, so when the grinding roller and grinding ring wear to a certain thickness, the output and fineness of the finished product will not be affected. The renewal cycle of grinding roller and grinding ring is long, so that the disadvantage of short replacement period of wearing parts of centrifugal grinder is eliminated.
Products Images
Detailed Data
Type | unite | 7826 | 8327 | 8630 | 9732 |
Roller number | a | 3 | 3 | 3 | 4 |
Roller diameter | mm | Ø260 | Ø270 | Ø300 | Ø320 |
Grinding ring inner diameter | mm | Ø780 | Ø830 | Ø860 | Ø970 |
Main engine speed | R/min | 160 | 160 | 155 | 140 |
Max. Feeding size | mm | <20 | <20 | <20 | <25 |
output | T/h | 0.25-2 | 0.3-3 | 1-4 | 2-7 |
Main engine motor type | kw | Y225S-8-18.5 | Y225M-8-22 | Y225M-8-22 | Y225S-8-37 |
Fan Motor Type | kw | Y160L-4-15 | Y180M-4-18.5 | Y180M-4-18.5 | Y200L-4-30 |
Analysis Machine Motor Type | kw | YCT1604B-2.2 | YCT160-4B-3 | YCT160-4B-3 | YCT200-4A-5.5 |
Total power | kw | 37.5 | 44.5 | 44.5 | 72.5 |
Length*width*height | m | 4.5*4.2*5.1 | 5.3*4.1*5.2 | 5.5*4.5*5.6 | 7.1*5.9*7.9 |
weight | t | 3.6 | 4.0 | 4.5 | 11.5 |
Fineness | mesh | 500-2500 | 500-2500 | 500-2500 | 500-2500 |
