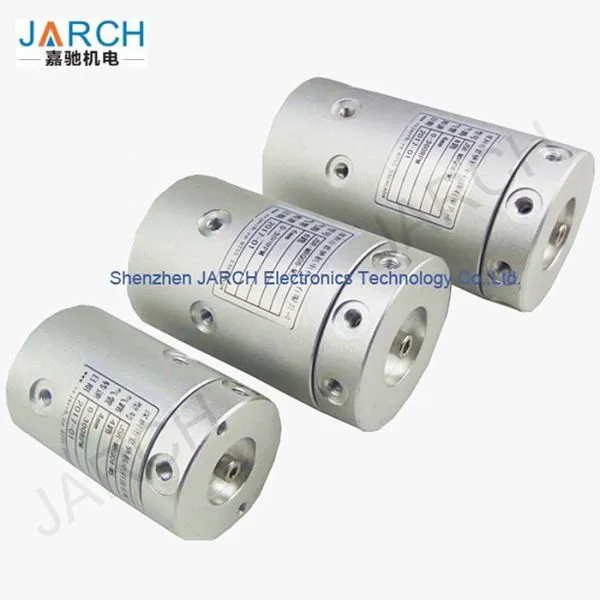

JARCH Multi passage Pneumatic Slip Ring Replacement of SMC MQR6 - M5 Pneumatic Rotary Joint

Pneumatic Hydraulic Electrical Slip Ring Connector Union Rotary Joint, Multi 2 4 6 passages High Speed 3000RPM

Feature:

1. It can transmit compressed air or other special gases to meet the functional requirements.
2. Hydraulic power can be transmitted, which can be selected from 0.8mpa-20mpa.
3. The speed can be selected from 10rpm to 500rpm to meet the requirements of various devices.
4. The number of electric slip ring channels can be selected from 2-96, while the hydraulic rotary joint (pneumatic rotary joint) can be selected from 1-36.
5. Small current, power current or various data signals that can be transmitted to any rotating body.

Quick Details:

Description:

The electrical rotating joint is an 18-way signal developed by jiatchi electromechanical co., LTD. For customers.The cyclone head is divided into 8 compressed-air channels with a diameter of 4mm

A rotary joint, also referred to as a rotary joint or rotating joint, provides a mechanical seal between a stationary supply pipe and a rotating drum or cylinder to permit the flow of heat transfer media into and/or out of the rotating roll. Heat transfer media typically used with rotary joints and rotating joints includesteam,water,hermal oil,coolant,airhydraulic oil.

MG series rotary joint consists of two large precision bearings and seals principles of design using smooth, sealed bearing and wear to a minimum, extend the service life.

JARCH’s high-speed rotary unions are capable of containing very high pressure while rotating at high speeds. The materials used in the making of the high-speed rotary unions are aluminum, carbon steel, and, upon request, stainless steel, which provides outstanding corrosive resistance. We offer a variety of sizes in both American and Metric. We specialize in custom design that provides our customers with the exact specifications that they require. Speak to our knowledgeable and personable sales staff and they will be happy to assist in the creation of the prototype that will meet your needs.

Typical industrial uses for JARCH’s high-speed rotary unions include steam dryers, rubber mills, extruders, calendar rolls, air clutches, laminators, press rolls, manufacturing of machines, hydraulics, Machining Centers and related applications.

Benefits:

1.Standard products, may replace completely SMC MQR series products,the size is the same.

2.It is metal sealed structure, low torque.

3. Its speed is up to 200-3000 rpm

4.Long lifetime,it is up to 50 million revolutions.


Dimensions:

Applications:

• Auto Machine

•Robot

•Dyeing, Rubber, Plastics, Chemical,Machine tool

Installation Instructions:

Your Rotary Systems rotary union is a precision component which, when installed properly, will provide a long, leak free life. Please follow these general guidelines when installing your union:
Connections
Rotary Systems unions should always be installed using flexible connections.  To avoid damage to the bearings, the union needs to find its center during operation.  It is imperative that either the shaft or the housing is not hard-piped.
The housing of the union should be held in a vise and the flexible connection should be installed before installing the union to the machine.
Clean female threads and face of shaft prior to installation. Use Teflon pipe tape or pipe sealant on NPT threads. As a guideline, NPT threads should be hand tight plus 1- 3 turns to seal the threads. When installing parallel threads, appropriate gaskets or o-rings should be used.
There should be a slight, kink-free curve in the hose when installed on the equipment. It is essential the housing or shaft is allowed to float to compensate for any eccentricities and/or misalignment.

Anti-rotation
In many instances, the flexible hose connections are used for anti-rotation. Other applications require an external device for anti-rotation such as a fork around the fittings, pin, yoke or bracket.  Anti-rotation devices need to “float” to prevent damage to the union.
Filtration
To prevent damage to the shaft or the seals, Rotary Systems requires filtration to 10 microns or less.  Failure to do so may invalidate your warranty and cause premature failure.
Lubrication
If your union has grease fittings, lubricate union with no more than two pumps of appropriate grease per fitting.

Jarch main products:

1. Fiber optic rotary joint series

2. Through bore slip ring series

3. Electro optical slip ring series

4. Hybrid slip ring series

5. Pneumatic rotary joint series

6. Hydraulic rotary union series

7. Capsule slip ring series

8. Pancake slip ring series

9. High current slip ring seriels

10.High speed slip ring series

11.Thermocouple slip ring series

12.Miniature slip ring series

13.Wind turbine slip ring series

14.Ethernet slip ring series

15.Explosion proof slip ring series

16.Mercury slip ring series
