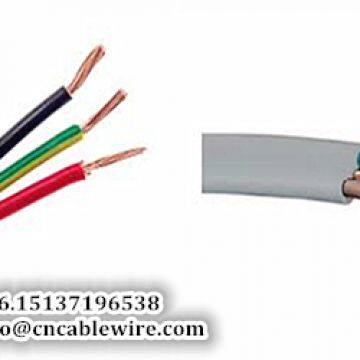

2C +E Installation Cables
- 10000 Meter / Meters per Month
- Qingdao
- T/T
- 15 days
Product Details
| Brand Name: | Gongyi Shengzhou Metal Products Co., Ltd. | Place of Origin: | China | Model Number: | 2C +E Installation Cables |
| Shielding: | Braid | Insulation Material: | Other | Conductor Material: | Copper |
Product Description
2C +E Installation Cables
Product name: 2C +E Installation Cables
Number of core: two core
Voltage: 300/500 V
Specifications:
1)The grounding wire (insulated): 3x2.5 mm2
2)The grounding wire (bare):
2x2.5+1x1,2x2.5+1x1.5,2x2.5+1x2.5 mm2
Standard: BS6004
2C +E Installation Cables Product Parameters
1)The grounding wire (insulated)
Code name | Installation cables | Reference picture | ||
| Nominal cross-sectional area | mm2 | 2.5 |  | |
| No. of cores | 3 | |||
| conductor | No. of strands | 49 | ||
| Dia. of strands | mm | 0.25 | ||
| Dia. of conductor | mm | 2.20 | ||
| Insulation | Dia. of cores | mm | 3.8 | |
| Thickness | mm | 0.8 | ||
| Sheath | Thickness | mm | 1.0 | |
2)The grounding wire (bare)
Code name | Installation cables | ||||
| Reference picture | | ||||
| Nominal cross-sectional area | No.x mm2 | 2x2.5+1x1 | 2x2.5+1x1.5 | 2x2.5+1x2.5 | |
| Insulated cores | No. of cores | 2 | 2 | 2 | |
| No. of wires | 1 | 1 | 1 | ||
| Wires Dia. | mm | 1.76 | 1.76 | 1.76 | |
| Dia. of conductor | mm | 1.76 | 1.76 | 1.76 | |
| Thickness of insulation | mm | 0.7 | 0.7 | 0.7 | |
| Dia. of cores | mm | 3.16 | 3.16 | 3.16 | |
| Grounding core | No. of cores | 1 | 1 | 1 | |
| No. of wires | 1 | 1 | 1 | ||
| Wires Dia. | mm | 1.13 | 1.38 | 1.76 | |
| Dia. of conductor | mm | 1.13 | 1.38 | 1.76 | |
| Thickness of insulation | mm | 0 | 0 | 0 | |
| Dia. of cores | mm | 1.13 | 1.38 | 1.76 | |
| Sheath | Thickness | mm | 1.0 | 1.0 | 1.0 |
