China electromagnetic flow meter suppliers water flow meter
- 1000 Piece / Pieces per Month
- Port of China
- T/T L/C Credit Card PayPal Other Cash Escrow
You May Like
-
low price electromagnetic flowmeter hot sale
-
Oil filled double-sided PP pressure gauge
-
High accuracy wall-mounted fixed ultrasonic flow meter water and gas
-
Economic Piston Calibrate pressure gauge dead weight tester
-
Portable Hydraulic Pressure Calibrator
-
Pneumatic handheld portable pressure source pump
Product Details
| Brand Name | SHELOK | Place of Origin | China | |
| Model Number | ZFG |
Product Description
China electromagnetic flow meter suppliers water flow meter
Description
ZFG series a shape by electromagnetic flow meter ZFG type electromagnetic flowmeter sensor and signal converter matching integrated ZFH series, signal converter with IP67 protection requirements. ZFG electromagnetic flowmeter is mainly used to measure a size All kinds of acid, alkali, salt solution, pulp, mud, such as electrical conductivity of liquid, or the volume flow of liquid-solid two-phase medium. In the chemical industry, mining and metallurgy, water supply and drainage, sewage treatment, food, papermaking, sugar-making, port dredging departments should be widely To use. This flow meter and display, recording instrument, integrator or regulator, used to test the flow, integrating, adjusting and control.

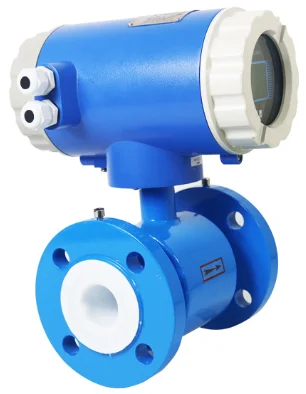

Detailed Images
Specification
Various size digital water flowmeter electromagnetic | |
Conductivity Range | The measured fluid condutivity≥5μs/cm |
Load Resistance | 0 ~ 10mA 0 ~ 1.5KΩ |
Current Output | 4 ~ 20mA 0 ~ 750KΩ |
Digital Frequency Output | Transistor output frequency limit can be set with optical isolation within 1~5000Hz bidirectional open-collector output. External power supply is turned ≤35V maximum collector current of 250mA |
Power Supply | AC 220V Or DC 24V |
Length Of Straight Pipe Requirements | Up Stream≥5DN, Down Stream≥2DN |
Connection | are used between the meter and piping flange connection, flange dimensions shall comply with the provisions of GB11988 |
Explosion Levels | Exd II BT4 |
Protection Class | IP65, Special Order up to IP68 |
Ambient Temperature | -25℃ ~ +60℃ |
Relative Humidity | 5% ~ 95% |
Total Power Consumption | Less Than 20W |
Lining Material
Lining material | corrosion resistance | Working temperature | Application |
Ne | General resistance to low concentrations of acid salt corrosion | -20~70℃ | lower industrial water effluent pH and salt concentration |
PO | Has an excellent wear resistance, abrasion resistance slurry dedicated to strong, not decay | -10~60℃ | Liquids containing solid particles (slurry pulp, etc.) |
FEP | 1 corrosion resistant and quite PTFE | -40~180℃ | except mortar. Like with PTFE can be used for drinks and other health requirements of the media |
PTFE | almost all of the corrosion resistant chemical media, poor wear resistance | -40~180℃ | Not be used for pipes and wear strong negative fluid |

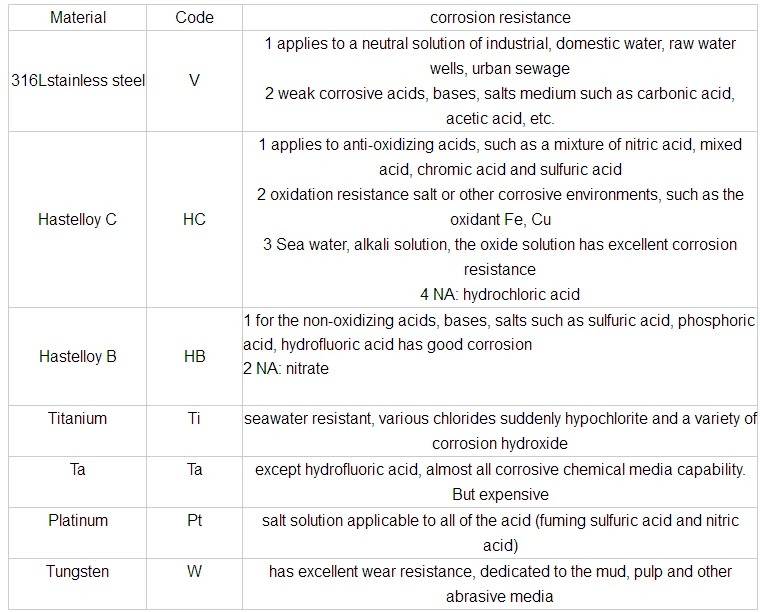

Electrode Materials
Features
1. The sensor adopts overall welding structure, good sealing
2. Record the measurement from the measured media pressure, temperature, density, viscosity and other physical parameters
3. With functions of conductivity measurement, can distinguish whether the sensor controller
4. Using 16-bit embedded microcontroller processor, a fast calculation speed, high precision
5. With two-way flow measurement function, can show positive and reverse flow, percentage, velocity of flow
6. With two-way flow measurement function, can show positive and reverse flow, percentage, velocity of flow
7. Digital content processing, strong anti-interference ability, reliable measurement, high precision
8. Low EMI switch power supply for power supply voltage change fan at large, the EMC performance is good
9. Since the diagnosis information and troubleshooting
10. Can provide explosion-proof type

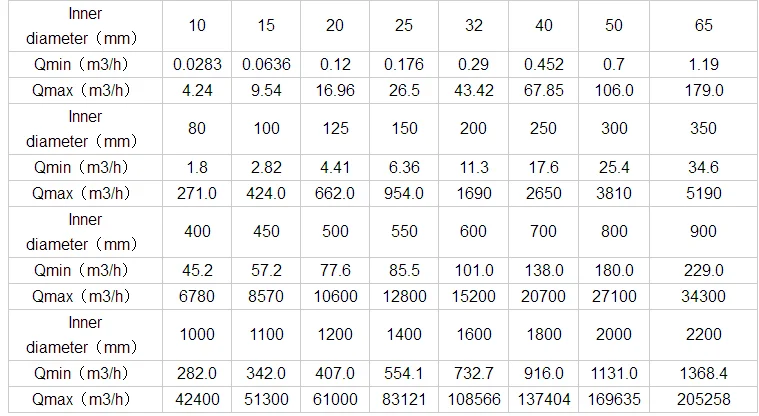

Range table

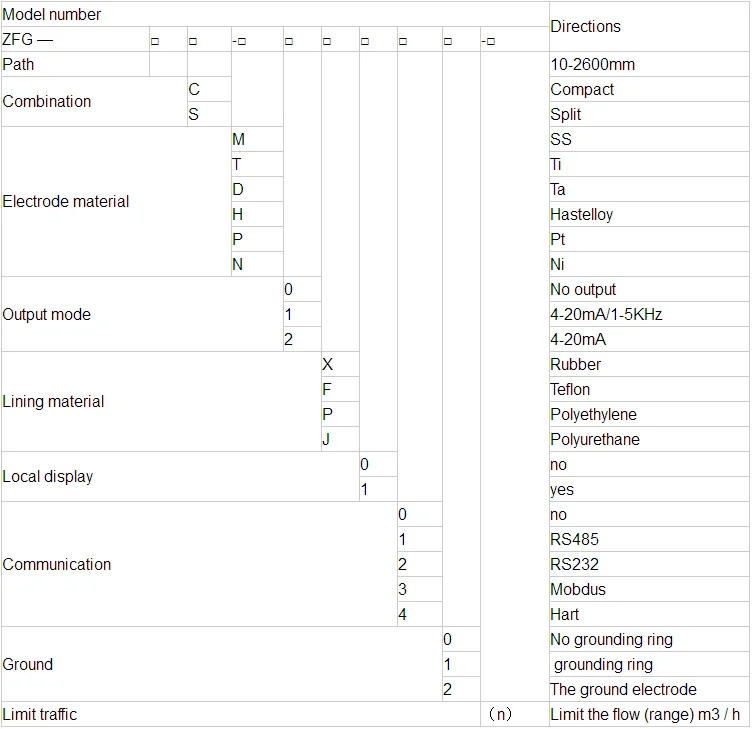

Selection Guide
Example:local display type electromagnetic flowmeter sewage pipes for user DN50, require rubber lining, stainless steel
electrodes,4 ~ 20mA output, no communication, limit the flow of 30m3 / h. Models should be: LDG-50S-M1X100-30
