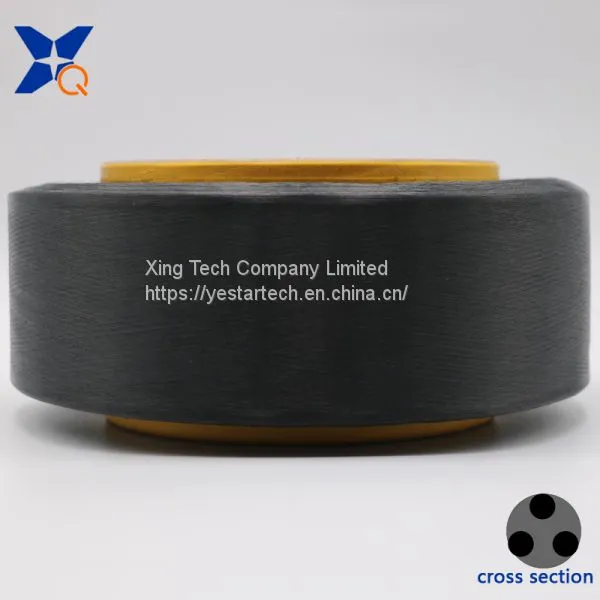

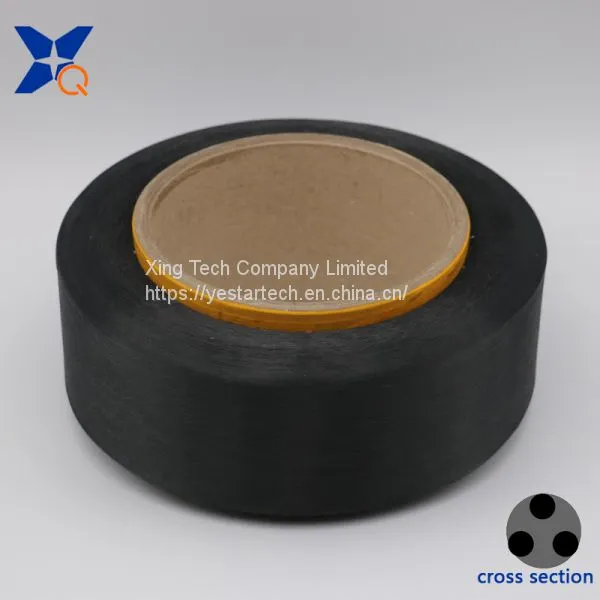

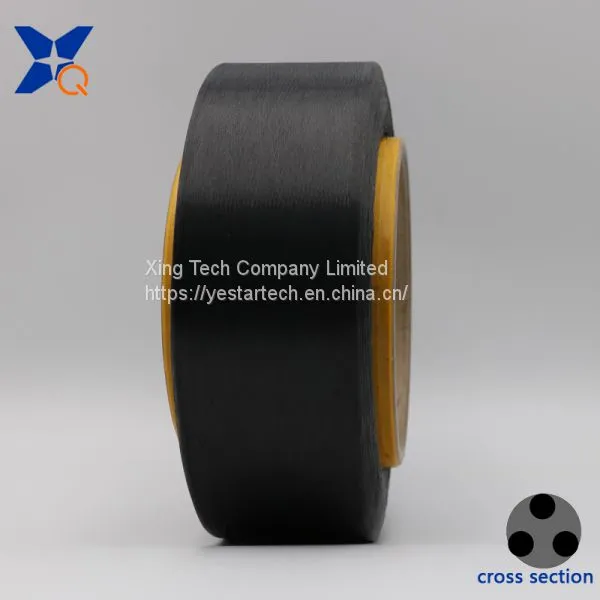

conductive carbon inside black polyester fiber filaments 20D/4F for Anti-Static fabric/garment/ESD gloves-XTAA192

  conductive carbon inside light grey polyester fiber filaments ESD gloves 20D/3F ESD fabrics

a) cross section: three dots type.

b) conductive materials: carbon grains.

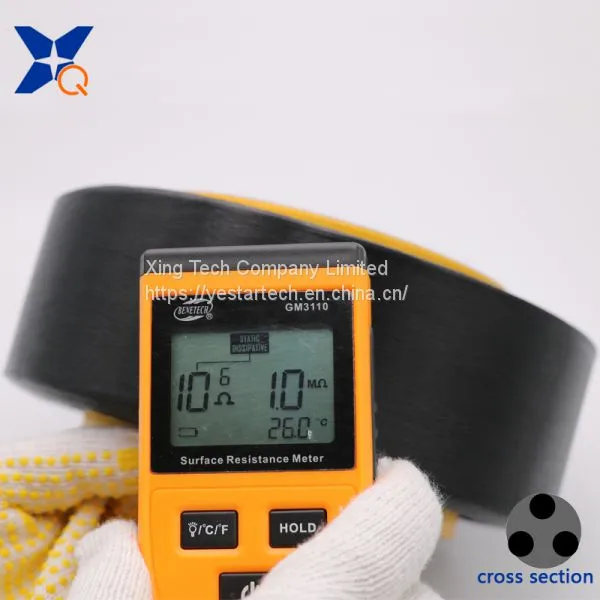

c) surface resistance: 10^6 ohm.

d) thickness: 20D

e) filament(s):3F

Also could supply 20D/3F, 20D/4F,  35D/6F, 40D/3F, 40D/6F, 100D/12F, etc.

Denier/Filament(s)	Based Materials	Conductive grains	Cross section	Color	Surface resistance
20D/1F	Nylon 6	Carbon		Black	10^4~10^5 ohm
20D/3F	Nylon 6	Carbon		Black	10^4~10^5 ohm
40D/3F	Nylon 6	Carbon		Black	10^4~10^5 ohm
40D/6F	Nylon 6	Carbon		Black	10^4~10^5 ohm
20D/3F	Nylon 6	Metal oxide	/	White	10^8 ohm
20D/3F	Nylon 6	Carbon		Black	10^5~10^6 ohm
20D/4F	Polyester	Carbon		Black	10^6 ~ 10^7 ohm
50D/8F	Polyester	Carton		Black	10^6 ~ 10^7 ohm
20D/3F	Polyester	Carbon		light grey	10^6 ohm
35D/6F	Nylon	Carbon		black	10^6 ohm

Application:

Embeded this conductive filaments into the fabric of anti-static work wear and cleanroom garments by regular grd/stripe , this fabric could electro static discharge .
* Dustless fabric
* linings of top grade suit
* Anti-static kniting gloves

* Anti-static fabrics
* Anti-static single yarn drill and ply-yarn drill
* Anti-static filter felt .

 500-800grams/bobbin, is not even net weight.

16 or 24 bobbins/carton

Could ship by international express or by general air transportation or by sea.

 If less than 100kg, could send out within 7 days approx.

If more than 1000kg, could finish them within 26 days approx..

 We produced this types of products more than 15 years, it is best-selling goods in EU, Turkey, India, USA, Argentina, Brazil, etc.

 a) If export to Turkey, could supply Exporter Registry Form and Certificate of origin?

     Yes, we exported this products to Turkey more than 10 years, very familiar with Turkey's market.

b) Could use this filaments for knitting/weaving directly?

   No, should intermingle/twist/cover with common polyester filaments FDY(DTY) black(white) 50D/75D/100D/150D/200D/280D in advance, then, could be used for weaving/knitting.

    Of course, also could twist/cover with cotton yarn/polyester staple fiber spun yarn, then, used for weaving/knitting.

   Such as:

    Black carbon inside conductive nylon filaments 20D/3F(ourter ring type) intermingling with common black(white) polyester  DTY(FDY) filaments  50D/75D/100D/150D/200D

      Black carbon inside conductive nylon filaments 20D/3F(ourter ring type) twisting with common black(white) polyester  DTY(FDY) filaments  50D/75D/100D/150D/200D

Use black carbon inside conductive nylon filaments 20D/3F(ourter ring type) cover common black(white) polyester  DTY(FDY) filaments  50D/75D/100D/150D/200D by S direction only.

Use black carbon inside conductive nylon filaments 20D/3F(ourter ring type) cover common black(white) polyester  DTY(FDY) filaments  50D/75D/100D/150D/200D by S direction and Z direction concurrently.

c) Could keep ability of electro static discharge after 250 times washing?

  Of course, so long as this materials exists in, it always has this capacity of electro static discharge.
