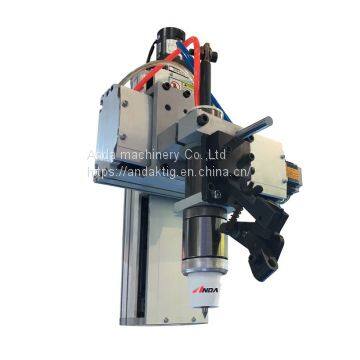

deep penetration welding machine KTIG700
- 999 Set / Sets per Month
- Tianjin,huangpu
- T/T L/C Cash
- 30 days
Product Details
Brand Name: | redflame | Place of Origin: | China | Model Number: | KTIG700 |
Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 12 months |
Condition: | New | Voltage: | 380 | Usage: | WELDING |
Power(W): | 45000 | Motor Type: | DC Motor | Dimensions: | 820*530*1200 |
Rated Duty Cycle: | 100% | Pilot Arc Current: | 50-160 | Pulse Frequency: | DC |
Arc Current: | 50-700 |
Product Description
Itim | Unit | Tpye: KTIG-1000 |
Mains Input(V)/Freqency(Hz) | V/HZ | Three Phase 380 ± 10 % / 50Hz |
Rated Output(KW) | KW | 45 |
Rated Input Curren(A) | A | 83 |
Output Noload Voltage(V) | V | 23±3 |
Output Current Range(A) | A | 50-1000 |
Rated Duty Cycle ( % ) | % | 100 |
Full - load Effciency ( % ) | % | 92 |
Power Factor(Full-load) | 0.88 | |
Gas Pre Time(S) | S | 0.1-15 |
Striking Current(A) | A | 50-160 |
Ramp Time(S) | S | 0.1-10 |
Decay Time (S) | S | 0.1-15 |
Endlction(A) | A | 50-160 |
Gas Delay Time(S) | S | 0.1-15 |
Weight(kg) | KG | 130 |
Size:LongxWidexHeight(mm) | MM | 820x530x1200 |
technical feature

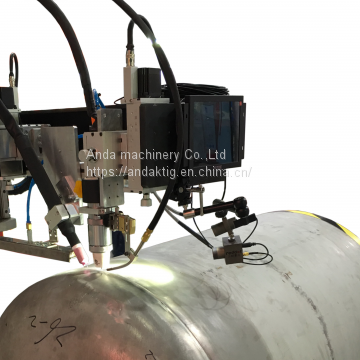

K-TIG welding machine is a new kind of high efficiency and energy saving inverter TIG welding machine which can realize stable automatic welding. Have the following advantages:
1、 Automatic welding process
2、 easy operation, worker can independent operate after 2 days training
3、 fast welding speed, 5 to 10 times faster than normal TIG/GTAW

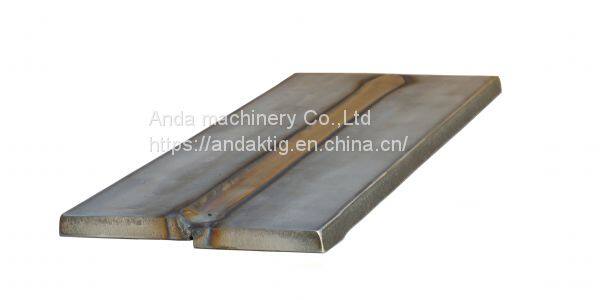

4、 Under certain thickness, the welding machine workpiece does not need to bevelling, one surface welding two surfaces forming, good welding seam, no need to back chipping
5、 The back weld width is 2 to 3 mm, the face weld width is usually about 1.5 times the thickness of the plate
6、 one surface welding two surfaces forming, no need to bevelling, can achieve convex weld without adding material, can cover both side
7、 strong error-tolerance, under certain thickness, the gap of the welding machine workpiece can reach to 2 mm
8、 Welding includes carbon alloy steel, stainless steel, titanium alloy, nickel-base alloy, cobalt alloy and zirconium, able to ensure exceptional welding speed and quality
9、 the best choice for thick plate welding, 12 mm thick carbon alloy steel plate, 13 mm thick stainless steel plate or nickel-base alloy plate and 16 mm thick titanium alloy plate, cobalt alloy plate or zirconium plate. More than these should open an "V" shape groove
10、 using pure argon to protect during the process
11、 high welding efficiency and low energy consumption
12、 low maintenance costs
