Home > Products > CORE COMPONENTS > Sensor Faucet Sensor Control

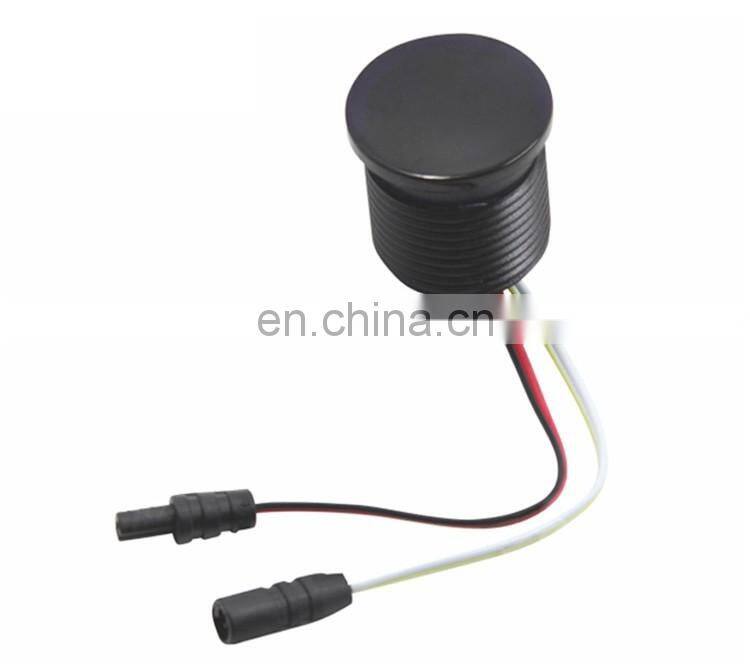

Sensor Faucet Sensor Control
- 80000 Piece / Pieces per Month
- Ningbo
- T/T Credit Card
Product Details
| Brand Name: | Geagle | Place of Origin: | Zhejiang, China | Model Number: | ZY-120D |
| Material: | Brass | Application: | General | Structure: | Shutoff |
| Standard or Nonstandard: | Standard | Pressure: | Medium Pressure | Power: | Solenoid |
| Port Size: | 1/2" | Media: | Water | Temperature of Media: | Normal Temperature |
Product Description
| Rated voltage | d.c 6v |
| Coil resistance | 12Ω±0.5Ω(20ºC temperature) |
| Open and close way | DCimpulse |
| Impulse width | 10ms-30ms |
| Working pressure | 0.05Mpa~0.8Mpa |
| Medium temperature | 0.1~60 centigrade (set according to user's requirement) |
| Reacting time | open<0.15s close<0.5s |
| Electric strength | between conductor and nonconductor |
| Flow capability | 0.05Mpa>5L/min 0.3Mpa>20L/min 0.8Mpa>28L/min |
| Working life | more than 500.000 cycles |
| Insulation capability | over 100M between conductor and nonconductor |
Four Core Technologies Of Intelligent Sanitary Ware
Q: Are you one factory or one trading company?
A:Factory
Q:How about the area of your factory?
A: over 5,000 square meters
Q:How many skilled workers do you have ?
A:80- 100
Q:What about your advantage?
A:15-year experience in devotion to intelligent sanitary wares only Strong R&D team, self-designed and self-developed 4 different kinds of core components Quality control exactly and strictly conforms to ISO9001 standard
Q: What kind of certificates to you have ?
A: ISO9001:2000, CE, ROHS, Letter of Patent.
Q: How about your delivery time?
A: In stock: 7-10 days after down payment; Out of stock: Normally 30-45 days
Q: Do you accept OEM/ODM?
A: Yes
Q: How about your Payment Terms?
A: T/T, L/C, Western Union, PayPal etc
