waterjet glass metal stone cutting machine /muiti-function waterjet

FOB Price

USD $35,000 - $60,000 / Set

100 Sets(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Dalian
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	apw	Place of Origin:	Liaoning, China	Model Number:	Apw41037Z-A16
After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

waterjet glass metal stone cutting machine /muiti-function waterjet

Product Description

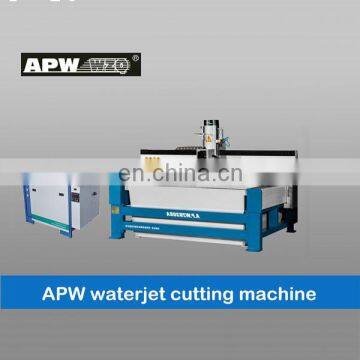

APW Manufacturing Machine is composed of 4 parts, intensifier pump,waterjet cutting table, auto abrasive feeding system and CNC controller.

Technical Information - APW Waterjet System Components


APW41037Z-A16 Intensifier Pump
Max discharge of SERVO oil pump:			90L/min
Max water discharge:			3.7L/min
Max available orifice diameter:			0.33mm
Max pressure:			410Mpa
Continuous working pressure:			360 ~ 380MPa
Main motor power:			37KW(50HP)
Power supply:			380V/50HZ/3PH
Max.oil pressure:			20Mpa
Length/width/height:			1745/1045/1350
Weight:			1200kg
Specification


Intensifier		A&V(made in USA)
Main Motor		Siemens
Hydraulic Pump		Rexroth servo hydraulic pump
PLC		Omron
Heat Exchanger		Water/Oil panel cooler
Control System		LP/HP auto control
Temperature Display		Digital Temperature Display
Shock Absorber		Four corners of the motor
Directional Valve		Taiwan YUKEN
Accumulator Volume		1.2L
Low Pressure Filter		10um
Cutting Water Inlet Pressure		0.3Mpa
Cooling Water Inlet Pressure		0.3Mpa
High Pressure Outlet Connections		M16 x1.5
Oil level and oil temperature sensor		Standard Components

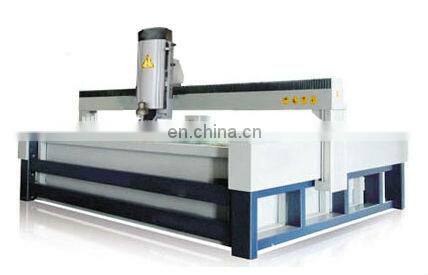

	APW1520BA Cutting Table
	Structural style			Bridge style
	X and Y axis Travel			1500mm×2000mm
	Z-axis Travel			150mm
	Control accuracy			±0.01mm
	Cutting accuracy			±0.1mm
	Servo motor specification			0.75KW 1.0KM 1.5KW
	X-axis and Y-axis Max. moving speed			6000mm/min
	Z-axis Max. moving speed			1000mm/min

	Specification
	Cutting Head			3-Axis
	Way of Drive			AC Servo
	Servo System			Yaskawa Servo Motor
	Linear guide			SKF (America)
	Ball Screw			Ipiranga (Spain)
	Nozzle and Orifice			America
	Environmental Temp.			2-40 °C
	Atmosphere Pressure			86Kpa~106Kpa
	Dust Concentration			Not More than 10mg/m3
	X, Y-Axis Structure			Aluminium Structure
	Water Tank			Coated Stainless Steel

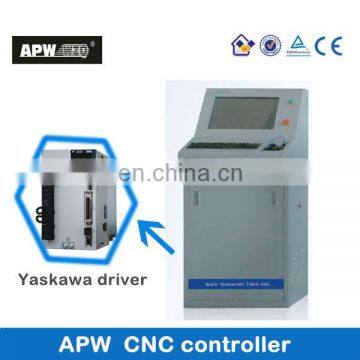

Main Characteristics of CNC System
EVOC Industrial PC
19 Inch LCD Monitor
Support DXF and NC code file
Forward and backward processing function
Even pace control function
Partial and smooth processing modes
Small arcs speed auto processing function
Circle processing function
Coordinate memory retention function
Double increase and decrease speed data function

Auto Abrasive Delivery System
Max. Inlet Air Pressure		0.6Mpa
Min. Inlet Air Pressure		0.2Mpa
Abrasive Capacity		225Kg
Min. Inlet Air Flow		0.028 m3/min
Operating Air Flow		0.005 m3/min
Self-feeding Control
Air Valve to prevent jams and breakages
Self sealing

Options
4-Axis Cutting Head		Cutting angle 0° - 4°
5-Axis Cutting Head		Cutting angle ±45°
Multiple Cutting Head
Multiple Beams
Auto Height Adjustment System

Company Information

Packaging & Shipping

FAQ

1. What are the benefits of purchasing a waterjet comparing CNC plasma or a laser ?

Versatility
Abrasive waterjet can cut almost anything – from metal to stone to glass to composites to ceramic.
Laser and plasma cut with heat, and so can only cut materials that have the right thermal properties. Metal is almost always the target material in industry for these heat-based processes. And mild steel is almost always the metal that is cut by them. In addition, plasma can only cut things that are electrically conductive. To optimize laser and plasma cutting, change to gasses is required. No change to waterjet parameters, except speed, is usually required for any material.
Thickness
Waterjet can cut very thin and up to 150mm (sometimes more) of any metal, glass, stone, composite, etc.
Laser cuts very thin and up to 20mm.
Plasma cuts from about 25mm up to 30mm.
Edge finish
Nothing cut by a plasma or laser will be as high of quality of an edge as a waterjet. We leave behind a smooth edge. No heat affected zones or mechanical stresses are introduced. The plasma and laser cut with heat (we cut with supersonic erosion). Plasma and laser therefore will leave behind a heat affected zones, mechanical stresses, and especially with plasma, dross 'drips' on the edge.

Please contact us for more information of our water jet cutting machine.

2. What kind of material does your machine can cut?

There are plenty materials our water jet machine can cut , such as metal stone glass foam plastic rubber, ect.
4-axis was professionally designed for mable pattern and medallion.
5-axis was professionally designed for 3D materials.

3. What's your machine's max.cutting thickness?

The max.cutting thickness of our waterjet depends on the materials you cut .
Generally speaking, the thickness of our water jet cutting machine can be up to 150mm, virtually Z constraint is the only limit to thickness.

More information about APW waterjet cutting machine price pls contact us at hotline: +86-024-24699053
