China Manufacturer! Gold supplier inflatable packer
USD $15 - $150
/ Meter
100 Meters(Min.Order)
- 2 Meter / Meters per Month
- Tianjin
- T/T Credit Card
You May Like
-
China Manufacturer! Gold supplier hole packer
-
Consolidation coal hole sealing device inflatable packer
-
Stainless Steel/PP/Nylon/Aluminum Camlock Coupling
-
High quality oil/chemicals delivery composite hose/Composite Hose
-
steam hose/steam flexible hose/high temperature high pressure steam rubber hose
-
excellent heat resistant/competitive price flexible high pressure hose
Product Details
| Brand Name: | HUAYU | Material: | High Manganese Steel | Certification: | API |
| Use: | Ore Mining |
Product Description

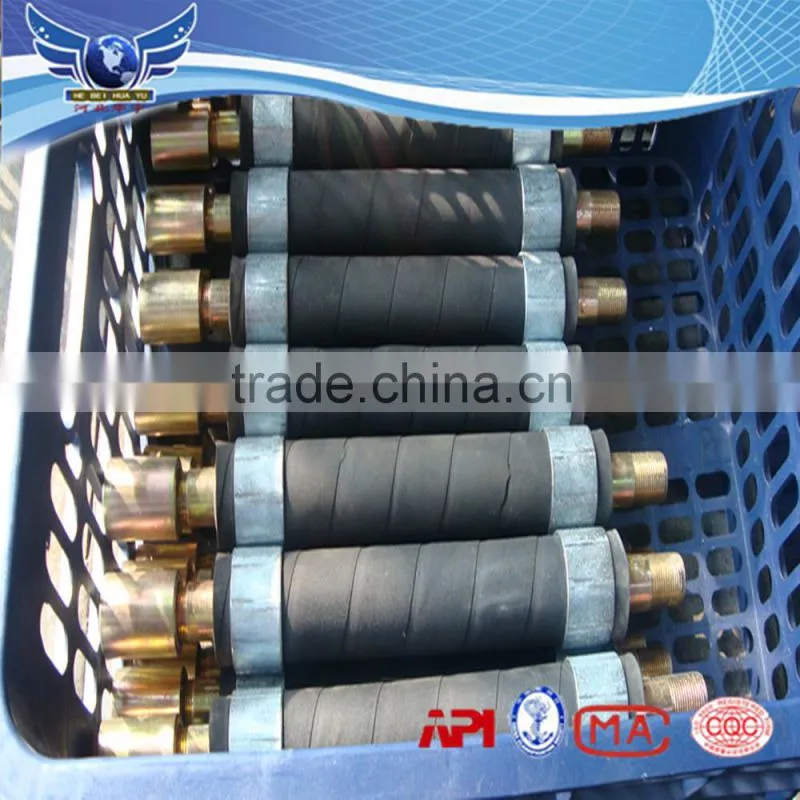

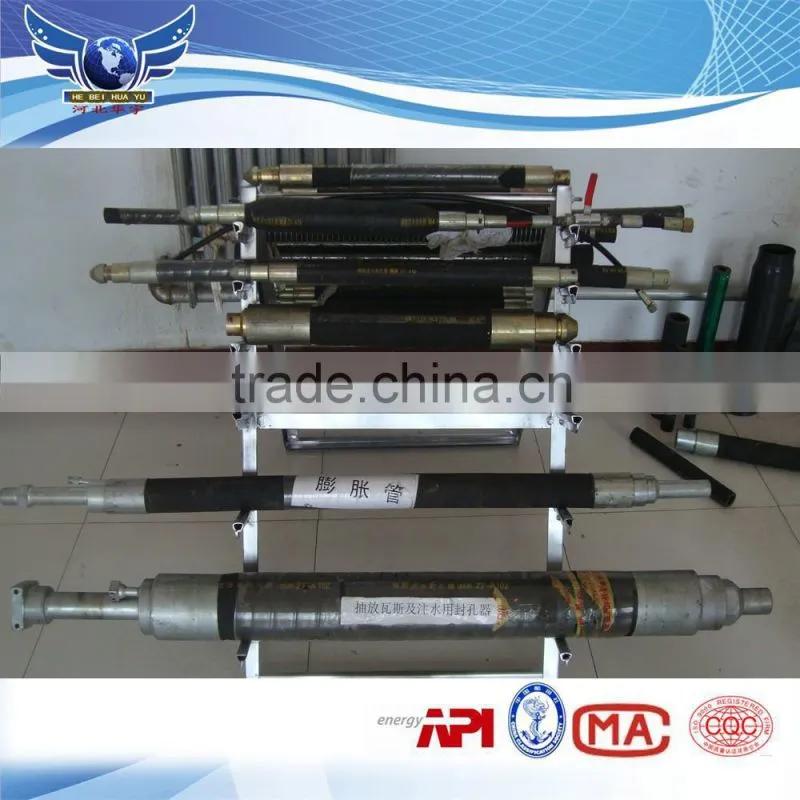

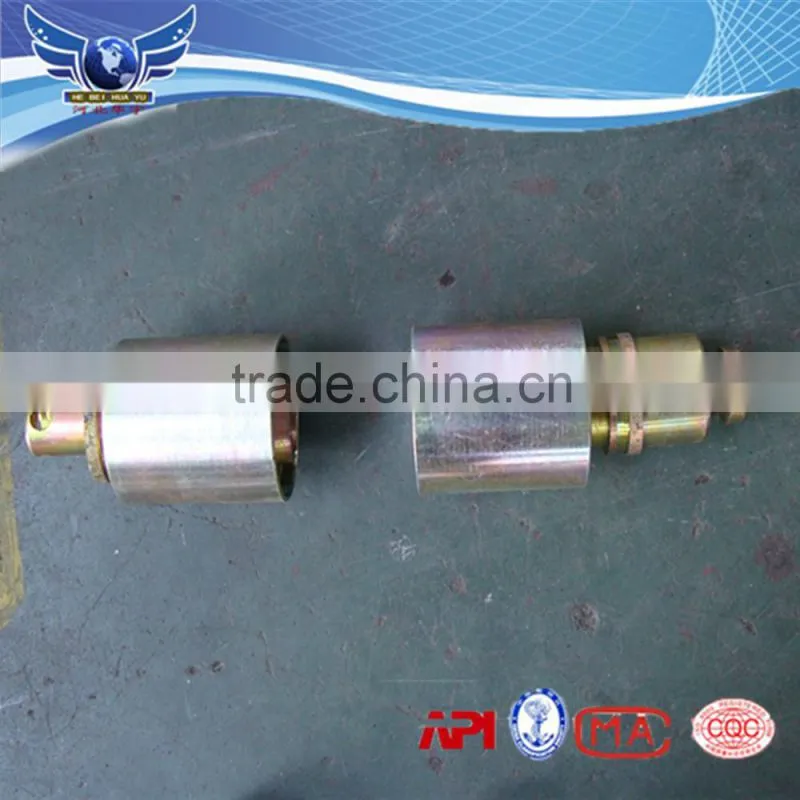

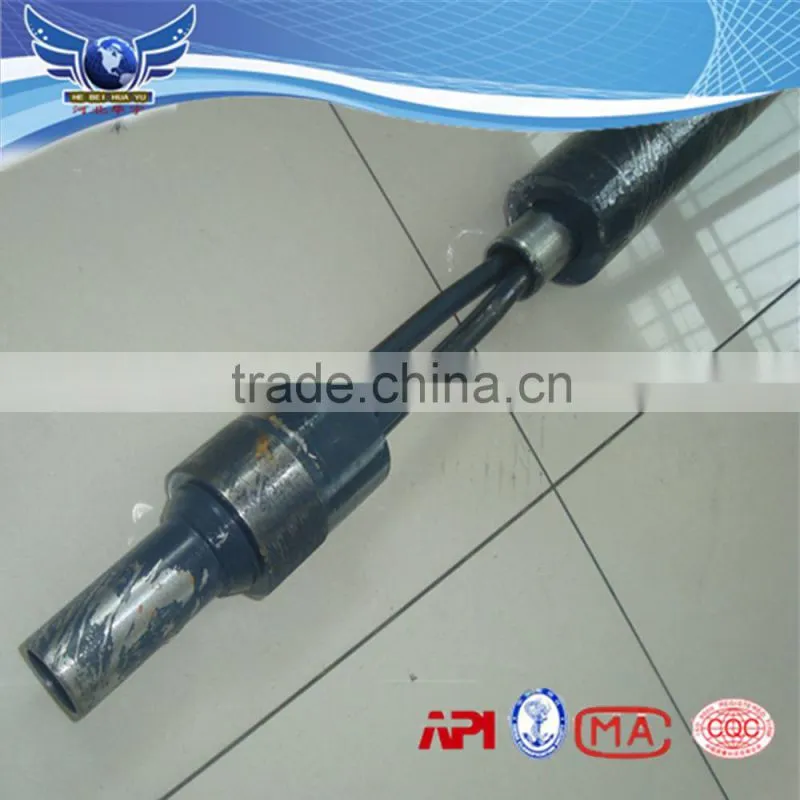

Product show
Some datas for your reference
| Specifications | ID mm | OD mm | Aperture mm | Expansion range mm | Mpa W.P | MPa | ||
| ≥ T.P | ≥ B.P | |||||||
| φ16-2 | 16±0.5 | 30±1.5 | 40 | 50 | +8 -2 | 8 | 16 | 32 |
| φ16-4 | 16±0.5 | 36±1.5 | 40 | 50 | +8 -2 | 20 | 30 | 40 |
| φ19-2 | 19±0.5 | 36±1.5 | 45 | 60 | +8 -2 | 8 | 16 | 32 |
| φ19-4 | 19±0.5 | 40±2.0 | 45 | 60 | +8 -2 | 20 | 30 | 40 |
| φ22-2 | 22±0.5 | 39±2.0 | 50 | 80 | +8 -4 | 6 | 12 | 24 |
| φ22-4 | 22±0.5 | 45±2.0 | 50 | 80 | +8 -4 | 20 | 30 | 40 |
| φ32-2 | 32±0.5 | 50±2.0 | 60 | 90 | +8 -4 | 6 | 12 | 24 |
| φ38-2 | 38±0.5 | 55±2.0 | 65 | 95 | +8 -4 | 5 | 10 | 20 |
| φ45-2 | 45±0.5 | 63±2.0 | 75 | 100 | +8 -4 | 4 | 8 | 16 |
| φ45-4 | 45±0.5 | 69±2.0 | 75 | 100 | +8 -4 | 16 | 24 | 32 |
| φ51-2 | 51±0.5 | 69±2.0 | 90 | 110 | +8 -4 | 4 | 8 | 16 |
| φ51-4 | 51±0.5 | 75±2.0 | 90 | 110 | +8 -4 | 16 | 24 | 32 |
| φ64-2 | 64±0.5 | 84±2.0 | 100 | 120 | +8 -4 | 3 | 6 | 12 |
| φ64-4 | 64±0.5 | 90±2.0 | 100 | 120 | +8 -4 | 8 | 12 | 16 |
| φ76-2 | 76±0.5 | 94±2.0 | 110 | 130 | +8 -5 | 3 | 6 | 12 |
| φ76-4 | 76±0.5 | 99±2.0 | 110 | 130 | +8 -5 | 8 | 12 | 16 |
| φ89-2 | 89±0.5 | 109±2.0 | 130 | 140 | +8 -5 | 3 | 6 | 12 |
| φ102-2 | 102±0.5 | 122±2.0 | 150 | 160 | +8 -5 | 3 | 6 | 12 |
More contact
| Company : | Hebei Huayu Special Rubber Co.,Ltd | |||||
| Contact person: | Cathy Zhu | |||||
| Telephone number: | 0086-18631813735 | |||||
| Skype: | cathyzcjw | |||||
