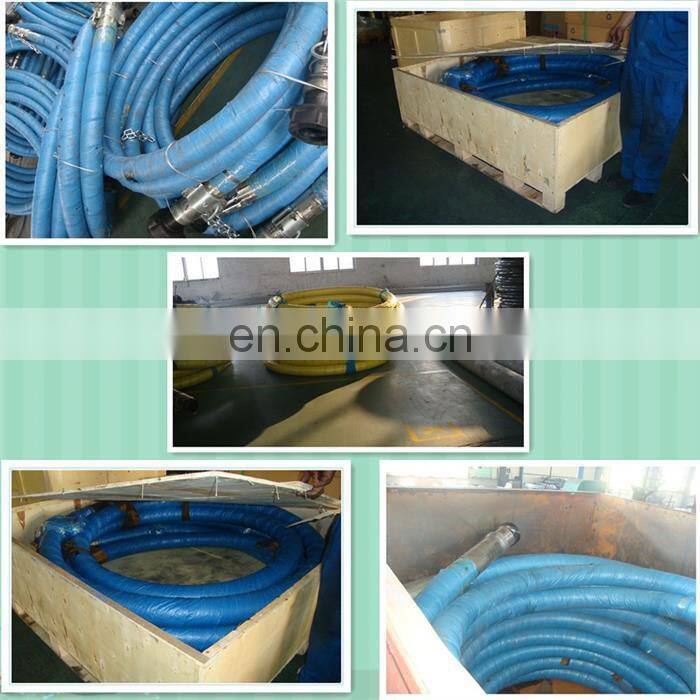

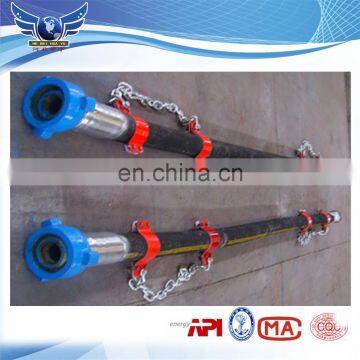

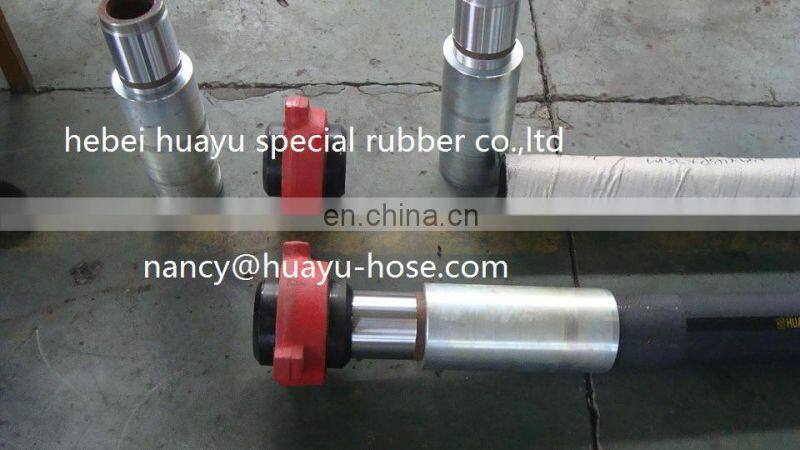

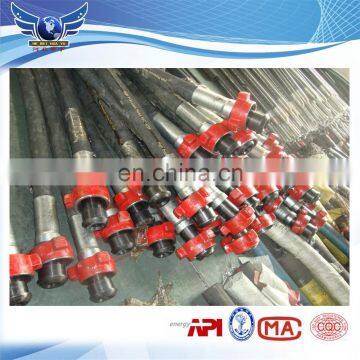

Driling hose (Rotary Driling/Vibrator hose)

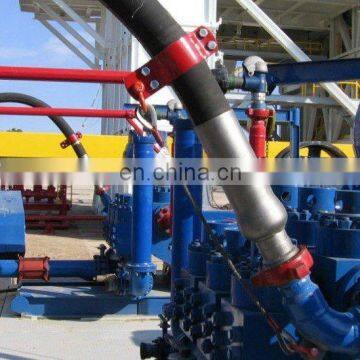

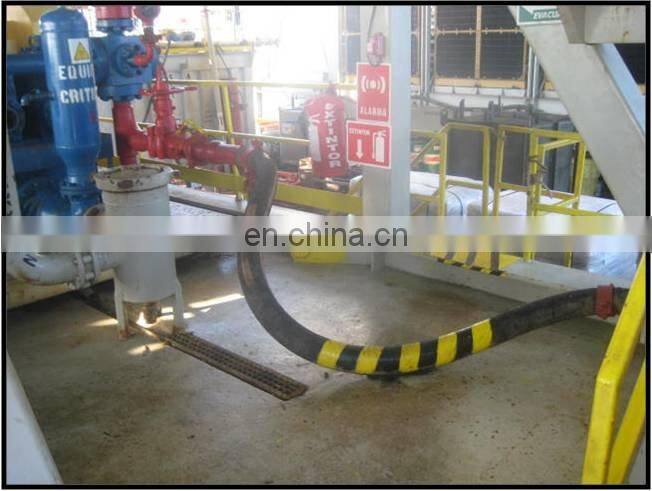

Application: Steel wire spiral driling rubber hoses are used in oil fields, well cementing,well repairing,geological explorations, small driling machine ,and water conveyance at coal excavations. They are useful to carry slurry, water at envionmental temperature ,and other fluids.
Construction:It is composed of an inner rubber protection layer, middle rubber layer ,steel wire spiral layer and external rubber cover.
Working Temperature : From -40℃ up to +100℃
Executive Standard:GB10544-2003,API Spec 7K ,SY 5469
| Inside Diameter | Outside Diameter | Working Pressure | Proof Pressure | Weight | Min.Bend Radius | |
A | in | mm | mm | MPa(ps) | MPa(ps) | kg/m | mm |
1 1/2 | 38 | 51 | 11(1500) | 22(3000) | 2.19 | 560 | |
2 | 51 | 65 | 11(1500) | 22(3000) | 3.03 | 900 | |
2 1/2 | 64 | 78 | 11(1500) | 22(3000) | 3.95 | 1200 | |
B | 1 1/2 | 38 | 52 | 14(2000) | 28(4000) | 2.39 | 560 |
2 | 51 | 66 | 14(2000) | 28(4000) | 3.25 | 900 | |
2 12 | 64 | 79 | 14(2000) | 28(4000) | 4.37 | 1200 | |
3 | 76 | 98 | 14(2000) | 28(4000) | 7.76 | 1200 | |
3 1/2 | 89 | 113 | 14(2000) | 28(4000) | 9.95 | 1300 | |
4 | 102 | 127 | 14(2000) | 28(4000) | 12.43 | 1400 | |
5 | 127 | 153 | 14(2000) | 28(4000) | 15.25 | 1500 | |
6 | 152 | 178 | 14(2000) | 28(4000) | 18.71 | 1600 | |
C | 1 1/2 | 38 | 55 | 28(4000) | 56(8000) | 3.65 | 560 |
2 | 51 | 69 | 28(4000) | 56(8000) | 5.15 | 900 | |
2 1/2 | 64 | 88 | 28(4000) | 56{8000) | 7.86 | 1200 | |
3 | 76 | 105 | 28(4000) | 56(8000) | 13.12 | 1200 | |
3 1/2 | 89 | 121 | 28(4000) | 56(8000) | 16.79 | 1300 | |
4 | 102 | 137 | 28400O) | 56(8000) | 21.70 | 1400 | |
5 | 127 | 164 | 28<4000) | 56(8000) | 28.46 | 1500 | |
6 | 152 | 197 | 28(4000) | 56(8000) | 44.64 | 1600 | |
D | 2 | 51 | 73 | 25(5000) | 70(10000) | 6.46 | 900 |
2 1/2 | 64 | 91 | 35(5000) | 70(10000) | 10.75 | 1200 | |
3 | 76 | 107 | 35(5000) | 70(10000) | 14.35 | 1200 | |
3 1/2 | 89 | 123 | 35(5000) | 70(10000) | 18.77 | 1300 | |
4 | 102 | 139 | 35(5000) | 70(10000) | 23.16 | 1400 | |
5 | 127 | 171 | 35(5000) | 70(10000) | 38.00 | 1500 | |
6 | 152 | 200 | 35(5000) | 70(10000) | 48.43 | 1600 | |
E | 2 | 51 | 80 | 52(7500) | 104(15000) | 10.37 | 1000 |
2 1/2 | 64 | 101 | 52(7500) | 104(15000) | 17.88 | 1200 | |
3 | 76 | 120 | 52(7500) | 104(15000) | 24.45 | 1200 | |
3 1/2 | 89 | 135 | 52(7500) | 104(15000) | 29.33 | 1300 | |
4 | 102 | 148 | 52(7500) | 104(15000) | 34.24 | 1400 | |
5 | 127 | 189 | 52(7500) | 104(15000) | 55.39 | 1500 | |
F | 2 | 51 | 82 | 70(10000) | 105(15000) | 1 1.81 | 1OOO |
2 1/2 | 64 | 104 | 70(10000) | 105(15000) | 20.46 | 1300 | |
3 | 76 | 129 | 70(10000) | 105(15000) | 32.74 | 1300 | |
3 1/2 | 89 | 144 | 70(10000) | 105(15000) | 39.43 | 1400 | |
4 | 102 | 158 | 70(10000) | 105(15000) | 45.73 | 1500 | |
Level | 2 | 51 | 92 | 105(15000) | 157(22500) | 17.37 | 1000 |
