2Tons 4WD Mini Tough rider for sale
- 500 Piece / Pieces per Month
- Qingdao Port China
- T/T Credit Card
- 2Tons 4WD Site dump truck

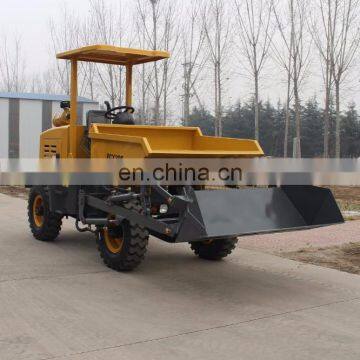

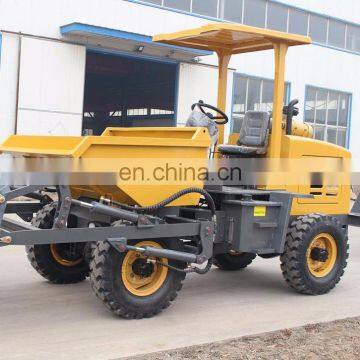

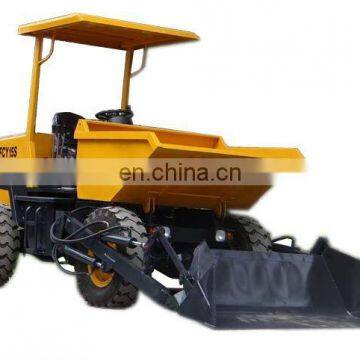

- mini dumper FCY15S self loading front dump truck
- China 2 Ton 4x4 diesel hydraulic mini Site Dumper truck
- 1-10T payload 4x4 Diesel type off road mini site dumper truck
- China Map FCY30 3ton 4x4 diesel mini swivel site dumper truck tipper
- China Map 2T FCY20 4x4 diesel Mini site dumper truck tipper lorry
Product Details
Brand Name: | MAP | Place of Origin: | Shandong, China | Model Number: | FCY20 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

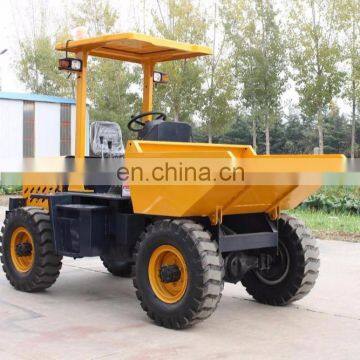

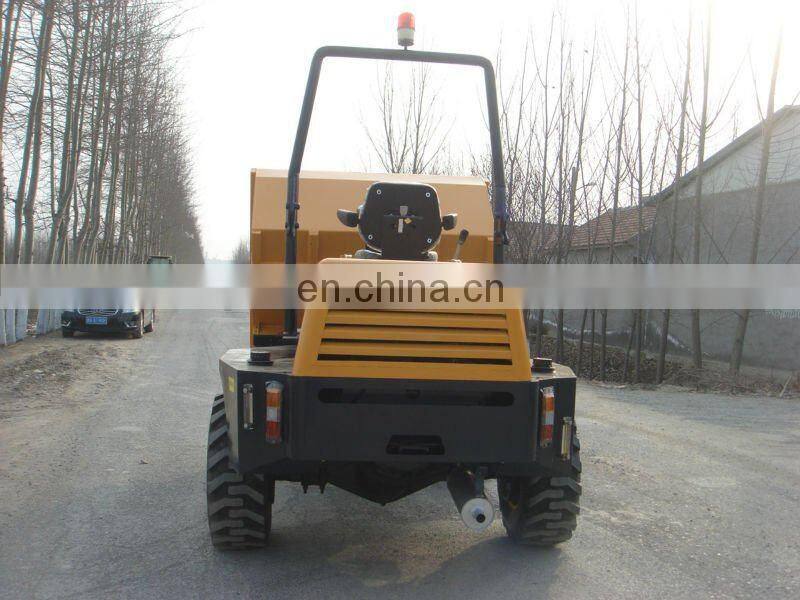

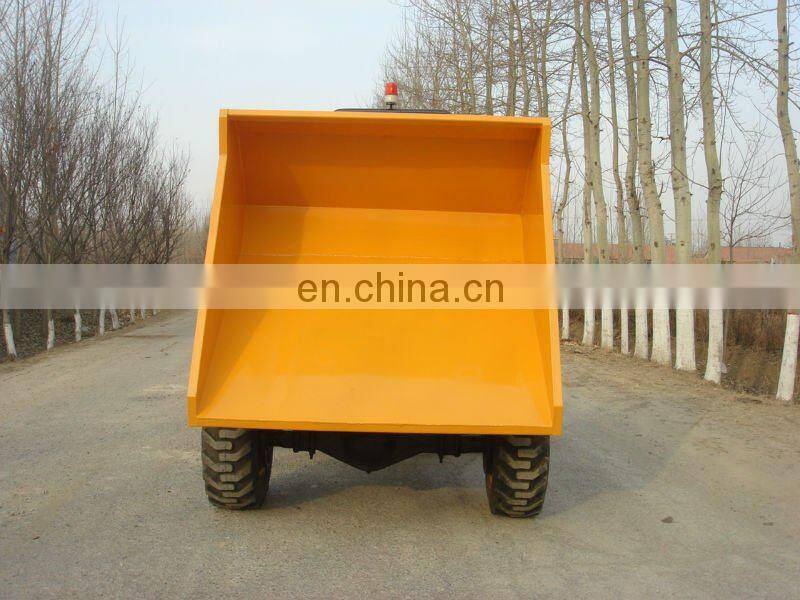

Mini tough rider 2 ton
Model:FCY-20
Main SPECIFICATIONS
Model | FCY20 |
Rated Loading Weight | 2000KG |
Bucket capacity | 1.0m3 |
Wheel base | 1240mm |
Thread | 2080mm |
Max speed | 25KM/H |
Mini ground clerance | 248MM |
Hydraulic pressure | 16MPA |
Mini turning radicus | 4000mm |
Greadability | 21 |
Engine model | KM385 |
Engine type | 3 cylinders |
Cooler type | water |
Stroke | 4 stroke |
Rated power | 20KW/2200RPM |
Tire size | 825-16 |
Overall dimensions | 3017x1900x2465mm |
Drive System:
Clutch type:double disck,dry disck
Disc diamtere:180mm
Gear box and mechanical shift
Gear Ratio:I=6.4 II:3.09 III:1.69 IV:7.82
Drive Shaft type:Tubular type open type
Driving axle:main drive type:single stage hyperbolical bevel gear drive.
Frame:Channel steel welding type,two section articulated connection
Swing Axle:steel sheet welding type
Brake system:service brake( foot brake) hydraulic shoe four wheel brake
Parking brake: hand brake
Hydraulic pump :Gear pump:CBFC-50 Right Hand
Steering Gera type :BZZ5-160
Battery:24V
Fuel tank:52L
Water tank:10.5L
Engine:3.5L
Gear box:3.2L
Hydraulic oil tank :50L
