sheet metal roll forming machine
- 50 Set / Sets per Month
- Tianjin
- L/C D/P D/A Credit Card Cash
- 30 days
You May Like
-
DX-1050 mm trapezoidal roofing sheet forming machine
-
High quality trapezoidal metal roll forming machine,steel sheet making machine
-
color steel glazed tile making machine/glaze tile metal roof roll forming machine
-
Steel Tile Making Machinery For Colored Glazed Steel Roofing Sheet
-
Glazed Steel Tile Roof Panel Roll Forming Machine
-
aluminium trapezoidal steel roofing sheet making machine
Product Details
| Brand Name | DIXIN | Place of Origin | China | |
| Model Number | roof tile making machine | Use | Roof | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 12 Months | Weight | 4 ton | |
| Dimension(L*W*H) | 6500*1300*1100 | Production Capacity | 10-15m/min | |
| Condition | New | Voltage | 380V 50Hz 3phases or custome | |
| Power(W) | 4+4KW | Type | Tile Forming Machine | |
| Tile Type | Steel |
Product Description
sheet metal roll forming machine
Our new factory have 20 years' experience, ISO, CE certificated, we always keep superior quality and competitive offers for customers. Our machines are sold to the USA market, and feedback very well. Our main products cover corrugated tile roll forming machine, trapezoidal panel roll forming machine,glazed roofing roll forming machine, C purlin roll forming machine, roll shutter door roll forming machine and so on.
3.Technical parameters
| 1 | suitable material | Colored Steel plate, galvanized board, Aluminum plate |
| 2 | Input width | 1000mm |
| 2 | Effective width of sheet | 840mm |
| 3 | Rows of rollers | 13rows |
| 4 | material of roller | high grade 45# steel(plated chrome on surface) |
| 5 | Total power Main motor power: 4kw Hydraulic station power: 4kw | 4kw+4kw |
| 6 | Thickness of raw material | 0.3-0.8mm |
| 7 | Productivity | 10-12m/min |
| 8 | diameter of shaft | 75mm |
| 9 | Voltage | 380V 50Hz 3phases or according to customer's request |
| 10 | Main frame | 300 H steel |
| 11 | Medium plate thickness | 16 mm |
4.Payment term
TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video
5.Warranty
12 months, and lifelong technical support service
6.Installation
If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 80 USD/day for salary.
7. Package
Standard export package, water-proof package, covered with plastic film.

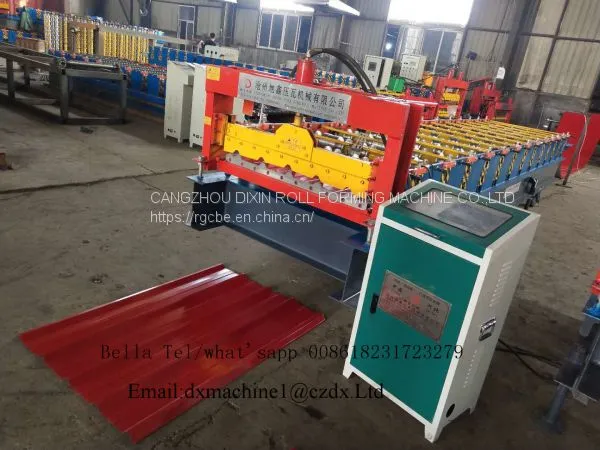

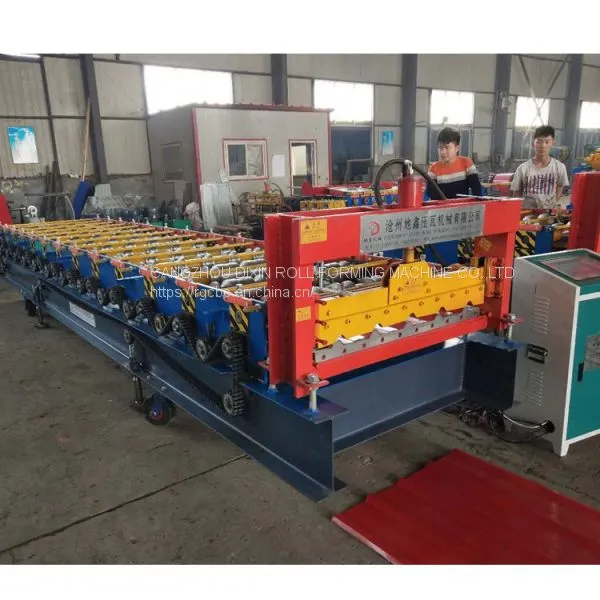

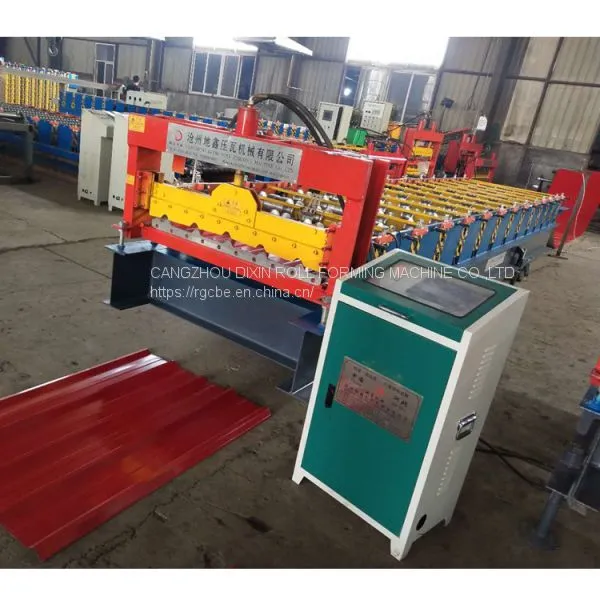

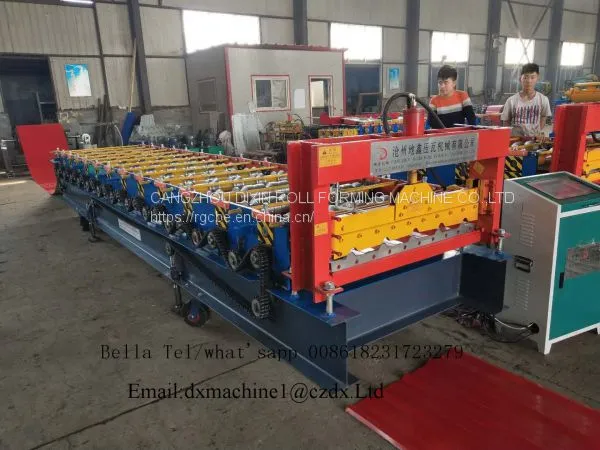

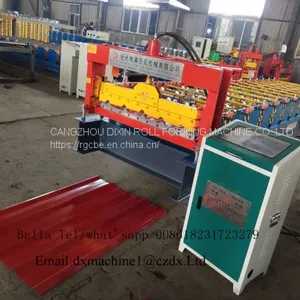

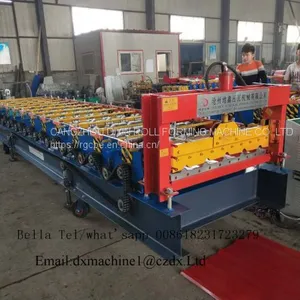

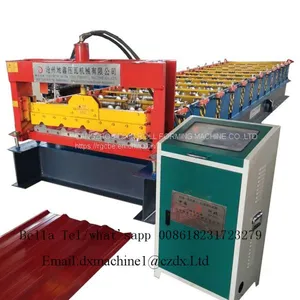

8.Some pictures of the machine for your reference.
If you want to know more details of the machine,please contact us.
Contact: Bella Skype:andylidx Whatsapp: +8618231723279
Our official website:
welcome you visit our factory.
