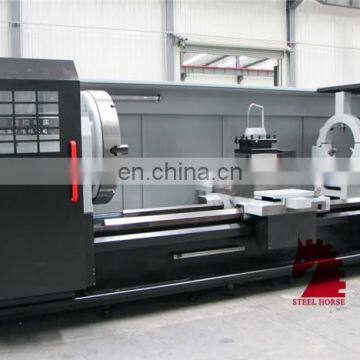

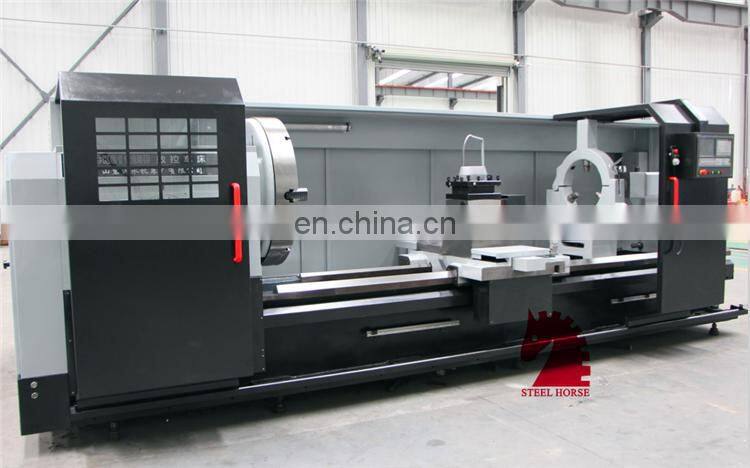

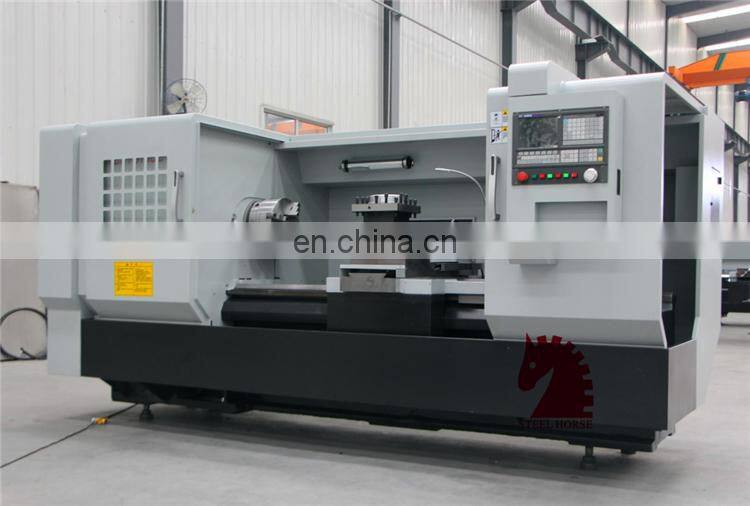

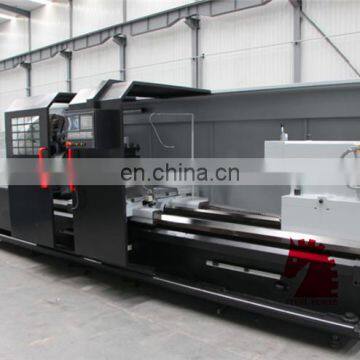

Large CK61160 CK61180 Heavy Duty CNC Lathe Machine

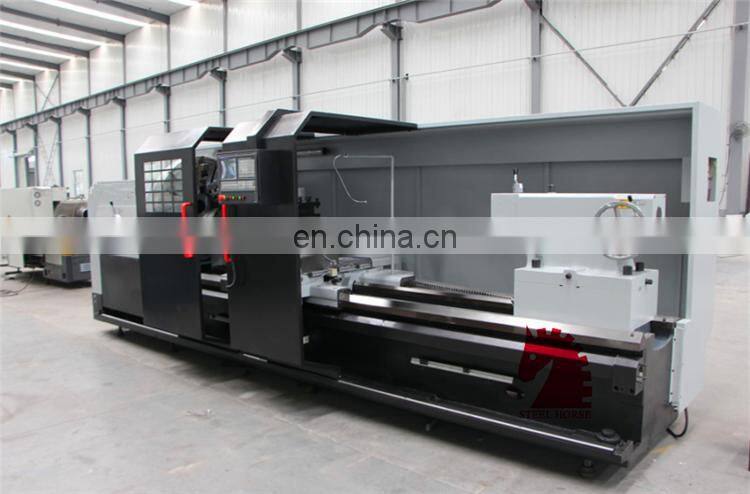

large CK61160 CK61180 heavy duty CNC lathe machine

Details:

·  This machine was designed for use in demanding petroleum industry applications and integrates decades of experience

·  The wide machine bed features large, hardened and ground guideways and high rigidity

·  Machining lengths up to 3000 mm - expandable to 16000 mm upon request

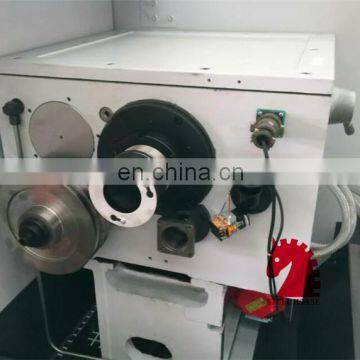

·  Massive headstock with main spindle running in tapered roller bearings, and 2 lathe chuck mounts

·  Spindle bore 360 mm (standard) - Up to 630 mm through-bore upon request

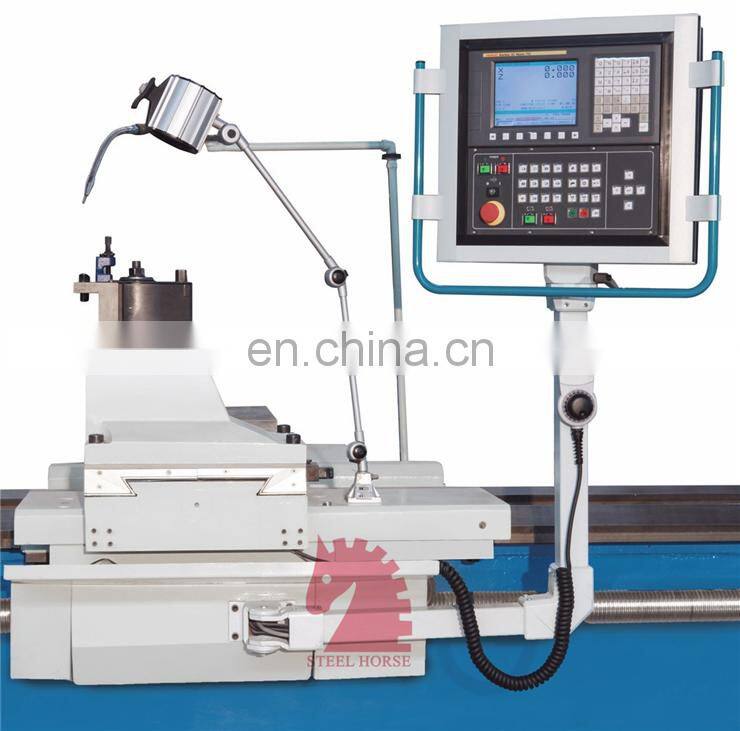

·  Fanuc 0i-TF-V with Manual Guide 0i features advanced control technology and maximum reliability

·  high-torque drives and preloaded ball screws on all axes

·  Automatic 2-step gears with 2 infinitely variable speed ranges

·  Hardened and ground gears for effective power transmission

·  Powerful main drive motor with 30 kW rating

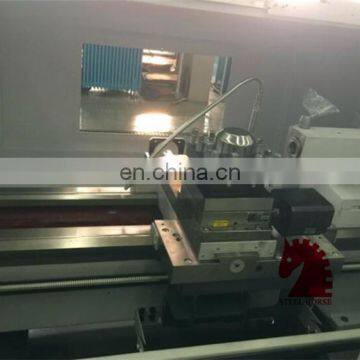

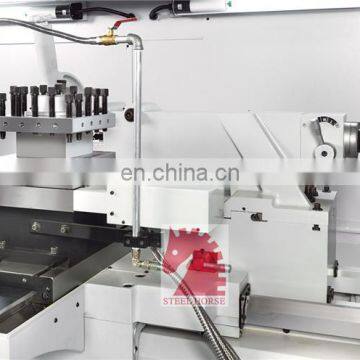

·  Heavy-duty 4-station tool holder with automatic tool changing function

·  Including high-performance coolant system, and central lubrication unit

·  plus free 1-day training in Wasbek

Technical Data:

Control:

Fanuc 0i-TF V mit Manual Guide 0i

· Easy programming and operation, short learning curve

· User-friendly graphics display for visual verification of parts programs

· Use of existing programs without reprogramming requirements

· High-speed machining and standard nano-interpolation

· Fixed cycles and custom macro B for simplified parts programming

· State-of-the-Art functionality, like jerk limitation, nano smoothing, and Al Contour Control ll - compatibile with previous version series 0 and series 0i models A, B, C and D

· Series 0i Model F are the successor models of the Series 0 and Series 0i, which are the most popular CNC controls worldwide with over 700,000 installations.

· Mit bis zu 4 simultan gesteuerten Achsen besitzt die CNC Serie 0i die besten Voraussetzungen für die Steuerung anspruchsvoller Werkzeugmaschinen.

Standard Equipment:

Fanuc 0i-TF V with Manual Guide 0i,electronic hand-wheel,two 4-jaw faceplate lathe chucks 800 mm Ø,

automatic 2-step gears,4-station tool holder,steady rest 50-470 mm,coolant system,central lubrication,

mechanical tailstock,work lamp,operating tools,operating manual and programming instructions.
