Home > Products > CNC Lathe Machine > CK6432 New Chinese turning lathe machine price

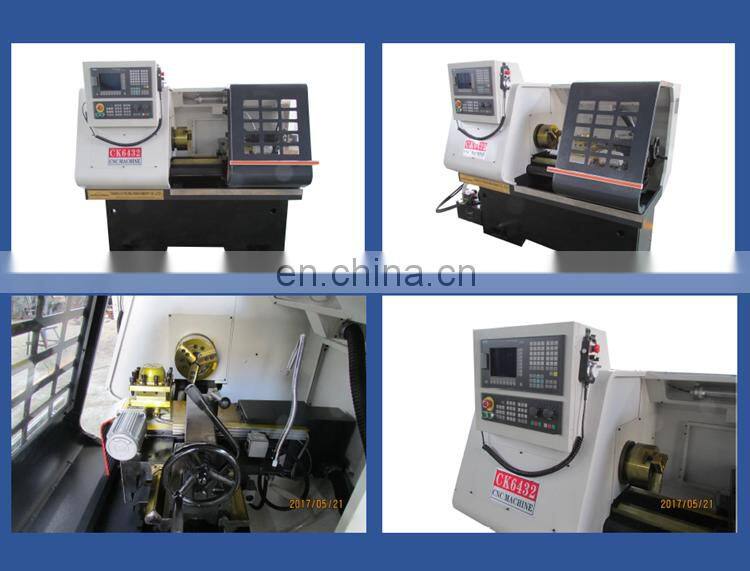

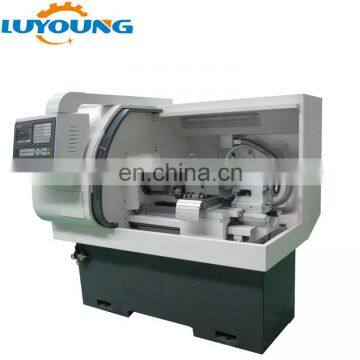

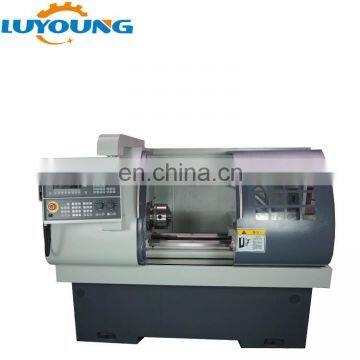

CK6432 New Chinese turning lathe machine price
- 60 Set / Sets per Month
- Qingdao or shanghai port
- T/T Credit Card
- CK0640 Mini lathe metal machine for sale in the philippines
- CK0640 Cheap Small Automatic CNC lathe machine
- CK6130 China small bench cnc lathe machine siemens system for metal
- CK6136 Price Specification of hobby metal CNC lathe machine
- CK6132 Small cheap automatic fanuc cnc new lathe for sale
- CK0640 Chinese precision mini cnc table lathe 400 watt
Product Details
Brand Name: | Lu Young | Place of Origin: | Shandong, China | Model Number: | CK6432A |
After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Product Description
CK6432 New Chinese turning lathe machine price
CK6432 New Chinese turning lathe machine price
CK6432 New Chinese turning lathe machine price | |||
Item | CK6432 | ||
Max. swing dia. over bed | 360mm | ||
Max. swing dia. over cross slide | 150mm | ||
Max. processing length(mm) | 450 | 700 | |
Dia. of spindle hole | 60mm | ||
Spindle speed | 150-2500rpm | ||
spindle taper | MT6 | ||

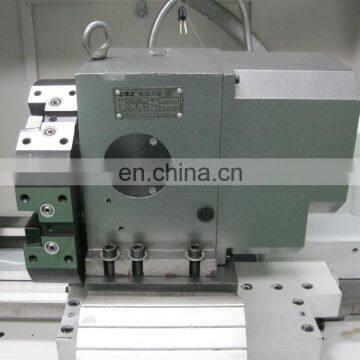

Tool holder | 4 station electric tool post(optional 6/8staion electric turret) | ||
Tool bar section | 20x20 | ||
Main motor power | 4kw | ||
X/Z axis fast feeding speed | 8/10 m/min | ||
X/Z axis position accuracy(mm) | 0.01/0.015 | ||
X/Z-axis repeatability(mm) | 0.012/0.013 | ||
Clamping | 3 Jaw Manual Chuck(optional pnematic or hydraulic chuck) | ||
Tailstock sleeve dia. | 60 | ||
Tailstock sleeve travel | 100mm | ||
Tailstock taper | MT4 | ||
Dimension | 1660X1400x1700 | ||
1940x1400x1700 | |||
Weight(kg) | 1250 |
| |
Standard configuration: | Optinal configuration: |
| |
GSK928 CNC Controller | Siemens,Fanuc cnc controller system | ||
Servo motor for X,Z axis, Servo driven | pneumatic chuck,hydraulic chuck | ||
3 Jaw Manual Chuck | pneumatic tailstock,hydraulic tailstock | ||
4 station electric tool post | 6 staion tool turret,8staiton tool turret | ||
Auto lubrication system | Auto feeder system | ||
lighting system | Chip conveyor | ||
cooling system |
| ||
|
1.Superaudio quenching guide rail with excellent wear resistance and durable service life
2.Three-jaw chuck and hydraulic chuck optional
3.Automatic lubrication system:Minimize the damage to machine and lengthen the service life.
4.removable lathe shield ,secure user’s safe and operation convenience .
- Packaging : Standard sea worthy wooden case .
- Shipment : within 15 days after payment .
Taian Luyoung Machinery is located in Shandong province , which is the region of world famous mountain Tai and one of the cradeland of Chinese culture. Luyoung is a long-standing company who have engaged in the line of manufacturing and trading CNC machines for more than 20 years ,and enjoy high reputation from customers who come from more than 40 countries.Our prodct contains:CNC lathe machine , CNC milling machine,CNC machine center , CNC Swiss type lathe .
With mission “ credit is the basic , quality is the first ” , we can ensure the prime quality and the most impressive price in the industry,and we are going further and further on pursuing high standard and high satisfaction .
1. Customized service:Just tell us your needs about our service or the goods.
2. 7*24hours service:We’d love to offer help anytime,be free to contact us please.
3. Customer visiting & Free training :Welcome to China and visit our workshop and products
4. After sales service: We supply replacement parts for free if the machine is proved defective within 12 months .While the guarantee period of computer range from 1-3years.according the brand.
- What if I have problem with using mahine ?
(1)Every machine would be equiped with a manual operation.
(2)Free training is available .
(3)Be free to call or E-mail us anytime ,we're ready to offer help in 7*24 hours .
- About payment .
We accept L/C,T/T,D/A,D/P ,and 30% deposit advanced by T/T ,the balance should be paid before the shipment.
- About delivery .
Generally,we can deliver the goods within 30 days .
- How can I get the quotation ?
You can contact us by phone or e-mail on my name card below.Send us your requirments ,the best offer would be provided soon.
- I don't know how to choose the right model?
Send us the workpiece ,we'll help you to choose the right one.
