Product Details
Brand Name: | Lu Young | Place of Origin: | Shandong, China | After-sales Service Provided: | Overseas third-party support available |
Condition: | New |
Product Description

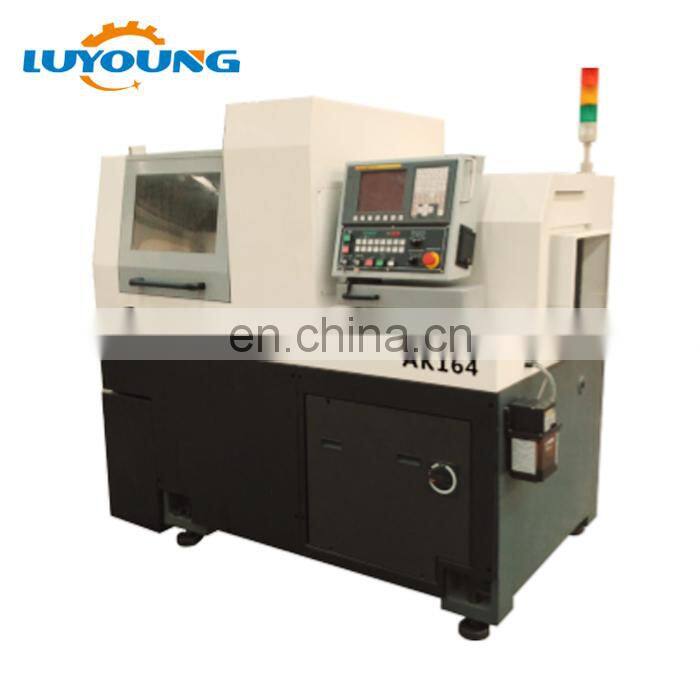

AK164 Swiss type lathe machine with processing
describe | unit | specifications | |||
Processing capacity | Max maching diameter | mm | 16 | ||
Stroke | mm | 150 | |||
Main Spindle RPM | rpm | 8000 | |||
Sub Spindle RPM | rpm | 8000 | |||
Cross Driven Tools RPM | rpm | 6000 | |||
Cs Additional Positive Brake | 1/1000(0.001) | ||||
Rapid Traverse Rate | X1 axis | m/min | 24 | ||
Y/Z1/Z2 axis | m/min | 24 | |||
Arrangement of tools | O.D Tools | ea | 6 | ||
Front Work Tools | ea | 3 | |||
Cross Driven Tools | ea | 3 | |||
O.D Tools specification | mm | 12×12 | |||
Front Work Tools diameter | mm | 25 | |||
Power Tool Chuck Specifications | mm | E6 | |||
Spindle motor | kw | 3.7/5.5 | |||
Motors | Sub Spindle motor | kw | 0.55/1.1 | ||
Servo axis motor | kw | 0.75 | |||
Cross Driven Tools motor | kw | 0.55 | |||
Lubrication pump motor | w | 5 | |||
Coolant motor | kw | 0.25 | |||
Others | Coolant tank capacity | L | 180 | ||
Lubrication tank capacity | L | 1.8 | |||
Height from floor tospindle center | mm | 1050 | |||
(L) | mm | 1950 | |||
Floor space | (W) | mm | 1334 | ||
(H) | mm | 1680 | |||
Mass of machine | kg | 3000 | |||
CNC control unit | FANUC 0i- TD |
The Swiss type lathe machine with processing technology of the AK164 numerically-controlled longitudinal cutting lathe originates from Switzerland, which is famous for its precision machine tools.It is an integrated product, especially suitable for precision and efficient machining of slender shaft parts.Due to high speed precision synchronous guide sleeve, can of cold drawn rod and polished bar on the continuous, automatic cycle of blanking processing, capable to cylindrical shaft parts, drilling, boring, cutting the endface, thread, slot, cutting, such as tapping process.

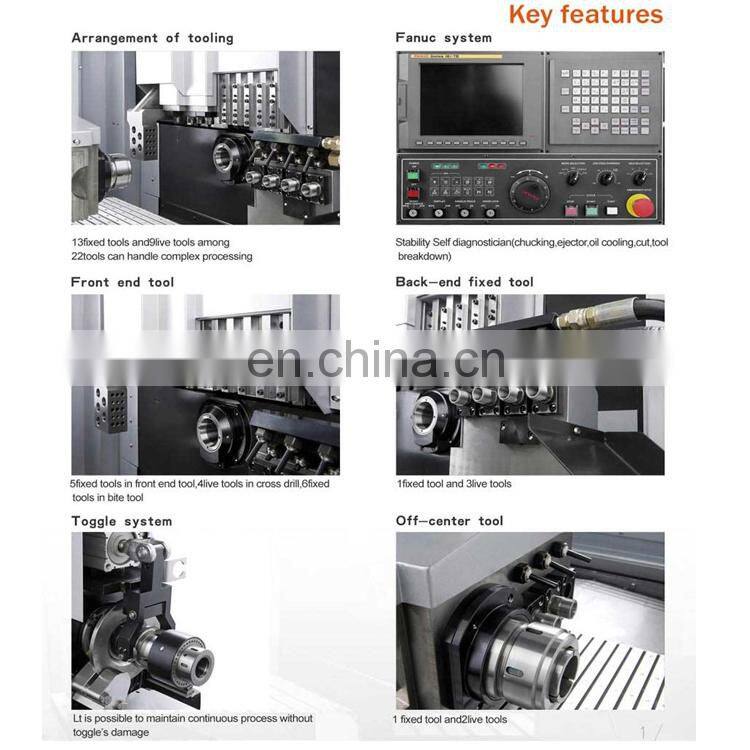

1.AK164 Swiss type lathe machine with processing Arrangement of tooling:13 fixed tools and 9 live tools among 22 tools can handle complex processing.
2.Fanuc system: Stability self diagnostician(chucking,ejector, oil cooling,cut, tool breakdown).

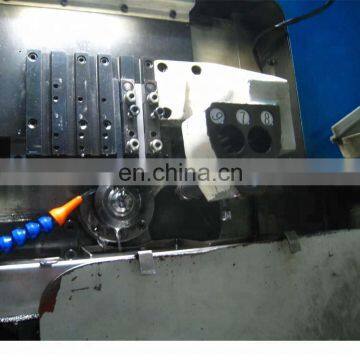

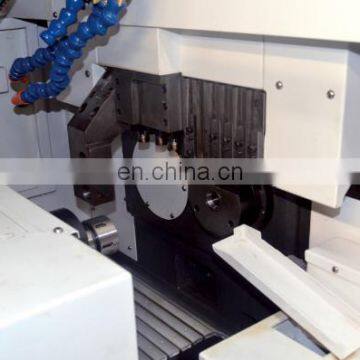

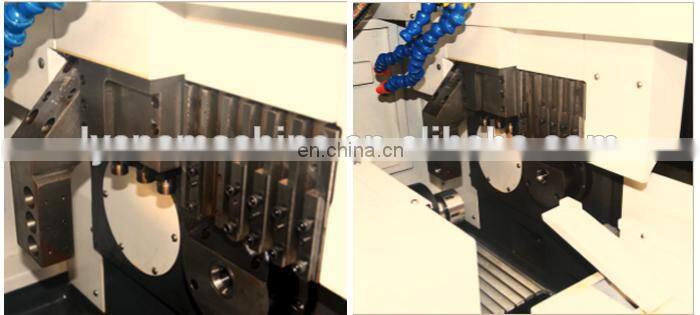

3.Front end tool:5 fixed tools in front end tool, 4 live tools in cross drill,6 fixed tools in bite tool.
4.Back-end fixed tool:1 fixed tool and 3 live tools.
5. AK164 Company high precision Toggle system: Lt is possible to maintain continuous process without toggle’s damage.
6.Swiss type machine Off-center tool:1 fixed tool and 2 live tools,finished parts by our machine tools
Luyang CNC machinery company has 20 years of production lathe experience, main CNC lathe, CNC milling machine, processing center, Swiss CNC lathe high-tech enterprise.The company has a professional production and development team and favorable after-sales technical team support.The company takes the strength to make the product, the service wins the customer, the customer as the basic management concept.Our company has gained a good reputation both at home and abroad by providing customers with cost-effective CNC machine tools and excellent timely sales advice and after-sales service.Development, innovation, people-oriented, is the direction my company has been working on.
Our company continuously strengthen product performance improvements, innovation cost-effective CNC machinery, optimize product quality control system, to provide global support services as the dominant direction of the development of the company.
1. We use the special plywood box for export, and our products are shipped by sea.
2. We can guarantee the quality of the goods, while also reducing the loss, with environmental protection, good resistance and good barrier
After-sales service
1. The warranty period of our products is one year. If there is any damage in the warranty period, we will send it to you for free.We provide 24-hour online technical service and contact us at any time.
2. 365 days without false service, uninterrupted supply, pre-sales consultation, after-sales service and other technical support
We also offer free technical training and overseas services.
1. Our customers come from more than 40 different countries and promote the most suitable products for different countries to provide the best service;
2 we participated in many exhibitions, the Chinese machinery exhibition, guangzhou commodities fair, through the exhibition to expand overseas market, we invite customers to visit our factory, also can be customized according to customer demand, through our products and services for customers
1. Factory price.Spend the least money on the best machines.
2.Low failure rate.All the accessories use the famous brands at home and abroad;More than 20 years' experience in this field,strictly control the quality.
3. Supprt oversea service.Our engineer have more exprience for oversea service,supply good service.
4.Export more than 40 countries and receive good feedback from our customer.
5.Trade Assurance.All of the order could placed by Trade Assurance, keep your money safe.
.
1. How can I get a quotation?
A. Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.
2. Can you provide customized machine or SPM (Special purpose machine)?
A. Yes, we provide smart CNC solutions for our customer, in order to increase efficiency.
3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory is available.
4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.
5. What’s the delivery time, and what’s the package?
A. Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package.
6.AK164 Swiss type lathe machine with processing product can be customized?
A: Of course, if our products do not meet your needs, please tell us the model and send the drawings to us to recommend the right products. We can also design and produce the machines that meet your requirements.
