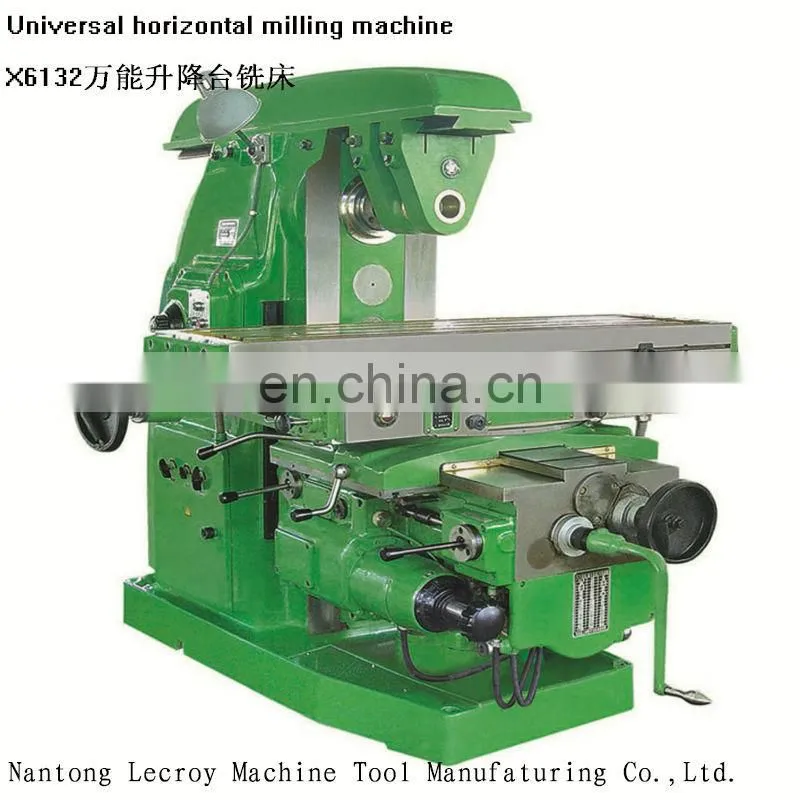

Semi-automatic gear drive 3 axis DRO universal milling machine

Name: Semi-automatic gear drive 3 axis DRO universal milling machine
Brand: lecroy
Availability: InStock

FOB Price

USD $10,000 - $20,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name:	lecroy	Place of Origin:	Jiangsu, China	Model Number:	X6132 semi-automatic gear drive 3 axis DRO universal milling machine
After-sales Service Provided:	Overseas third-party support available	Condition:	New

Semi-automatic gear drive 3 axis DRO universal milling machine

Item		Units	X6132
Table	Table size	mm	320*1325/1600
	No.of T-slots		3
	Width of T-slots	mm	18
	Max load	kg	500
	Distance between T-slots	mm	70
Travel	Longitudinal travel(manual/auto)	mm	700/680,980/960
	Cross travel(manual/auto)	mm	245/230
	Vertical travel(manual/auto)	mm	320/300
Spindle	Spindle taper		7:24(ISO NO.50)
	Spindle bore diameter	mm	29
	Spindle speed range	r/min	30-1500
	Spindle speed step	steps	18
	Axial mootion	mm	85
	Max.swivel angle of spindle		±45
	Distance from spindle nose and table surface min/max.	mm	215/470
	Distance from centre line of spindle to vertical guideway surface of column	mm	30/350
Feedrate	Cutting feed rate	mm/min	X:23.5-1180,Y:15-786,Z:8-394
	Rapid feed rate	mm/min	X:2300,Y:2300,Z:770
	NO. of feed	mm	18
Motor	Power of spindle motor	kw	7.5
Motor	Power of feed motor	kw	2.2
Others	Overall dimensions(LxWxH)	mm	2294X1170X1665
Others	Net weight	kg	2850

Company Brief Nantong Lecroy Machine Tool Manufacturing Co,.Ltd specializes in machine tool research and development, design, manufacturer and sales. We have a long history to produce precision machine tool.
Assembly shop of vertical machining center We follow strict assembly technique after we check each parts are eligible.
Assembly shop Strict quality management. Professional QC to ensure accuracy.
Warehouse
Casting
The main parts gear
