VMC640L Linear Guideway CNC Milling Machine Price With Good Precision
US$ 19,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
WMT
Place of Origin:
Anhui, China
Type:
Vertical
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
XH7140 With Whole Cover Precision CNC Milling Machine With CEUS$ 8,000 - 13,000MOQ: 1 Set -
VMC600L Linear Guideway 4 Axis Cnc Milling MachineUS$ 20,600 - 28,400MOQ: 1
-
VM850L High Speed Linear Guideway CNC Milling MachineUS$ 27,000 - 40,000MOQ: 1 Set
-
XK1860 Cheap 4 Axis Vertical CNC Milling Machine With CEUS$ 8,000 - 11,000MOQ: 1 Set
-
XK7140 Precision Vertical Hobby CNC Milling Machine 5 Axis Price With CEUS$ 19,000 - 23,000MOQ: 1 Set
Brand Name
WMT
Place of Origin
Anhui, China
Type
Vertical
Certification
CE ISO
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
13 months
Weight
4100kgs
Dimension(L*W*H)
2200x2100x2550mm
Voltage
380V
Condition
New
Power(W)
5.5kw
Specification(VMC640L cnc milling machine price) CNC MILLING MACHINE PRICE
| SPECIFICATION | VMC640L | |
| Worktable | worktable size | 400×900mm |
| Max load of worktable | 350kgs | |
| T-slot size | 3×18 | |
| T-slot pitch | 100mm | |
| Travel | X/Y/Z-axis travel | 640/400/500mm |
| distance from column to spindle center | 476mm | |
| distance from table surface to spindle nose | 120-620mm | |
| Spindle | Spindle hole taper | BT40 |
| Spindle power | 5.5kw | |
| Max spindle speed | 8000/10000rpm(spindle oil cooler) | |
| Feed | Max feed speed | 6000mm/min |
| Rapid feed speed(X/Y/Z) | 30/30/24m/min | |
| Accuracy | Positioning accuracy(X/Y/Z) | ±0.01mm |
| Re-positioning accuracy(X/Y/Z) | ±0.005mm | |
| Other | Packing size | 2200×2100×2550mm |
| Net weight | 4100kg | |

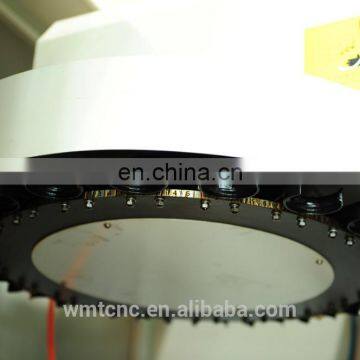

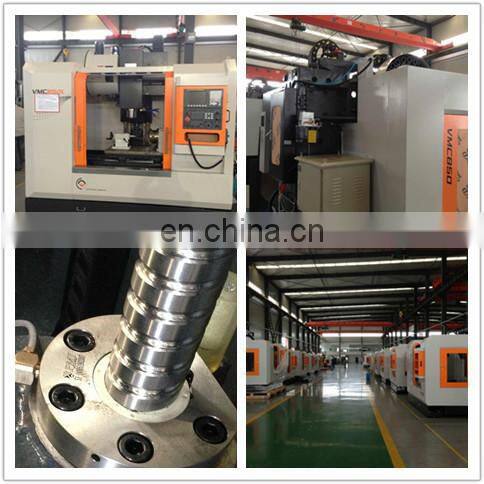

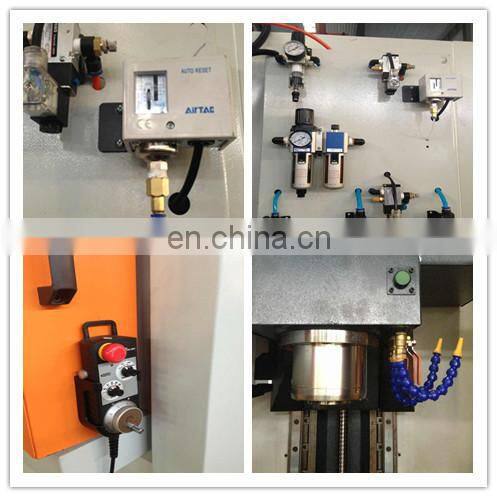

Machine details:
Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
