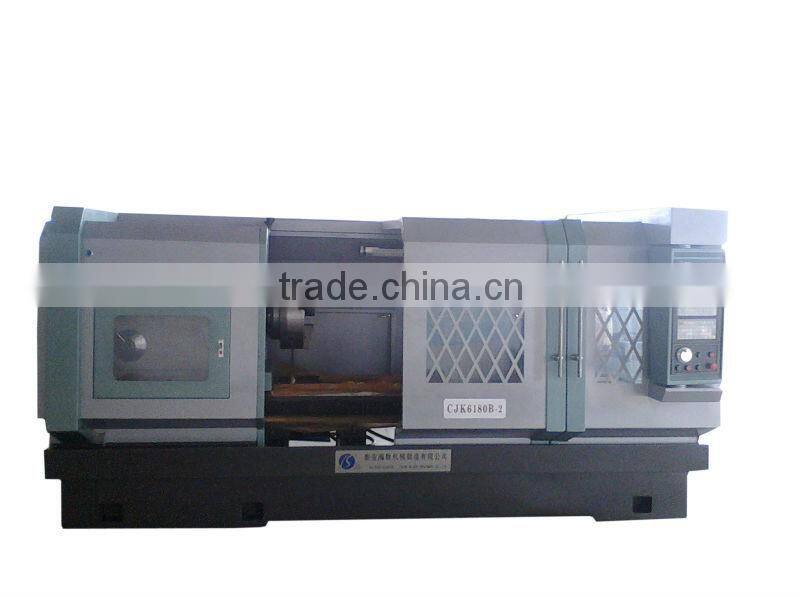

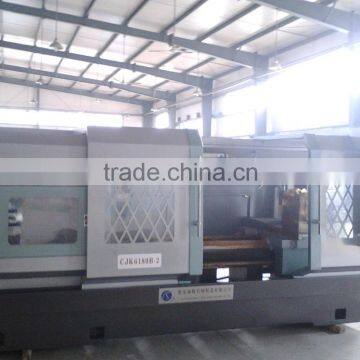

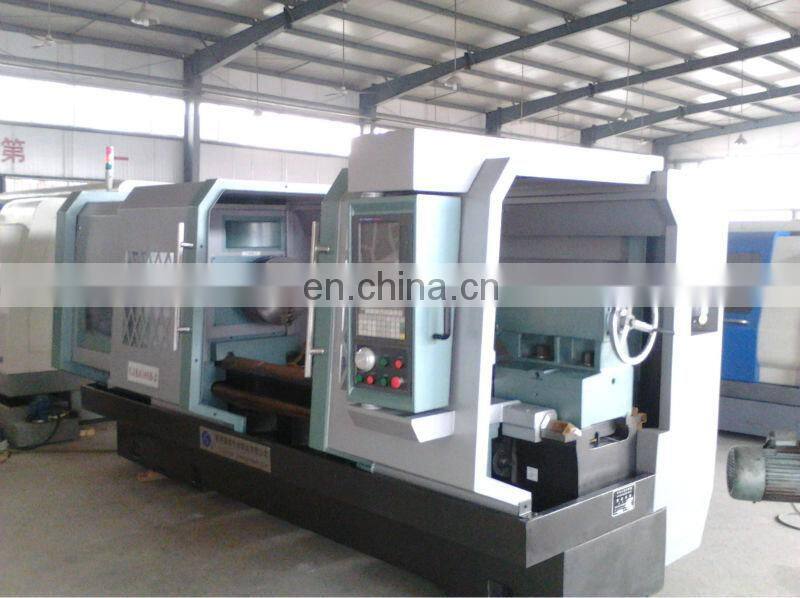

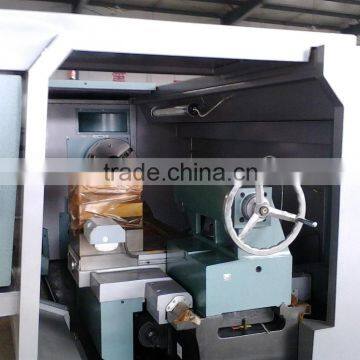

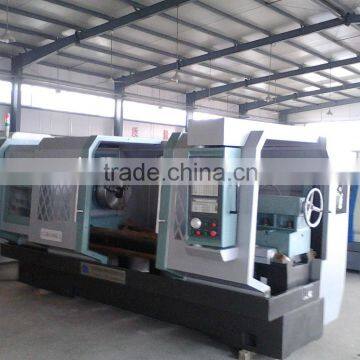

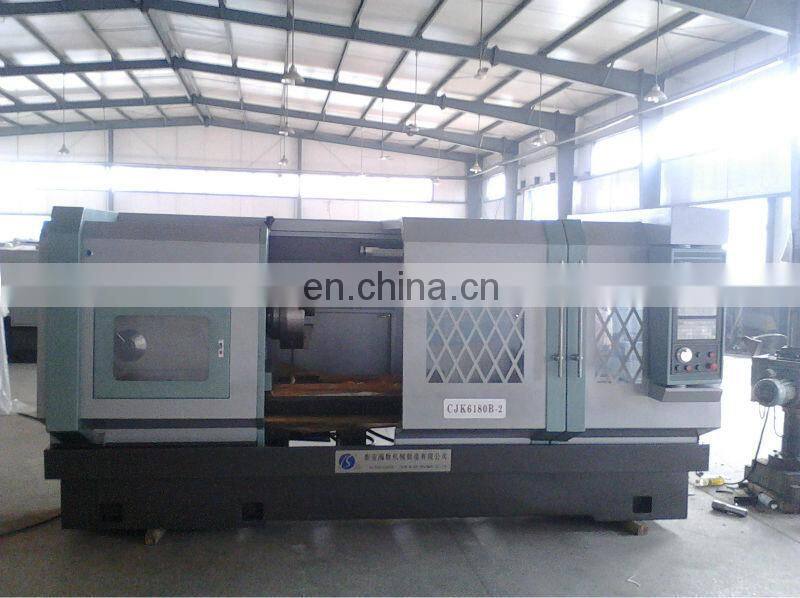

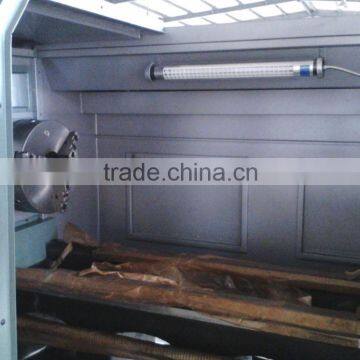

heavy duty cnc lathe CJK6180 large duty cnc lathe
1.Technical parameters
Item | Project name | Technical paramaters | |
CJK6163B-2 | CJK6180B-2 | ||
technical specifications | Max.swiming over the bed dia. (mm) | Φ630 | Φ800 |
Max.swiming over pallet(mm) | Φ350 | Φ500 | |
Max.the workpiece length(mm) | 1000/1500/3000 | ||
Main transmission | Main transmission form | Three handle to speed ; frequency conversion stepless | |
Number of spindle speeds | stepless | ||
Range of spindle speed(r/min) | 25~800 | ||
The form of the spindle head | C11 | ||
Spindle taper hole | 1:20 | ||
Spindle bore(mm) | Φ100 | ||
Main motor power(kw) | 11kw | ||
Feed system | Turret maximum stroke(mm) | X - axis: 500 Z - axis:1200,1650,3100 | |
Fast-moving feed(mm/min) | X - axis:4000 Z - axis:5000 | ||
Repeat positioning accuracy(mm) | X - axis:0.01 Z - axis:0.015 | ||
Workpiece accuracy | IT6-IT7 | ||
Workpiece surface roughness | Ra1.6 | ||
tailstock | Dia. of tailstock quill(mm) | Φ100 | |
Tailstock quill stroke(mm) | 250 | ||
Taper of tailstock quill | MT6 | ||
Tool post | Standard accessories | 4 station electric tool | |
Opinional accessories | Horizontal 6 station electric turret | ||
Repeat positioning accuracy(mm) | 0.01 | ||
Section of turning tool(mm) | 30*30 | ||
Size and weight | The size of the machine (length*width*height)(mm) | 3200/3700/5200*1820*1780 | |
Net weight of the machine(kg) | 3400,3700,5200 | ||
2,Main features
1) Horizontal flat bed
2) Feed of X Z axis are driven by ball screw with servo-motor
3) the guideway use hyperacoustic quenching.
4) Hardended and ground bed guide way coated with Turcite-B
5) high pression ball screw, High rigid precision composite bearing structure
6) ball screw and the guide surface combination use automatic lubrication system.
3. Configuration
Standard configurations | 1. guide width is 550mm 2. spindle bore dia is 105mm 3. 4 electric tool post 4. spindle speed is a gear three handle, stepless change the speed, 5. X/Z servo driven 6. controller is GSK980TDb 7. motor power is 15kw 8. manual chuck and manual tailstock 9. auto lubrication 10. Semi-enclosed protection Tool box Instruction manual Packing list |
Opitional configurations | .Siemens . Fanuc 0i-mate TD . NSK spindle bearing 6 or 8 ,12position turret .Hydraulic chuck .Penumatic chuck .Pneumatic tailstock .Hydraulic tailstock |
