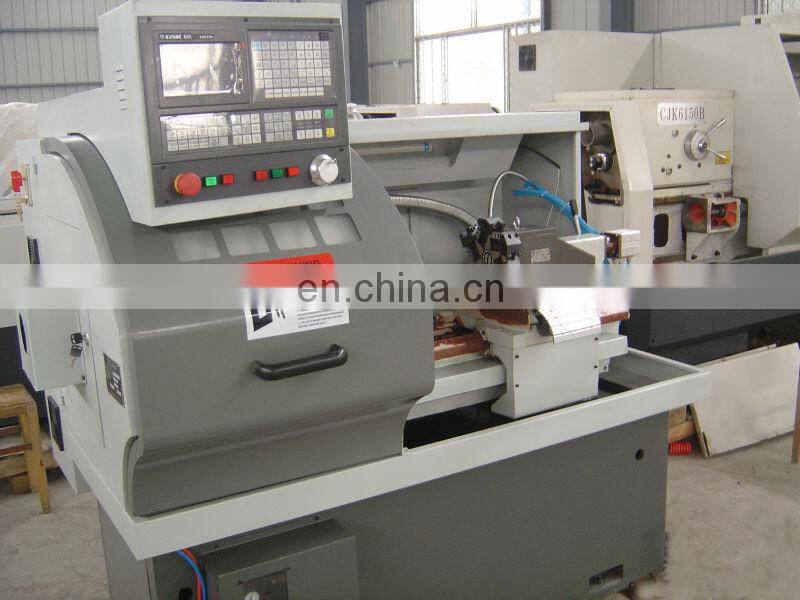

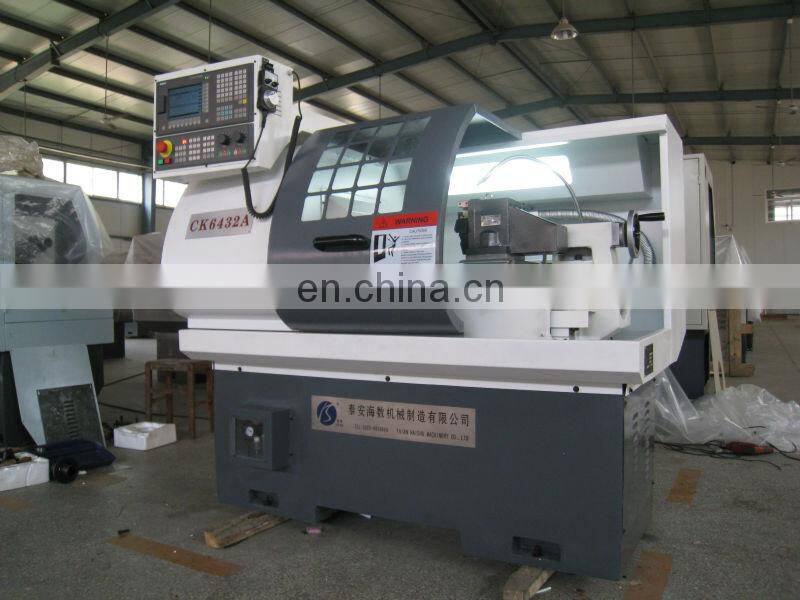

good quality mini CK6432A cnc automatic metal lathe
Standard scheme
Fully enclosed protection
Cooling system
Lighten system

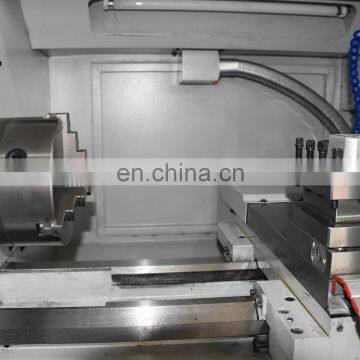

3-jaw chunk
Automatic lubrication system
4-station eletric turret
Optional scheme

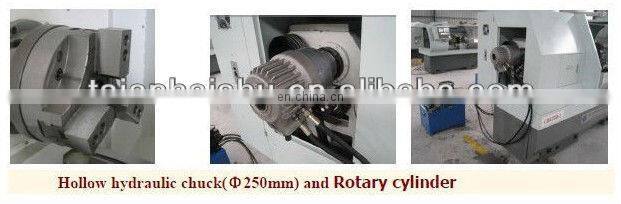

Hydraulic chunk
Automatic feeding
6/8-station turret
4-jaw chunk
Automatic chip conveyor
Semi-closed protection
technical paramater
Item | Project name | Technical paramaters | |
CK6432A | |||
technical specifications | Max.swiming over the bed dia. (mm) |
Φ360 | |
Max.swiming over pallet(mm) |
Φ150 | ||
Max.the workpiece length(mm) | 450 | ||
Main transmission | Main transmission form | Independent spindle, stepless frequency conversion timing | |
Number of spindle speeds | stepless | ||
Range of spindle speed(r/min) |
150~2500 | ||
Spindle centering axial taper |
MT6 | ||
Spindle bore(mm) |
60mm | ||
Chuck size(mm) |
200mm | ||
Main motor power(kw) |
4kw | ||
Feed system | Turret maximum stroke(mm) | X - axis: 260 Z - axis:450 | |
Fast-moving feed(mm/min) | X - axis:6000 Z - axis:8000 | ||
Repeat positioning accuracy(mm) | X - axis:0.01 Z - axis:0.015 | ||
Workpiece accuracy | IT6-IT7 | ||
Workpiece surface roughness | Ra1.6 | ||
tailstock | Dia. of tailstock quill(mm) | Φ60 | |
Tailstock quill stroke(mm) | 100 | ||
Taper of tailstock quill | MT4 | ||
Tool post | Standard accessories | 4 electric tool post | |
Opinional accessories | gang-type tool camier or 6 tool post | ||
Repeat positioning accuracy(mm) | 0.008 | ||
Section of turning tool(mm) | 20*20 | ||
Size and weight | The size of the machine (length*width*height)(mm) | 1815*1165*1800 | |
Net weight of the machine(kg) | 1450 | ||

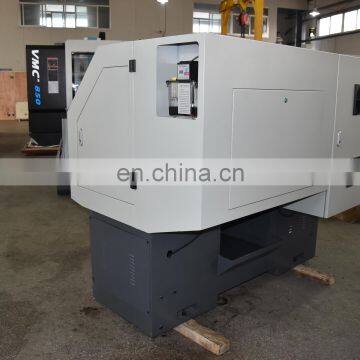

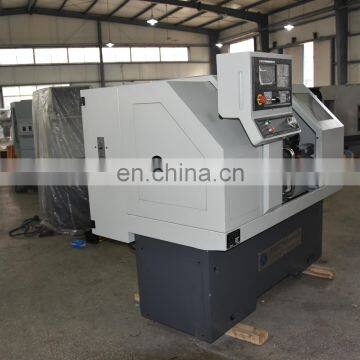

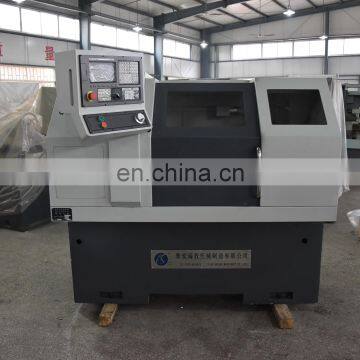

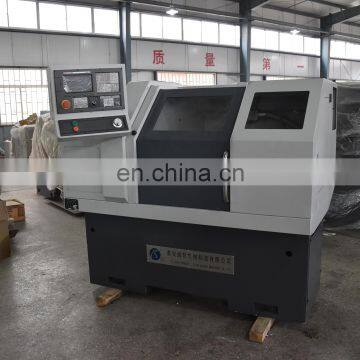

finished machine
CE certufucate
