CNC250B-1 Full function cnc lathe machine chinese lathes

FOB Price

USD $20,000 - $55,000 / Set

1 Set(Min.Order)

Supply Ability 90 Set / Sets per Month
Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Haishu		Place of Origin	Shandong, China
After-sales Service Provided	Overseas service center available		Condition	New

Packaging Details

CNC250B-1 Full function cnc lathe machine chinese lathes with Fumigation-free packing in wooden cases.standard exported package

Product Description

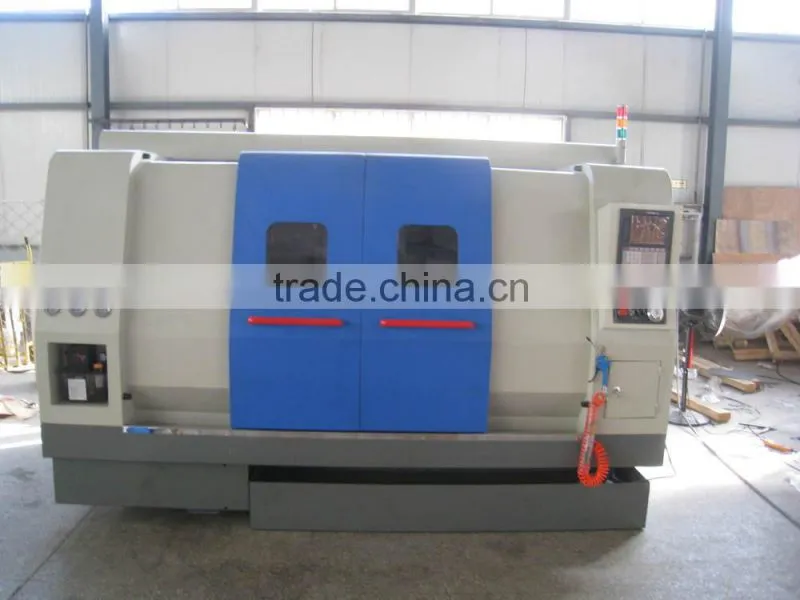

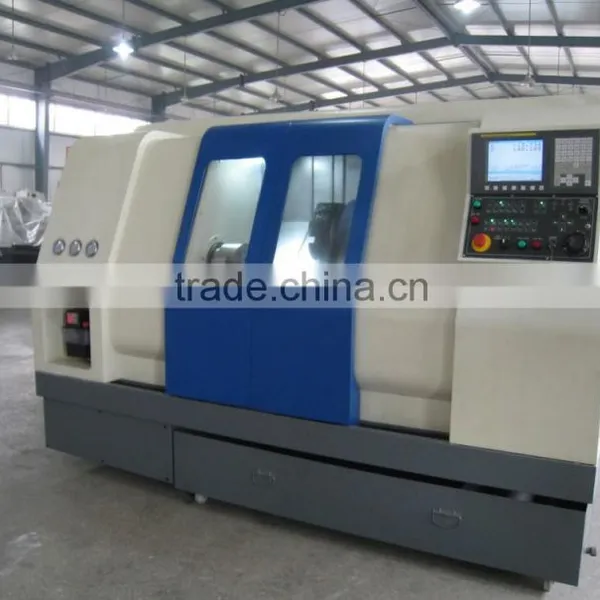

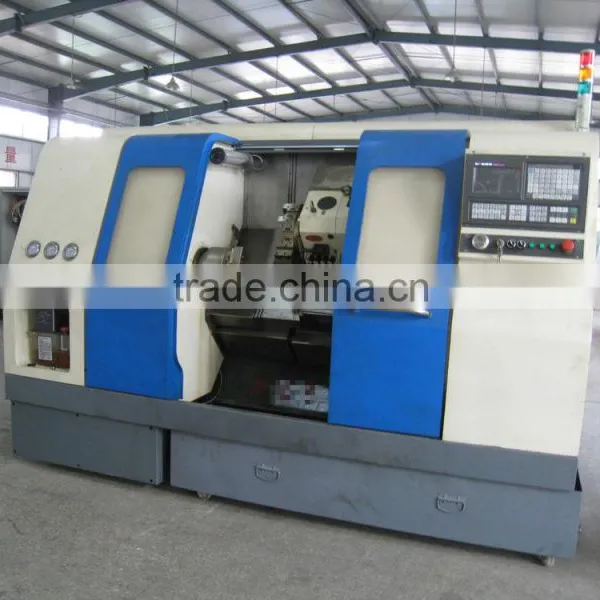

CNC250B-1 Full function cnc lathe machine chinese lathes

Technical paramete

CNC250(B-1)slant bed CNC lathe

(3-axis harden guide, three gears change speed, harden cutting )

No.	Item	Unit	specifications
No.	Item	Unit	CNC250(B-1)
1	Max.rotation diameter on lathe’ body	mm	250
2	piece lengt	mm	750
3	Max.turning diameter	mm	200
4	Spindle nose type and code	mm	A8

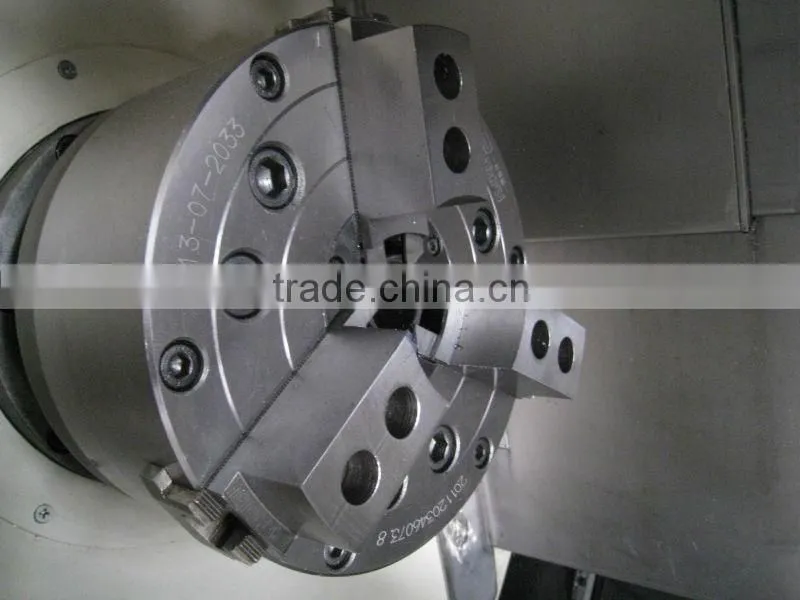

5	Hydraulic chuck	mm	φ250 (10")
6	Front spindle bore taper		1:20
7	spindle bore	mm	60
8	Spindle form	Programmable three gears auto hydraulic speed change
9	Spindle frequency control speed range	rpm	20-3000
10	X/Z Rapid traverse	mm/min	20000
11	Main motor power	kW	7.5
12	X/Z-axis motor max.torque	N.m	10
13	Power specifications	V	380±10%. 50Hz±1Hz
14	Turret transfer time (one station)	s	1.6(horizontal12)
15	Turret transfer repeat positioning accuracy		0.005"
16	X-axis travel	mm	300
17	Z-axis travel	mm	1100/1350/1850
18	B-axis travel	mm	1100/1350/1850

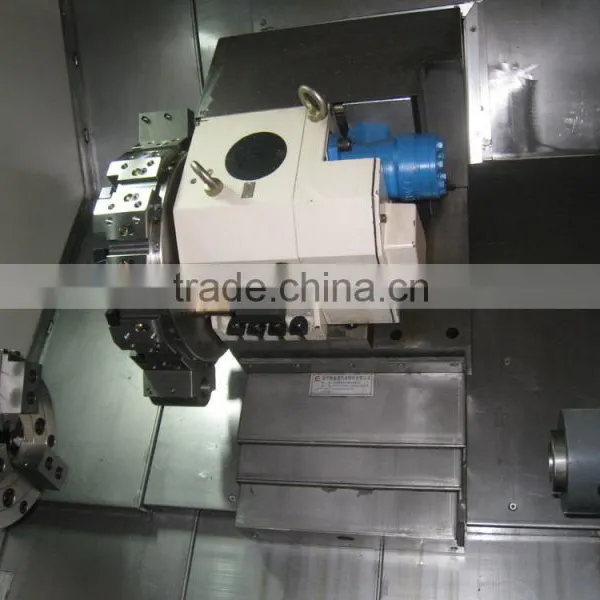

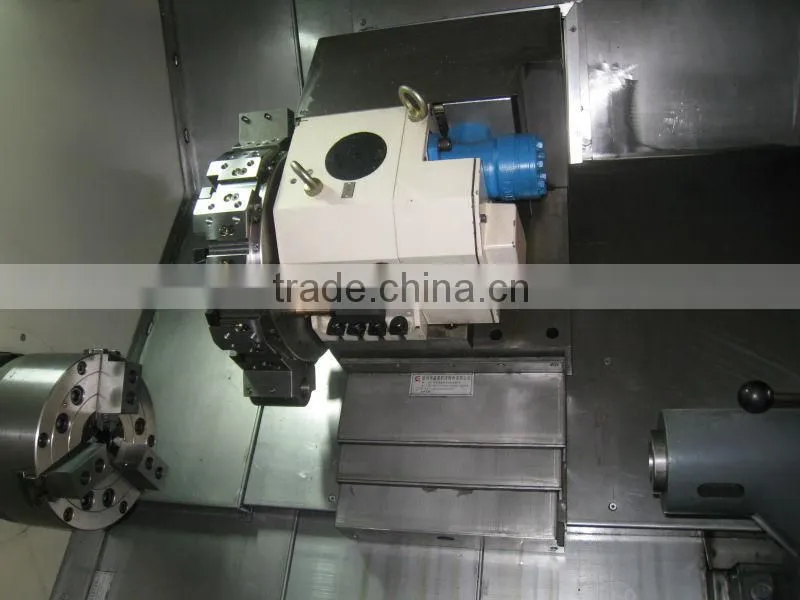

19	Hydraulic turret form		Horizontal 8 hydraulic turret

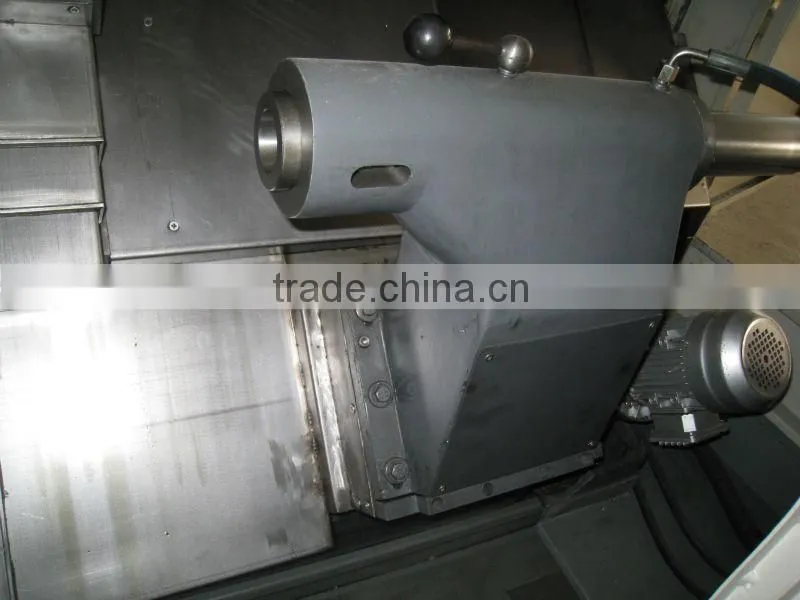

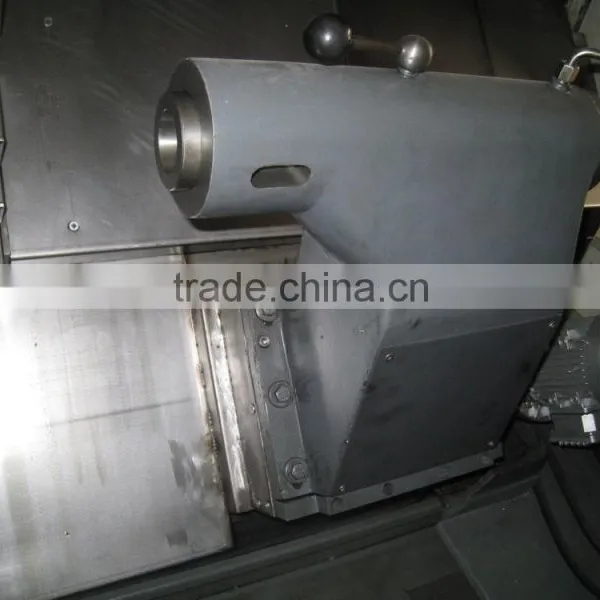

20	Tailstock sleeve diameter/ travel	mm	70/100
21	Tailstock tapered bore taper	Morse	4#
22	Tailstock form (programming optional)		Electric drive
23	Tailstock sleeve form		Hydraulic drive
24	Knife handle size	mm	25×25
25	Net weight	kg	5000
26	Size(L×W×H)	mm	3000×1650×1900

Standard configurations:

1.GSK980TDc controllers sytem

2.Spindle 3 gears frequency control speed

3.Hydraulic solid chuck

4.Horizontal 8 hydraulic turret

5.Three axis harden guide

6.Electric tailstock,hydraulic sleeve

7.Turning coolant system

8.Auto lubrication system

9.Whole protection door

Optional configurations:

1.fanuc/siemens controller system

2.Hydraulic hollow chuck

3.Electric and programming tailstock

4.Auto bar feeder

5.Auto chip cleaner

6.Auto catcher device

7.Auto protection door

8.Loading robot
