High Precision Diamond Cut Alloy Machine CK6160Q
- 1000 Set / Sets per Month
- T/T Credit Card
Product Details
| Brand Name: | HaiShu | Place of Origin: | Shandong, China | After-sales Service Provided: | Overseas service center available |
| Condition: | New |
Packaging Details
High Precision Diamond Cut Alloy Machine CK6160Q standard exported wooden case
Product Description

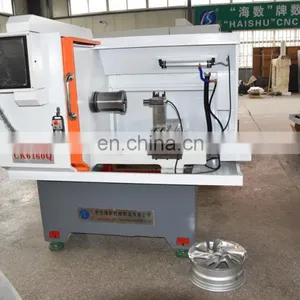

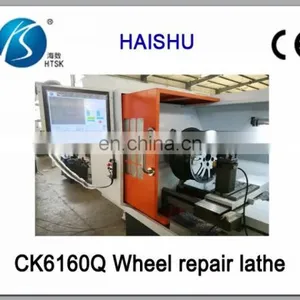

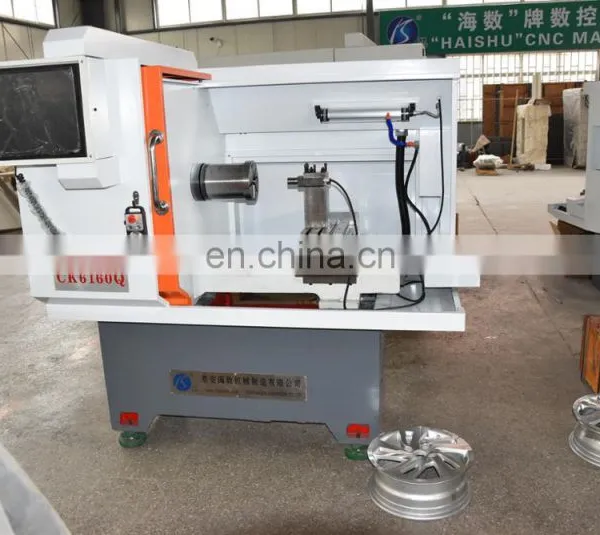

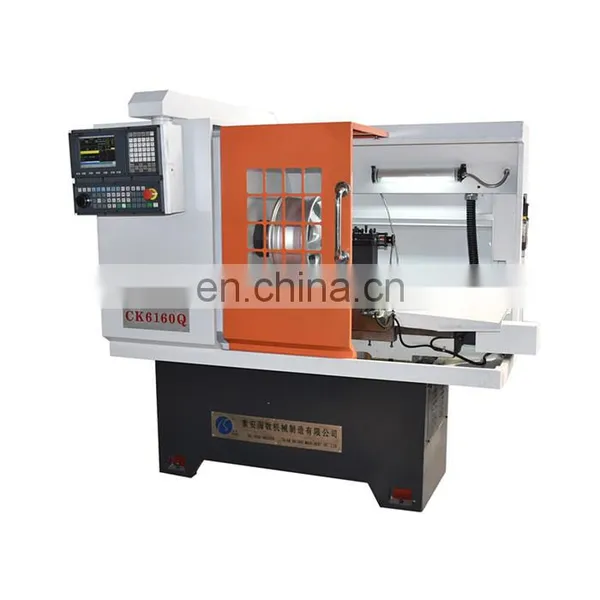

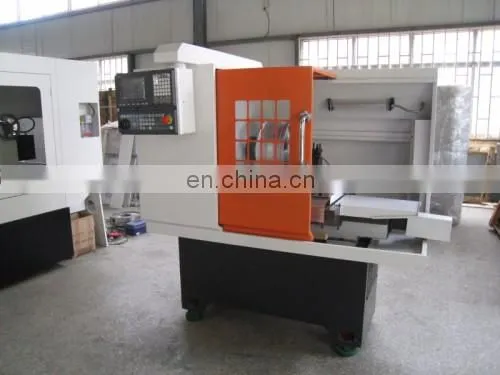

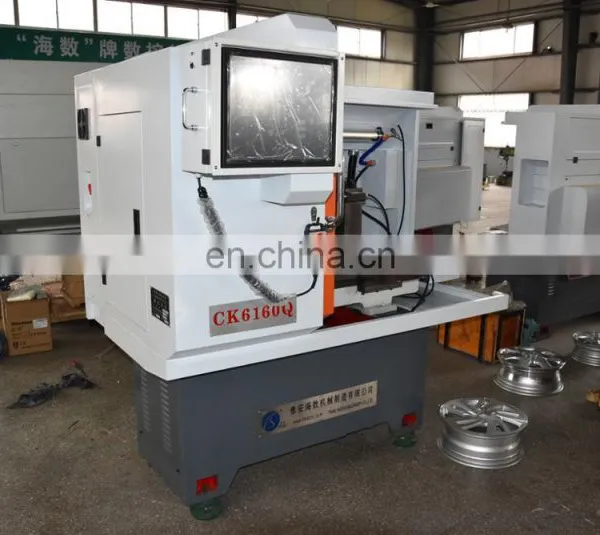

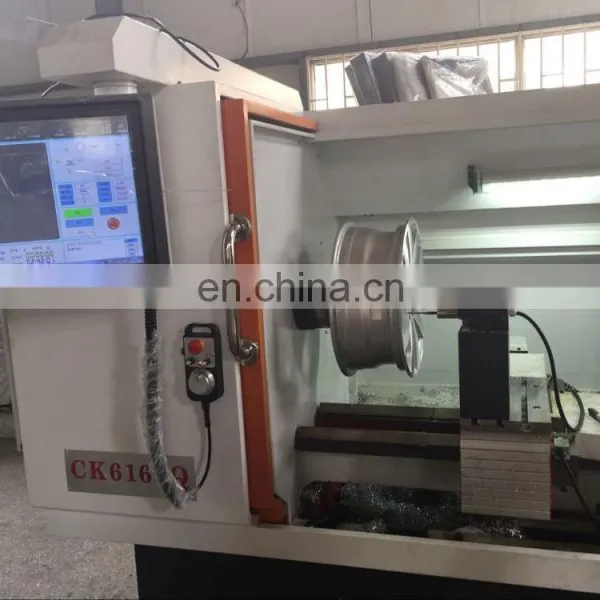

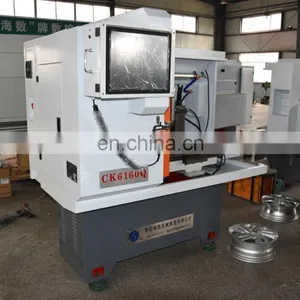

High Precision Diamond Cut Alloy Machine CK6160Q
High Precision Diamond Cut Alloy Machine CK6160Q Description

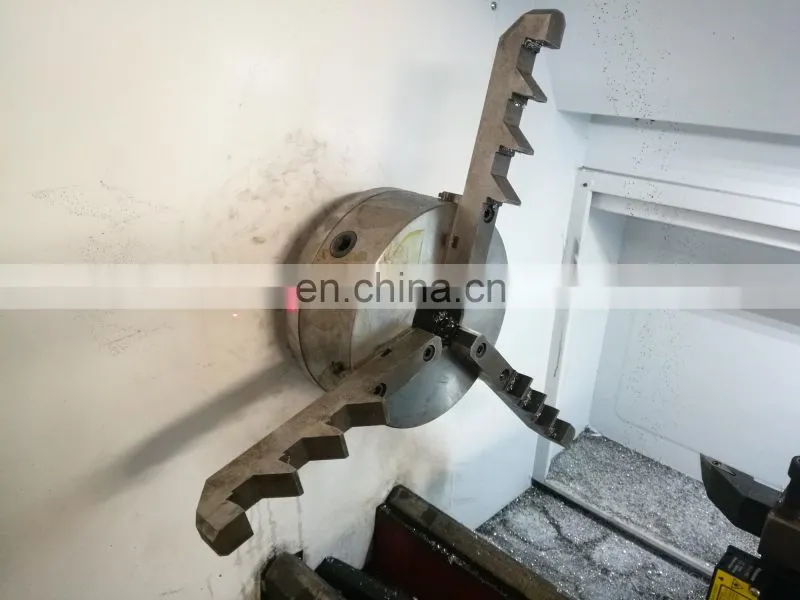

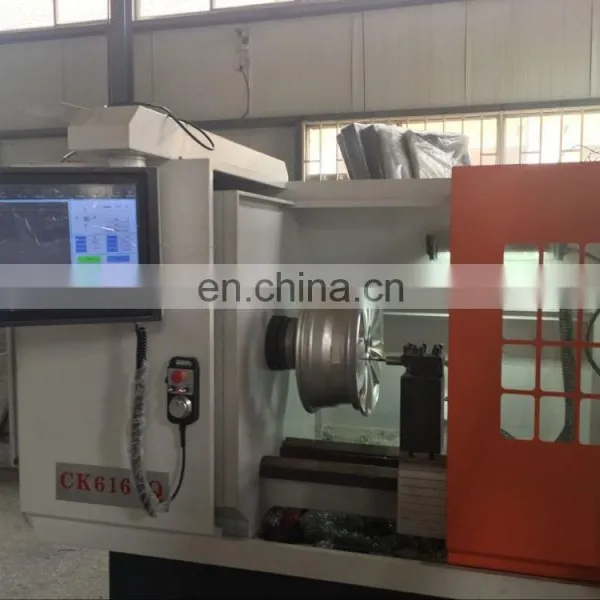

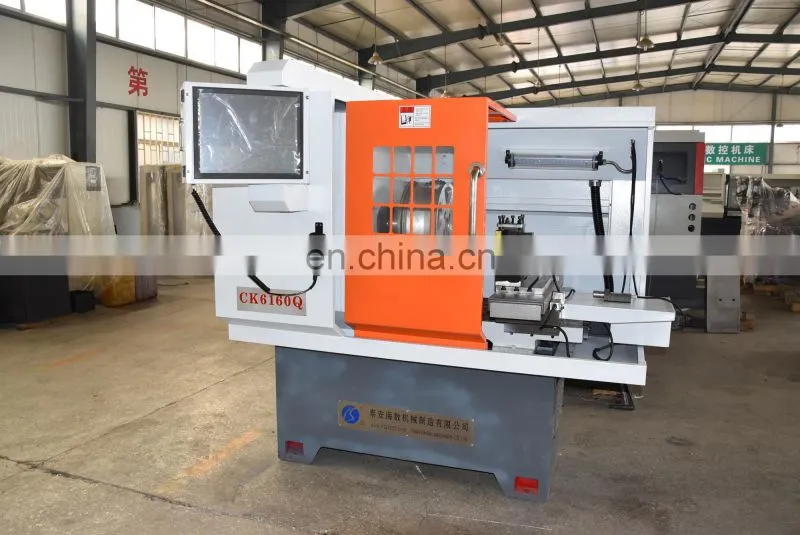

High Precision Diamond Cut Alloy Machine CK6160Q is specially engineered and fabricated wheel CNC machine by Haishu Machinery for alloy car wheel repair and maintenance in Car Repair Workshops. High Precision Diamond Cut Alloy Machine CK6160Q is composed of self-made mechanical parts such as the cast bed, spindle, fixing chuck and the feeding mechanism, the imported numerical control system, the automatic measuring system, the famous brand servo motors and the auxiliary parts like lubrication, light and cooling.
Our High Precision Diamond Cut Alloy Machine CK6160Q features self developed CNC system, high efficiency, compact structure, touch screen, easy to operation.
High Precision Diamond Cut Alloy Machine CK6160Q Specifications
Item |
Unit |
parameters and configuration |
CK6160Q | ||
Max. wheel diameter | Inch | 22" |
X-axis maximum stroke | mm | 320 |
Main motor power | kw | 3 |
Rail width | mm | 260 |
Max. workpiece length | mm | 500 |
Wheel measuring direction |
| X,Z |

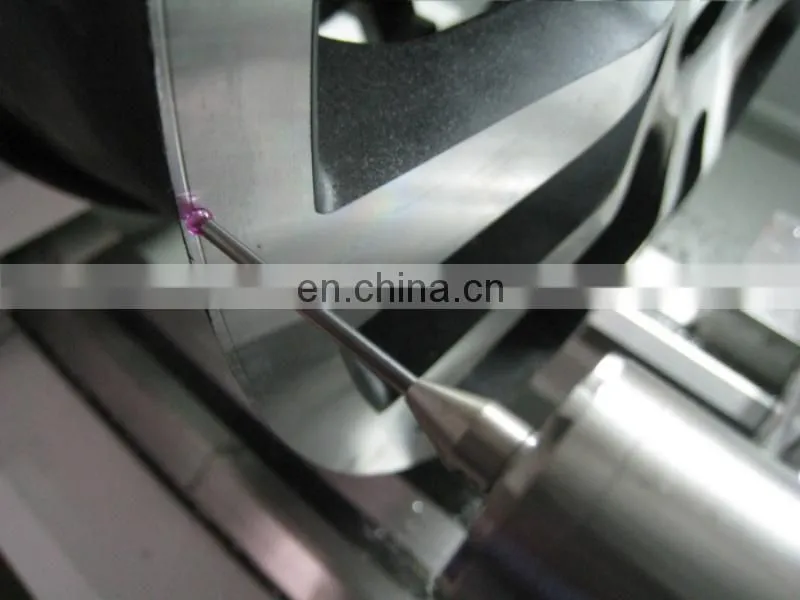

Measuring tool | mm | Laser, probe (optional) |
Measurement method |
| Point measurement and quick scan |
Program optimization |
| Manual and automatic |
Number of wheel processing programs |
| 100000 |
CNC System |
| "HAISHU" special system (touch screen operation, 17 "screen LCD display). |
Wheel processing |
| surface, rim |
Mchining accuracy |
| IT6~IT7 |
Surface roughness | um | Ra0.8~1.6 |
Main drive form |
| Frequency control, servo drive (optional) |
Spindle speed | rpm | Factory setting 150~2800 |
Fast-moving feed | mm/min | X :5000 Z :8000 |
Repeat accuracy | mm | X :0.01 Z :0.015 |
Turret form |
| Fixed turret,Electric turret (optional) |
Section of turning tool | mm | 25×25 |
Machine size(L×W×H) | mm | 190×1400×1750 |
Net weight | kg | 1300 |
Wheel Mirror effect Wheel Drawing effect
“HAISHU” wheel repair curve optimization software features
1. The software has two-way curve optimization features of the X and Z direction, can achieve the curve optimization of the wheel face and circumference (rim) surfaces.
2. According to the wheel CAD drawings, modified the curves be generated by collection points of the wheel surface.
modify the curve of measurement acquisition point generating of wheel surface.
3. According to the point of collection from the surface of the wheel, you can automatically generate a curve, you can also manually modify and optimize the curve.
4. The software can display multiple languages, adapt to customers in different countries.
5. The software is self-developed, design can be personalized according to customer requirements.
6. The software requires no special installation, open to use, operation is very simple.
7. The software enables to a self-set for safety distance of advance and retreat knife.
Car Wheel Lathe CK6160Q Features
1.The wheel lathe has the advantages of simple structure, low cost and high performance price ratio.
2.The machine tool can be selected by laser scanning or probe click measurement.
3.Wheel data is automatically stored, machining program is arbitrarily called out.
4.Software independent development, program automatically optimize
5. Wheel processing is automatic precise and fast
6. The machine tool is operated by touch screen, and the system interface supports many languages.
7.X / Z axis measurement, wheel surface and circumferential machining.
8.The High Precision Diamond Cut Alloy Machine CK6160Q is equipped with an automatic lubrication system.
9.The High Precision Diamond Cut Alloy Machine CK6160Q with diamond tool turning, make wheel surface more smooth.
10.The wheel repair lathe has the teaching function of the computer.
11.The High Precision Diamond Cut Alloy Machine CK6160Q can be customized according to customer requirements.
High Precision Diamond Cut Alloy Machine CK6160Q standard exported wooden case
Taian Haishu Machinery Co., Ltd. is the professional CNC machine designer and manufacturer dedicated in supplying automobile wheel production and repair solutions to worldwide customers. We have been always worked hard to become the leader in designing and manufacturing CNC lathes since 2001. We have more than 30 talented experts and more than 12,000 square meters factory.
Sticking on the product development ideas of innovation, simpleness, high quality and high efficiency, we had been always focused on CNC software development, structural design, process planning, manufacturing deployment and quality control since the foundation in 2001. Our innovative, high-quality products include wheel CNC machine, wheel repair machine, brake drum lathe and customized CNC machine, alloy wheel cnc lathe, wheel straightening machine, alloy wheel lathe machine, alloy wheel polishing machine, rim straightening machine, brake disc lathe and other customized CNC machines. Our customers are from Germany, Russia, Spain, India, South Korea, Malaysia, Singapore, Saudi Arabia, South Africa, Iran, Indonesia, Turkey, Jordan, Dubai, Poland, Morocco, Mexico, Brazil, Lebanon, Thailand, Kazakhstan, Bangladesh, HK, Taiwan and so on.
We are looking for partners all over the world.
