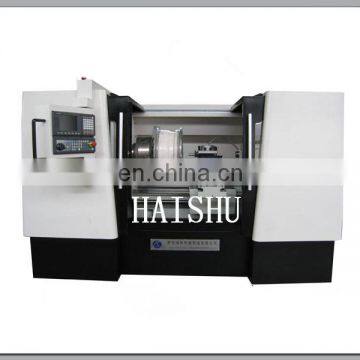

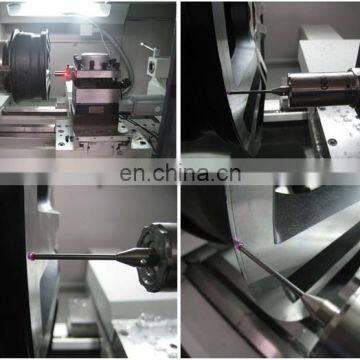

Scitentific automobile wheel cutting cnc lathe from haishu CK6187W
Main features:

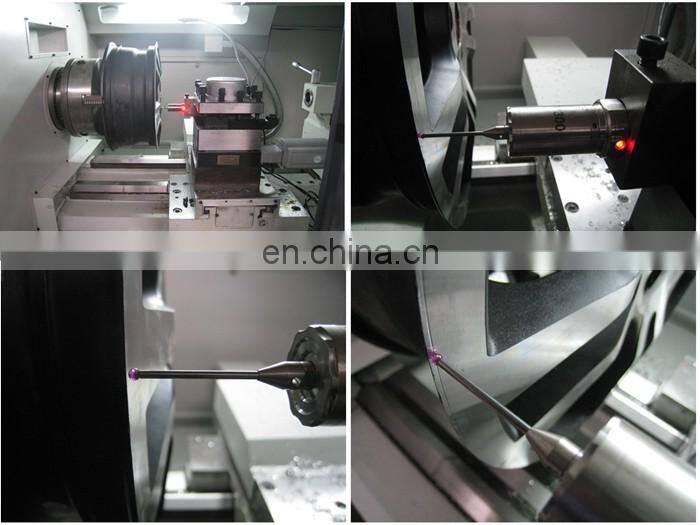

1.Laser scanning, fast measurement
2.Wheel data is automatically stored, machining program is arbitrarily called out.
3.Software independent development, program automatically optimize
4. Wheel processing is automatic precise and fast
5.Touch screen operation, support multiple languages
6.X / Z axis measurement, wheel surface and circumferential machining.
7.Three-color warning lights.
8.MPG
9.Automatic lubrication system.

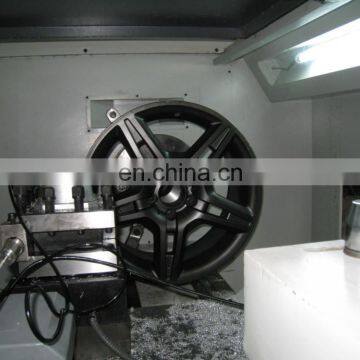

10.Diamond cutting.

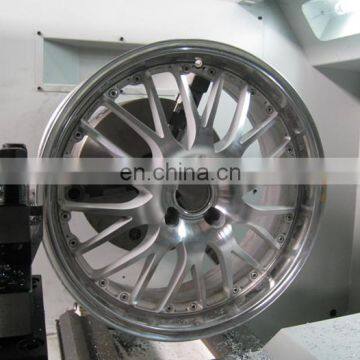

11.Wheel polished.
12.Internal and external protection high configuration.
13.The machine can be customized according to customer requirements.
Main specifications:
Item | Unit | CK6187W |
Max. wheel diameter | inch | 31’’ |
Max. workpiece length | mm | 750 |
Wheel measuring direction |
| X,Z |
Measuring tool | mm | Laser, probe (optional) |
Measurement method |
| Point measurement and quick scan |
Program optimization |
| Manual and automatic |
Number of wheel processing programs |
| 100000 |
CNC System |
| "HAISHU" special system (touch screen operation, 17 "screen LCD display). Universal CNC system (key operation, 10.4 "screen LCD display) (optional) |
Chuck |
| Standard three-jaw,lengthened three-jaw (optional). With a quick chuck wrench |
Wheel processing |
| Surface, Rim |
Mchining accuracy |
| IT6~IT7 |
Surface roughness | um | Ra0.8~1.6 |
Main drive form |
| Frequency control, servo drive (optional) |
Spindle speed | rpm | Factory setting 150~2000,>2000(optional) |
Main motor power | kw | 7.5 |
Fast-moving feed | mm/min | X: 5000 Z: 8000 |
Repeat accuracy | mm | X: 0.01 Z: 0.015 |
Turret form |
| Fixed turret,Electric turret (optional) |
Section of turning tool | mm | 25×25 |
Machine size(L×W×H) | mm | 2685×1750×1980 |
Net weight | kg | 3300 |

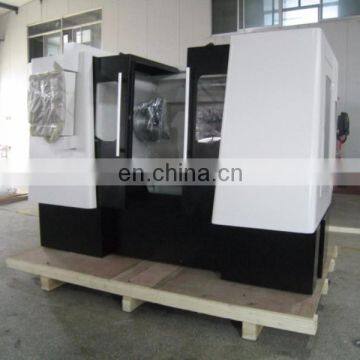

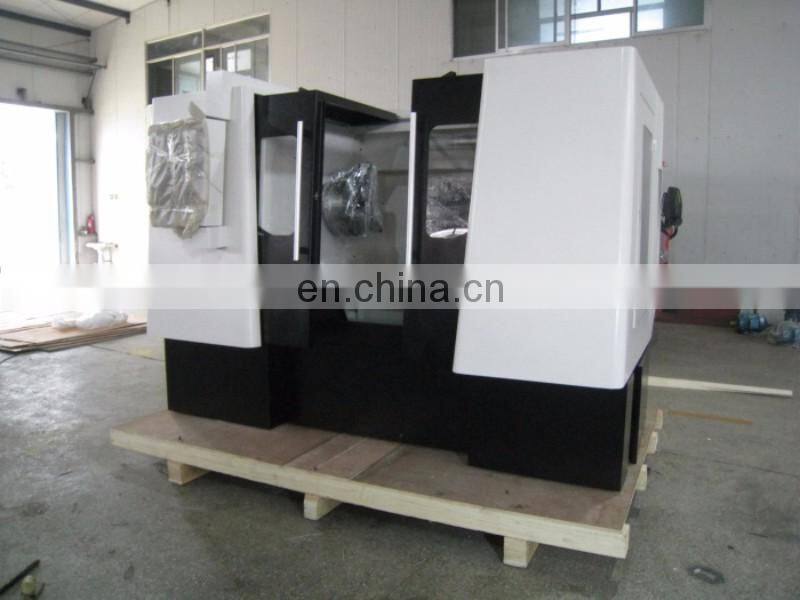

Scitentific automobile wheel cutting cnc lathe from haishu CK6187W with standard export package.
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
