Product Details
| Brand Name: | HaiShu | Place of Origin: | Shandong, China | After-sales Service Provided: | Engineers available to service machinery overseas |
| Condition: | New |
Packaging Details
standard exported wooden case
Product Description

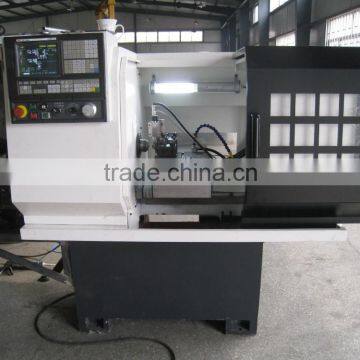

CXK0632A Micro Small Milling And Drilling Small CNC Machine Metal Lathe Machine
Model:CXK0632A
Features: CKX0632A CNC lathe used mechanical and electrical integration design, have beautiful shape, reasonable structure, convenient operation, wide applications, convenient operation, a machine can realize until advantage, multiple products a circular/end face/hole/cutting/any cone/sphere and various metric system of automatic thread cutting, with perfect S/T/M function, can give and receive multiple signal, automatic control processing program
About CK0632A Main Specification
Items | Specifications | |
Max.swing over bed | φ260mm | |
Max.swing over carriage | Φ80mm | |
Through-hole diameter of spindle(mm) | Φ40 | |
Through-hole diameter of drawn pipe(mm) | Φ32 | |
Spindle nose | A2-5 | |
Max processing lengthe mm | Clip 200mm,chuck 120mm | |
X-axis fast moving speed | 5000mm/min | |
Z- axis fast moving speed | 8000 mm/min | |
Range of spindle speed | 150~2200/mmmin | |
X axis travel(mm) | 260 | |
Y axis travel(mm) | 240 | |
Stations of tool carrier | gang-type tool carrier | |
Power of the main drive motor | 3KW | |
Overall dimensions(L×W×H) | 1550×1000×1500 | |
Net weight | 950 kg | |
this machine, can lathe, millng ,drilling,multi-purpose cnc machine tool, with high efficiency and precision.
Company Profile
All the stock machines are mainly sourcing from broke factory, Auctions from China Government, China Custom, also European and American official auctions. All machines are in excellent condition, powered and functional. Major equipment categories are as following fyi: Machining center, Lathe, EDM, Grinder, Hobbing machine, Gear shaping machine, Boring-Mill Machine, Milling machine, Boring machine, Press, Drilling machines in brands of Mitsui Seiki, Mori Seiki, Mazak, Makino, Brother, Citizen, Wasino, Okama, Kuraki, Kitamura, Sodick, Agie, DMG, Okamoto, Mitsubishi, Daewoo, Fanuc, OKK, Toyoda, Matsuura, Yasda, Toshiba, Waida, Howa, Ikegai, Nakamura Tome, Charmilles, YCM and a lot qualified Chinese Brands.
