CKG1335A Automatic CNC Pipe Thread Lathe and Large Spindle Bore CNC Lathe Machine

FOB Price

USD $20,000 - $80,000 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port QINGDAO
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	HaiShu	Place of Origin:	Shandong, China	After-sales Service Provided:	Overseas service center available
Condition:	New

Packaging Details

CKG1335A Automatic CNC Pipe Thread Lathe and Large Spindle Bore CNC Lathe Machine into standard wooden case

Product Description

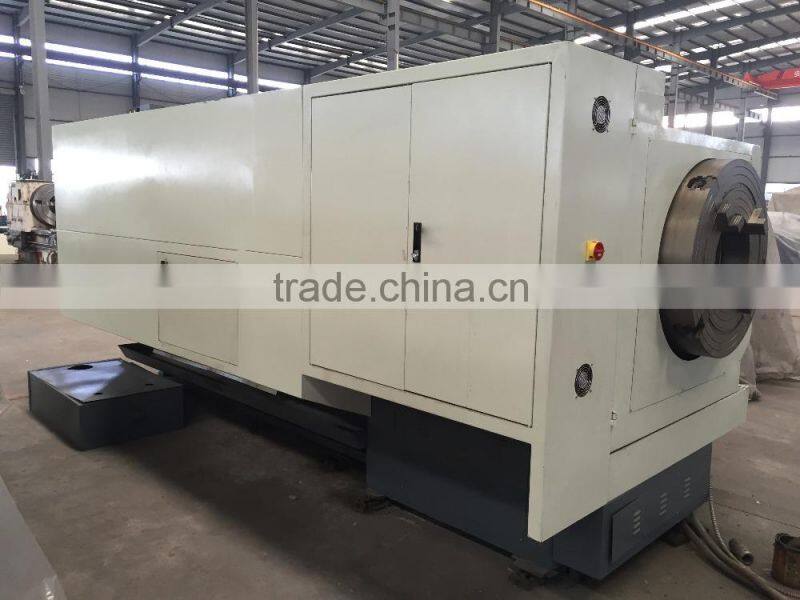

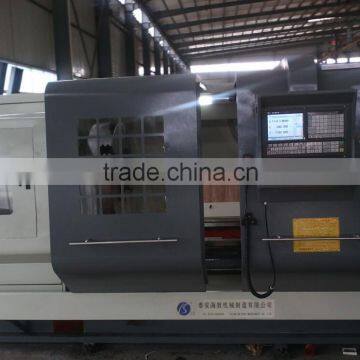

CKG1335A Automatic CNC Pipe Thread Lathe and Large Spindle Bore CNC Lathe Machine

MAIN FEATURES:

1.The spindle adopts high precision spindle unit , high rotary precision, high speed, outstanding rigidity.

2.High strength base, widen the lathe bed and plate reinforcement is designed to ensure required strong cutting.

3.Machine guide adopts the precision level of preloading liner guide rail with hardness mover 58''.

4.High degree of machine modular design has good configuration option and rooting platform.

5.Optional accessories: The controller can be selected from FANUC, Mitsubishi, Siemens.

3 jaw chuck, specialized equipment tools, spring collet.

SPECIFICATIONS:

Item	Unit	Specification
Max. swing over bed	mm	1001
Max length of processing pipe diameter	mm	1500.
Max pipe outside diameter	mm	Electric chuck 100-350
Spindle bore diameter	mm	355
spindle rotating speed level		9
Spindle speed range	r/min	6.6-200

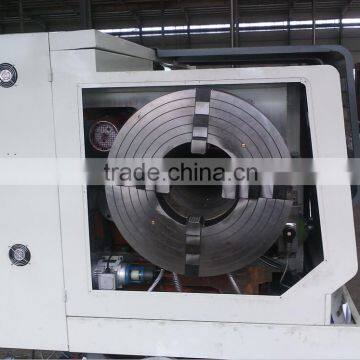

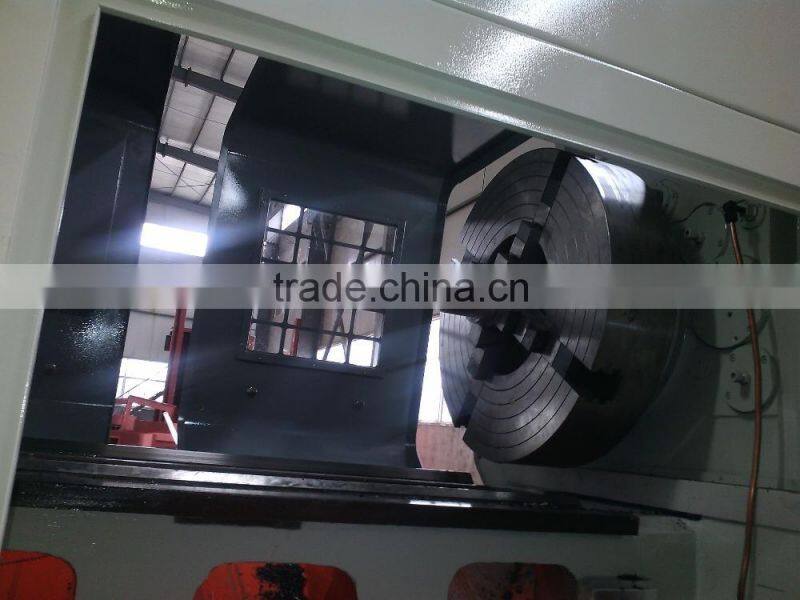

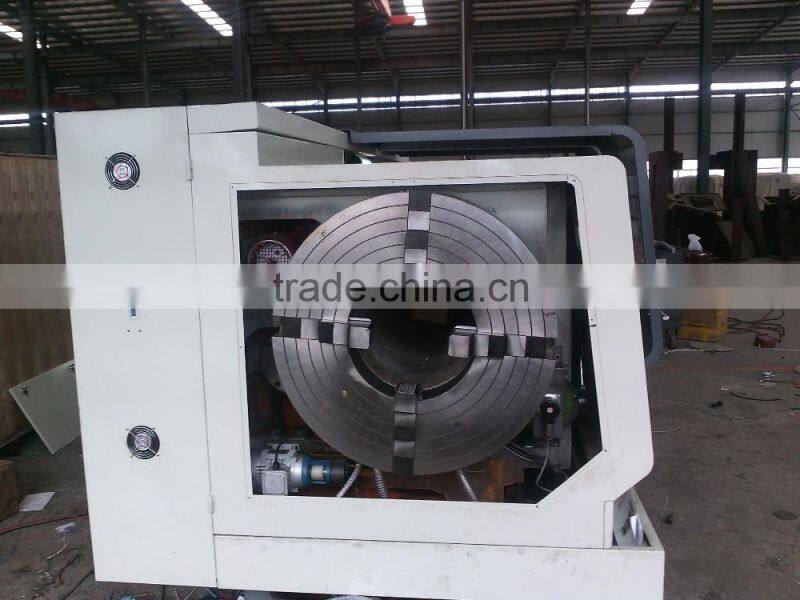

Chuck form		Four-jaw electric chuck
The turret from		Vertical four-position electric turret
Fast moving speed X/Z	m/min	4/6
Workpiece surface roughness		Ra,1.6
Turret repeat positioning accuracy	mm	0.003

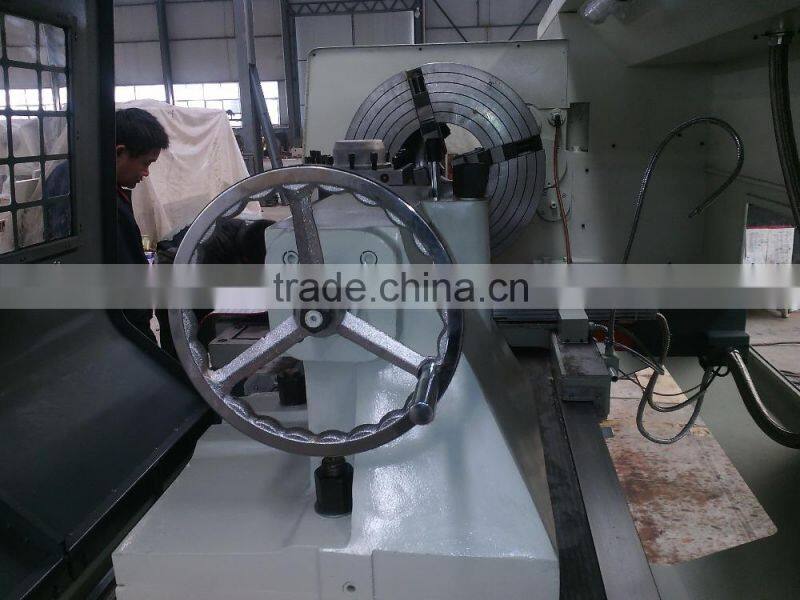

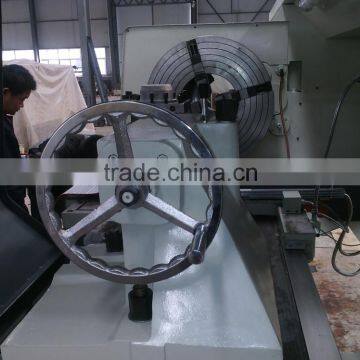

Tailstock sleeve stroke	mm	250
Center sleeve taper		Morse No.6
Center taper		Morse No.6
Spindle center to the rail distance	mm	500
Main motor power		18.5kw
Net weight	kg	9000
Dimensions (length × width × height)	mm	5800×1850×1950

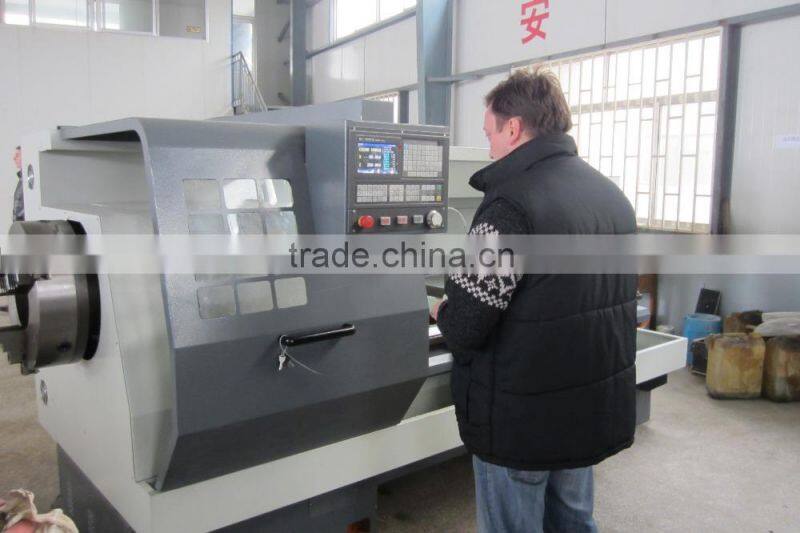

CNC system		Standard configuration Beijing KND1000T, or GSK980TDc

configurations:

Standard configuration

1, CNC system: GSK980.

2, Electric turret: vertical four station electric turret.

3,3 jaw manual chuck

4, Automatic lubrication system, Cooling system,Linghten system

5,Standard tools

6,Unit packing list

Select configuration

1, CNC system: Beijing KND, Japan FANUC, Germany SIEMENS.

2.Electric turret: horizontal 8 station electric turret.

3.Cradle.
