Clear Linear Prismatic Panel
- 50 Ton / Tons per Month
- zhongshan
- T/T L/C
- 7 days
Product Description

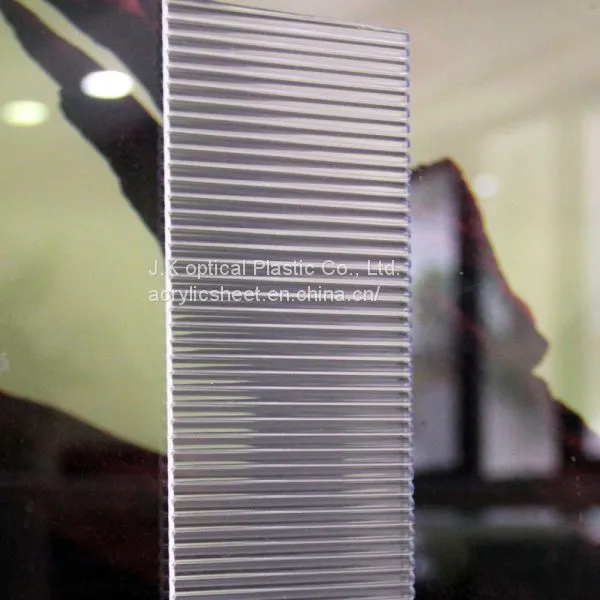

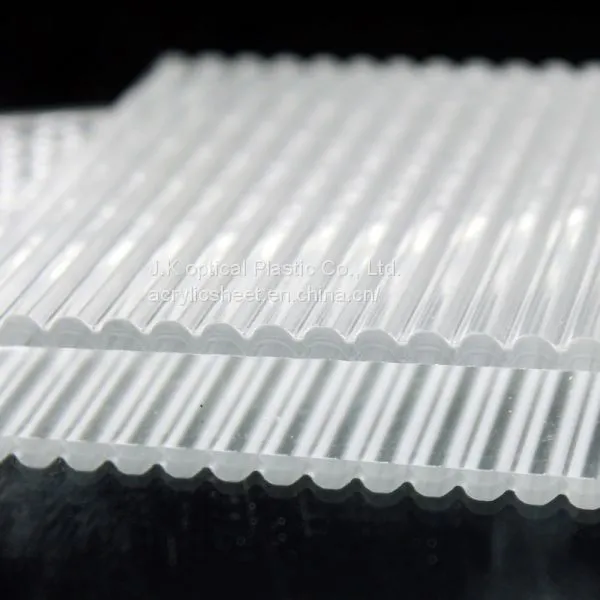

Clear Linear Prismatic Panel
Textured Acrylic Plate
Clear linear acrylic sheet, extruded products also name linear ribs acrylic sheet or stripe acrylic sheet, the Panels are furnished with ribs running parallel to lamp axis, Increase visual comfort and eliminate harsh spikes of light.Applications include areas where broad distribution is required and direct glare is not a problem.
Product Details
Specification
Dimension(L×W×T) | ||
Length(L) | Width(W) | Thickness(T) |
2500mm | 1250mm | 2~6mm |
Stripe height(mm) | 1mm(T=2mm) | |
Stripe distance(mm) | 4.5--5mm(T=2mm) | |
(Remark: The above dimension is normal, can tailor to customer's requirement; please pay attention to the stripe height (from valley to peak point) is changed with the thickness, and the stripe is longitudinal direction)
Character
Item | Test Method | Unit | Value |
Light Transmission | ASTM D1003 | - | 92% |
Water Absorption | ASTM D570-98 | % | 0.01 |
Vicat Softening Temp | ASTM D1525-09 | ℃ | 104.0 |
Heat Distortion Temp | ASTM D648-07 | ℃ | 88.4 |
Coefficient of Thermal Expansion | ASTMD696 | In/IN-F | 0.000033 |
Rockwell hardness | ASTM D785-08 | - | M-95 |
Flammability | UL 94-1996 | - | HB |
