Best Selling 0.8 zinc GI wire mesh cable tray for ceiling hot dip galvanized steel cable tray

FOB Price

Negotiable / Piece

500 Pieces(Min.Order)

Supply Ability 5000000 Ton / Tons per Month
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	ZM	Place of Origin:	China	Material:	Steel
Length:	1-6m(wire mesh cable tray/cable tray	Type:	Wire Mesh	Width:	50-1000mm(wire mesh cable tray/cable tray
Max. Working Load:	500KG(wire mesh cable tray/cable tray	Side Rail Height:	25-20mm(wire mesh cable tray/cable tray

Product Description

Best Selling 0.8 zinc GI wire mesh cable tray for ceiling hot dip galvanized steel cable tray

Product Description

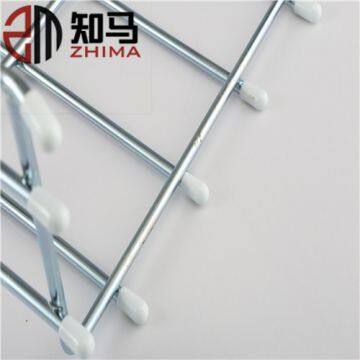

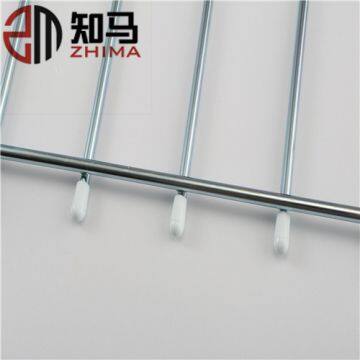

Wire mesh cable tray

Dimensions

Length: 3000mm

Width: 50-1000mm or customized
Height: 50-200mm or customized
Diameter of the steel wire: 3.5mm-6.0mm

Specification of Series products

Model Number	Height	Width	Length
CM50 Series	2" (50mm)	2" (50mm)	118" (3000mm)
		4" (100mm)
		6" (150mm)
		8" (200mm)
		12" (300mm)
		16" (400mm)
		20" (500mm)
		24" (600mm)
CM100 Series	4" (100mm)	4" (100mm)	118" (3000mm)
		6" (150mm)
		8" (200mm)
		12" (300mm)
		16" (400mm)
		20" (500mm)
		24" (600mm)
CM150 Series	6" (150mm)	6" (150mm)	118" (3000mm)
		8" (200mm)
		12" (300mm)
		16" (400mm)
		20" (500mm)
		24" (600mm)
CM200 Series	8" (200mm)	8" (200mm)	118" (3000mm)
		12" (300mm)
		16" (400mm)
		20" (500mm)
		24" (600mm)

Surface Finishes

Material	Surface treatment	Thickness of coating	Application Environment
Carbon Steel Q195-Q235, Stainless steel SS304,306/306L	EZ:Electro zinc plating	≥12μm	Indoor
Carbon Steel Q195-Q235, Stainless steel SS304,306/306L	HDG:Hot dip galvanized	60μm-100μm	Indoor or Outdoor
Carbon Steel Q195-Q235, Pre-galvanized steel, Aluminum, Stainless steel SS304/316/316L	PC:Powder coating after zinc coated(Colored channel)	60μm-100μm	Indoor or corrosive environment
Stainless steel SS304/316/316L	Acid washing orelectrolytic polishing For stainless products	N/A	High corrosion occasions
Carbon Steel Q195-Q235, Stainless steel SS304/316/316L	GI:Pre-galvanized wire	N/A	(Indoor or Outdoor)corrosive environment
Carbon Steel Q195-Q235, Stainless steel SS304/316/316L	GIS:Pre-galvanized wire + zinc spray	Thickness of coating ≥12μm	(Indoor or Outdoor)corrosive environment

Features

• Variety of dimension available.
• Flexible and fast installation.
• Rust proof with the finish ≥12µ.
• Salt spray tests time: ≥48 hours.
• Moderate frequency welding guarded the strong payload.

• Max loading: Depends on the diameter of steel wire and size of wire basket tray (100kg to 400kg).

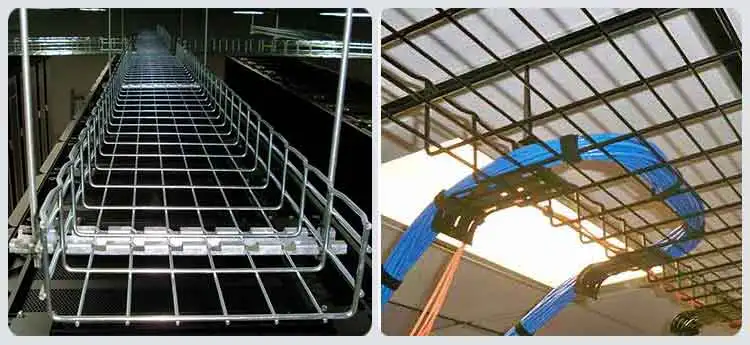

Application

This cable trays shall be supported at normally span 1.5m by bracket (maximum span is 2.5m), wire mesh cable tray systems can be safely used in places where the temperature ranges between -40 to 150 degree without any changes to their characteristics.

Packaging & Delivery

Packaging
1.Double layers bubble film wrapped.

2.Bubble film wrapped double corrugated standard export carton.
3.Pallet available if necessary.

Delivery

Transport means:by air,by sea or railway

Delivery time: 7-15 days after payment

Price term: FOB Tianjin port, Qingdao port, Shanghai port (China)

Our Services

Our service

We have these Primary Competitive Advantages:

• Country of Origin:China mainland

• Guarantee/Warranty:10 years good quality to guarantee.

• Packaging:Standard and Strong Export Packaging.

• Price:High quality with Competitive Ex-Works prices.

• Product Features:High quality,Safety,Reliable.

• Quality Approvals: 100% customer satisfaction.

• Service: on-time and good after-sales service.

• Small Orders Accepted:low MOQ.

Our Certifications and Standards

ISO 9001, CE, UL, RoHS, CCC, IEC, NEMA

Company Profile

ZM has a strong heritage of innovation in cable management solutions. Including wire mesh cable trays, fiber optic cable tray systems, cable trunking, U type steel and ladder type cable tray, perforated cable tray systems, used in the most demanding environments around the globe. Business relationship with customers from more than 10 countries have been established. Our Main Export Markets: South Asia, South America 10%, Southeast Asia, Western Europe, Mid East, Africa.

FAQ

Q1.Why customers choose you?

A1.We have many Competitive Advantages:

Country of Origin in China Mainland, Warranty 10 years, Standard and Strong Export Packaging, Competitive Price, Prompt Delivery, OEM Service, On-time and Good After-salesService, Small Orders Accepted.

Q2. Are you factory or trading company only?

A2.We are manufacturer with an excellent foreign trade team, which providing one-stop shopping service.

Q3.What is the payment term?

A3.FOB, CFR, CIF (Shanghai port,China),EXW

Q4. What is the delivery time?

A4.We have our Quick Ship program that we could ship in 3 days for emergency order.We are manufacturer with normal size products in stocks to ship directly and quickly.

Q5.Is the free sample available?

A5.Yes,we can provide the free sample.

Q6.Can you do OEM and ODM?

A6.Yes we accept OEM and ODM orders.

Q7.How to assure your products with high quality?

A7.Firstly we have professional lab to do these test: safe loading test, galvanized thickness test, salt spray test and electrical continuity tests.

Secondly,we would like to make sample for you before your mass order.
Lastly, we own professional quality control dept. to ensure your products with 100% good quality before shipping.
