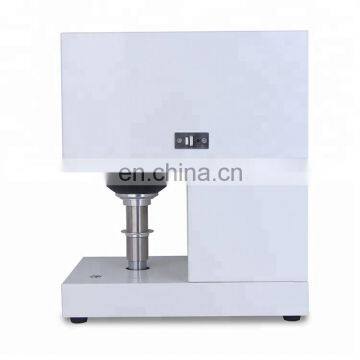

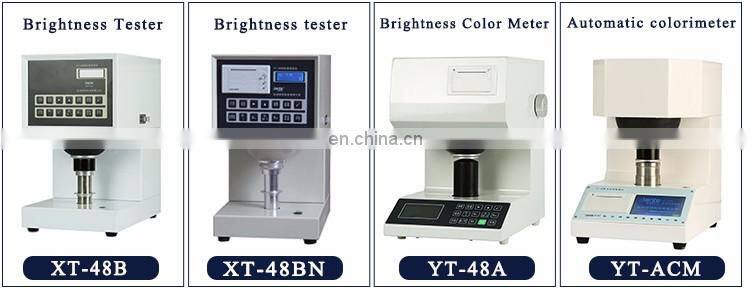

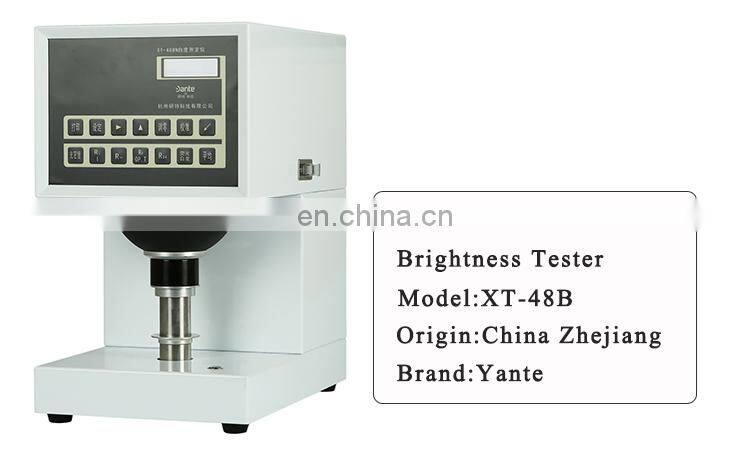

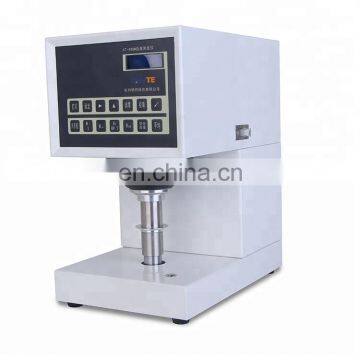

XT-48B High Quality Whiteness Machine for Rice

Name

Brightness Tester

Model

XT-48B

Function

§ The instrument maily used to measure the whiteness,applied in paper, cardboard,textile, painting ,chemical building materials, plastic , cement ,food, salt, ceramics cosmetic etc Like the following:

§ Measure ISO(R457) and fluorescent material’s fluorescent whiteness

§ Measure Light stimulus value Y10

§ Measure opacity op

§ Measure transparency T

§ Measure light scattering coefficient S and optical absorption coefficient A

§ Measure ink absorption value

Key Features

§ Has excellent appearance and compact structure ,and advanced circuit design can

ensure accurate and stable measurement data

§ Simulate D65 illuminator to illuminate

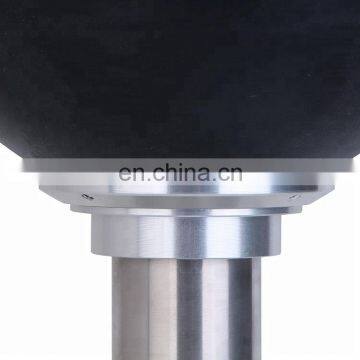

§ Adopted d/o illuminating--geometrical viewing conditions.Diameter of the globe of

diffusion is 150mm and diameter of the testing hole is 30mm.Light absorber is provide to eliminate the effect of mirror reflection

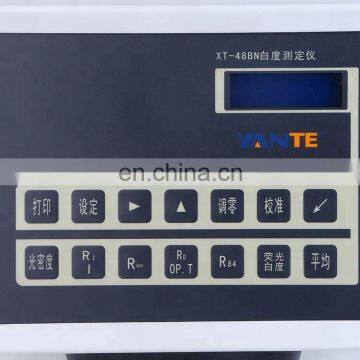

§ Adopted high resolution LCD modules.English display and prompt  steps can show

the results of measurement and statistics. Good human-machine interface makes

the instrument easy to operate

§ Equipped with RS232 interface can communicate with the computer software

§ Has power-off protection, Correct data would not lose

Key

Technical Parameters

Item

Parameter

Unit

Zero Drift

≤0.1%

---

Indicating Drift

≤0.1%

---

Indicating Accuracy

≤0.5%

---

Repetitive Accuracy

≤0.02%

---

Specular Reflectance Accuracy

≤0.1%

---

Sample Size

Test plate diameter should not be less than 30mm while sample

thickness should not exceed 40mm

---

Power Supply

AC(100~240), (50~60)Hz, 0.5A

---

External Dimension

460(L)×260(W)×550(H)

mm
