Auto PCB Etching and Stripping Film Machine

Products: Full automatic spray stripping machine

• PCB cutting machine
• PCB  CNC drilling and milling machine
• Circuit board buffing machine
• Through-hole machine
• Screen printing machine
• Laser printer
• Film laminator
• Spray imaging machine
• Spray etching machine
• Spray stripping machine
• Tin-sinking machine
• Pick and place machine
• Reflow Oven

Full automatic spray stripping machine

• Usage: realizing stripping process of the circuit board processing through high pressure spraying and automatic transmission;
• Control system: high-performance ARM embedded processor + embedded operating system, human-computer interface: big screen color LCD screen + touch screen; In touch screen you can read electronic edition stripping process manual ; In touch screen you can play the video file in stripping process;
• The machine adopts anticorrosive PVC material, with excellent anti acid and alkali performance;

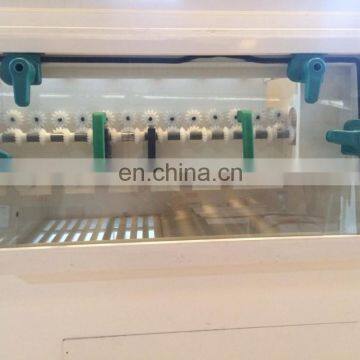

• The roof and the front of the machine both have double completely transparent glass windows, so the whole process can be observed
• With level automatic in board detection function, it can stop automatically in a due time, to make the machine operation more intelligent and automatic

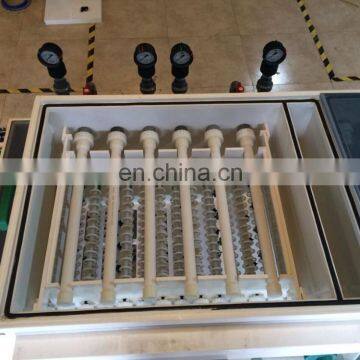

• With up and down spraying pressure testing and adjustment function, it can make some adjustment to up and down spraying pressure according to the technical requirements;
• With liquid level instruction window, you can understand the liquid level of the machine in real-time;
• The machine configures four universal caster wheels for more convenient location adjustment of the equipment;
• With automatic stripping, liquid isolation, automatic water washing, liquid blotting of board surface and other functions, realizing clean and environmental protect production of the PCB;
• The effective work area: double-sided plate of 400 mm width; double-sided plate of unlimited length;
• Working mode: PCB automatically in and out board, automatic high pressure spraying up and down double-sided;
• Work time: 10~240s adjustable;
• Temperature setting: 20~55°C;
• Standard volume: 50L;
• Optional configuration: Ethernet interface, realizing remote diagnosis, monitoring, booking open and close the machine and etc. through the wireless or local area network and the Internet, seamless connection with network management system and software, mating PCB network management software, providing long-term free upgrades service;
• Power supply: AC380V/9KW
• Overall dimension: 1400mm×1040mm×1250mm;
• Net weight: 200KG.

Our stardand package:

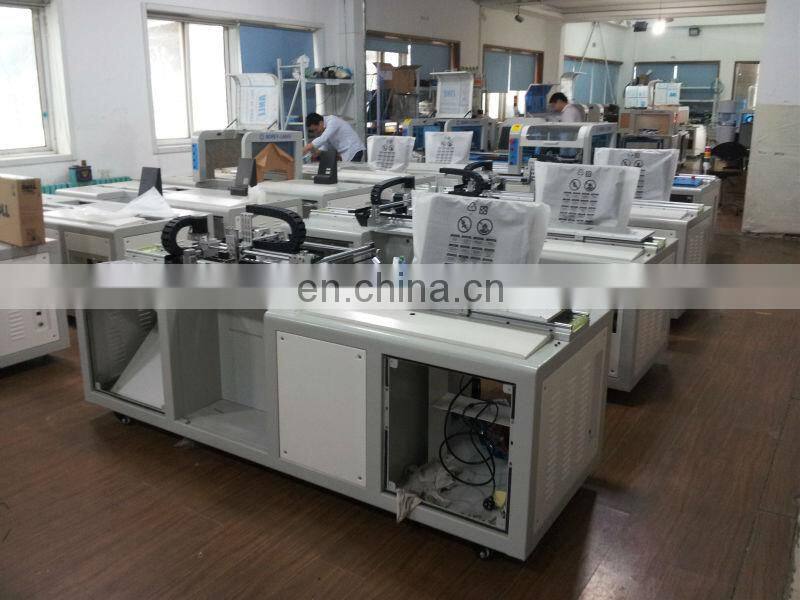

Our factory:

Welcome to contact us for more products!!!!! We provide the on-site and overseas training!!!
