Home > Products > vacuum forming machine > Mini size small plastic ABS vacuum forming machine for advertising logo hobby

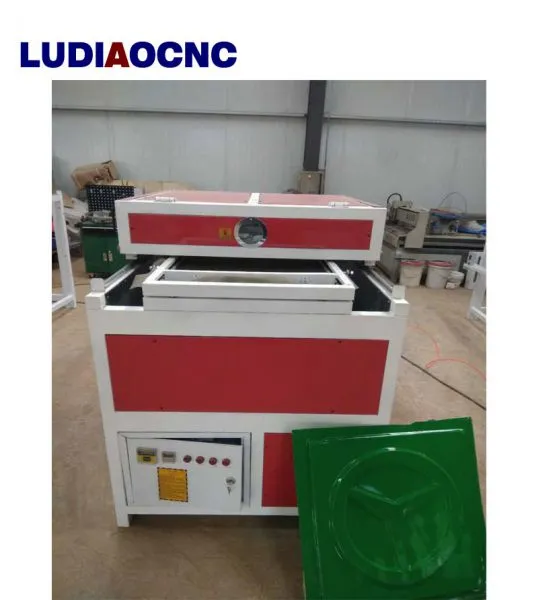

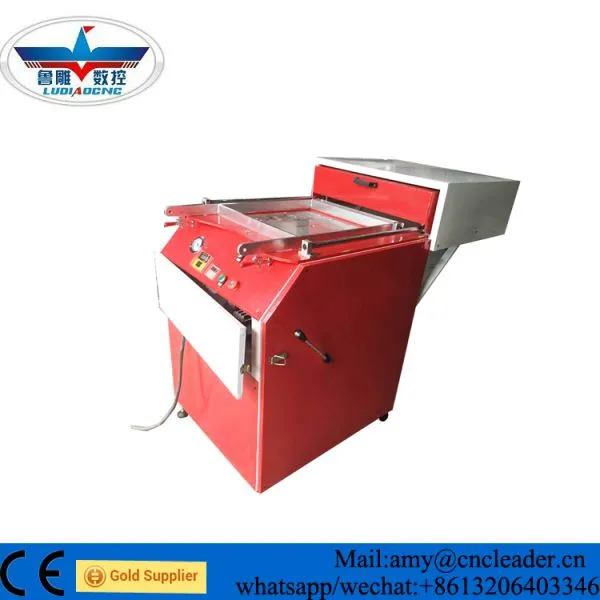

Mini size small plastic ABS vacuum forming machine for advertising logo hobby
- 100 Piece / Pieces per Month
- Qingdao
- T/T Credit Card Other
- 5 days
-
Small area Acrylic thermoforming vacuum forming machine for 3d letter sign logo
-
High speed automatic Linear tool change ATC CNC wood router machine 2030 for wood furniture door cabinet making
-
MDF wood cabinet door making Linear tool change 1325 ATC CNC router machine for wood furniture
-
Automatic three spindles CNC router machine for wood cabinet door making
-
Linear type ATC CNC wood router machine with 9KW spindle&servo motor for wood furniture door cabinet making
-
China experienced factory Automatic center CNC wood router machine for wood door cabinet making
Product Details
| Brand Name: | ludiao | Place of Origin: | China | Model Number: | LD4040 |
| Certification: | CE | Plastic Type: | ABS | After-sales Service Provided: | Engineers available to service machinery overseas |
| Weight: | 80kg | Dimension(L*W*H): | 400*400*200mm | Condition: | New |
| Product Type: | Sheet | Voltage: | 220v | Power(W): | 10kw |
| Type: | Thermoforming Machine | Automatic: | No |
Product Description
Mini size small plastic ABS vacuum forming machine for advertising logo hobby
Specifications:
Working size | 300*300/400*400/500*500/600*600mm |
Max forming depth | 200mm |
Max heating temperature | 300degree |
Air pump | Yes,inside install |
materials | ABS,PVC, ACRYLIC PP KYDEX poly sturene etc |
Max materials thickness | 5mm |
Working method | auto |
voltage | 220V.1P |
Function | Heating suction |
Power | 5.5KW
|
GN | 30KG |
Delivery time | 12days |
warranty | One year |
2. Working Principle:
Carry materials by hand → clamp the materials → move the material into the oven,
after the material to soft →take the material to forming area → the vacuum will auto start→ open the fan to cold→ separate the model and material →take the material out.
3.Excellence of Equipment:
1). Heater: (controlled separately)
A. Heater separately set different temperature according material forming demand to insure product quality. Adjusted the voltage of heater by AC voltage meter which can insures the heater temperature steady and save power.
B. Change the heater units fleetly. And it is economical for maintain because it only need change part units.
2). Controlling
The heater unit separately can short the heating time and economize energy and improve product quality and reduce cost.
3). Adjustable frame
The side size clamping can be adjusted as the working required
