Home > Products > water well drilling rig > FY200 High Power 200 Meter Crawler Air Water Well Drilling Rig Machine For Sale

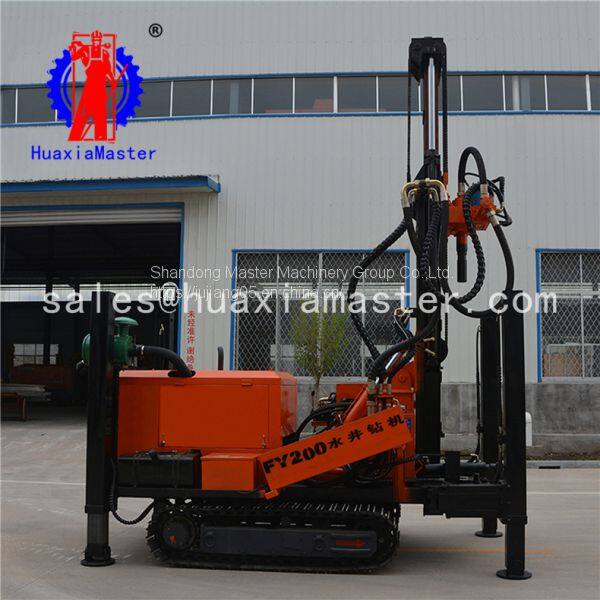

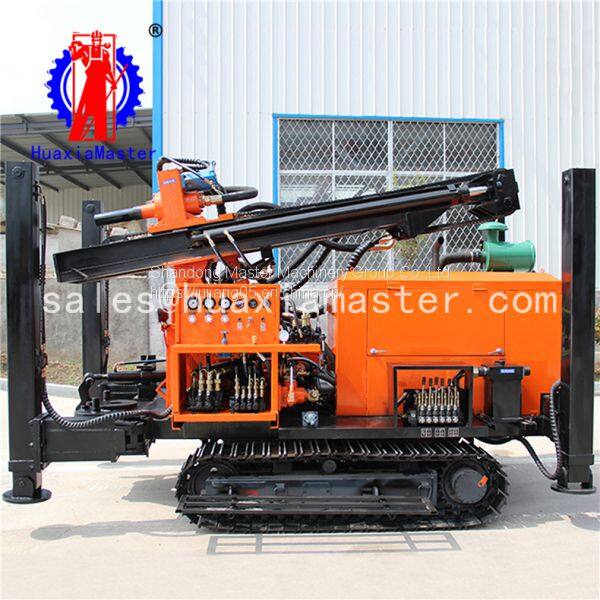

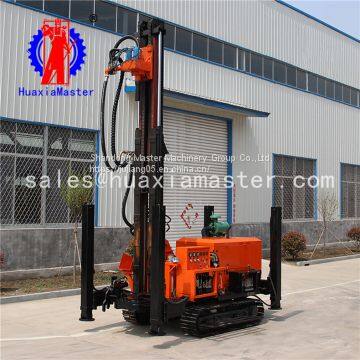

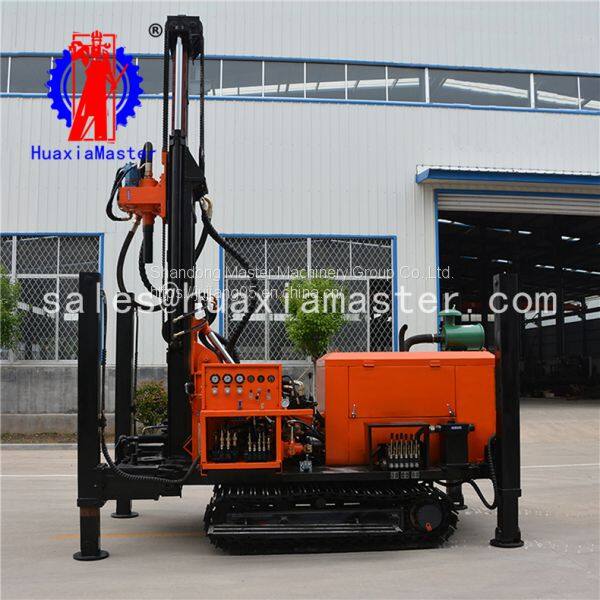

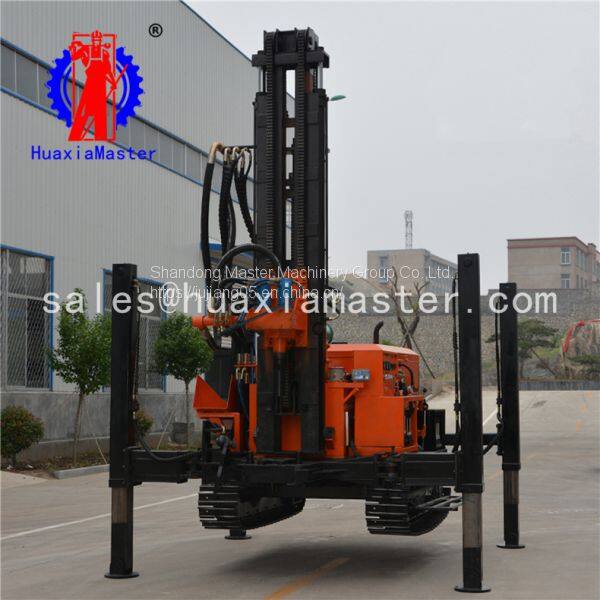

FY200 High Power 200 Meter Crawler Air Water Well Drilling Rig Machine For Sale
- 100 Set / Sets per Month
- Qingdao
- T/T L/C
- 3 days
- FY260 Diesel Engine Crawler Water Well Drilling Rig Rock Core Drilling Machine
- Made in China FY300 crawler type pneumatic drilling rig pneumatic press drilling machine water
- FY400 Crawler Mounted Mine Deep Water Well Drilling Rig With Big Power For Sale
- FY600 crawlerpneumatic drilling rig water well drilling rig pneumatic rock drill
- Huaxia Master KQZ-70D Portable Small Dth Drilling Rig Borehole Drilling Machine
- KQZ-100 pneumatic down-the-hole drilling rig hammer drill with portable weight
Product Details
Brand Name: | Huaxia Master | Place of Origin: | China | Model Number: | FY200 |
Certification: | ISO | After-sales Service Provided: | Engineers available to service machinery overseas | Weight: | drilling rig |
Dimension(L*W*H): | 3800*1600*2450mm | Voltage: | Diesel | Condition: | New |
Power(W): | 65kw | CNC or Not: | CNC | Drilling Speed: | water well drilling rig |
Product Description
1. The applications of FY200 crawler pneumatic water well drilling rig
· civil engineering drilling
· geothermal drilling
· drilling with large diameter
· deep drilling footage
· fast, flexible and efficient.
2.The specifications of FY200 crawler pneumatic water well drilling rig
Model | FY200 | |
Gross weight | t | 4.6 |
Dimension | mm | 3800*1600*2450 |
Aperture | mm | 140-325 |
Drilling depth | m | 200 |
Feed stroke | mm | 3000 |
Travel speed | km/h | 2.5 |
Grade ability | max. | 30° |
Rising height from ground | mm | 250 |
Wind pressure | mpa | 1.7-3.0 |
Air consumption | m³/min | 17-35 |
Engine power | kw | 65 |
Rotary speed | rpm | 50-70 |
Rotation torque | n.m | 5000-6500 |
