Scallion harvester/harvesting machine for sale
- 1000 Set / Sets per Month
- qingdao shanghai ningbo
- T/T Credit Card
- Scallion Green onion digger harvester machine
- New designed tractor mounted scallion harvester /ginger harvesting machine for sale
- Price of green onion and ginger harvesting machine for good quality
- 1.5kw, 4 paddles , paddle wheel aerator, shrimp fish ponds aerator for sale
- Scallion Green onion ginger harvester wholesale price
- Tractor mounted scallion harvester /ginger harvesting machine for sale
Product Details
Brand Name: | MONA | Place of Origin: | Henan, China | Model Number: | MN-7 |
After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | One Year | Weight: | 110kg |
Certificate: | CE | Application: | Agriculture | ||
Condition: | New |
Product Description

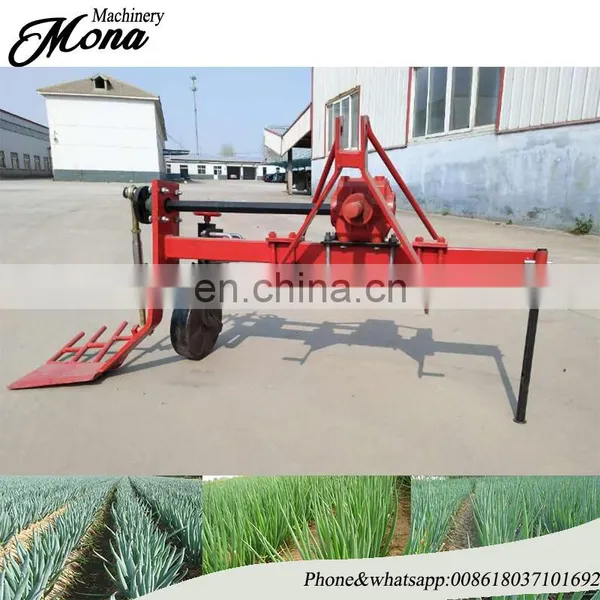

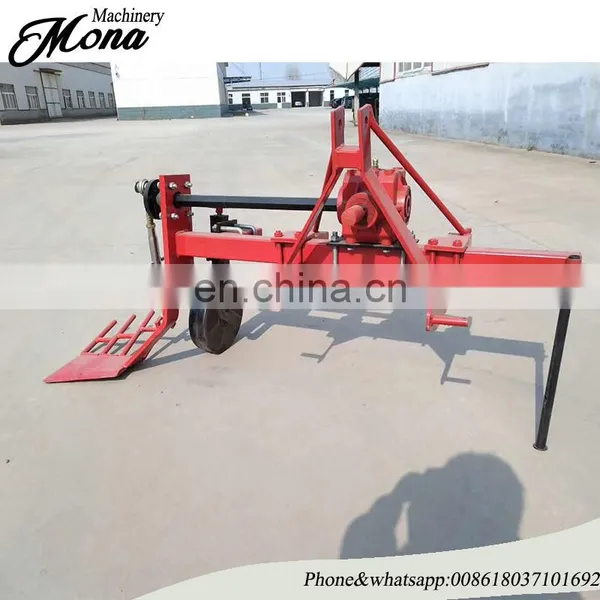

Onion Harvester Introduction:
Onion harvesting machine is the world's more advanced harvest green onions, ginger automatic agricultural equipment, is my company to absorb advanced technology at home and abroad, research and development of a new generation of ginger harvesting equipment. Applicable to greenhouse ginger, fresh ginger, fresh onions, winter onions harvest, than the traditional artificial harvest with automatic soil, save trouble, effort, save the advantages.
Including a walking machine, a harvester assembly mounted on the side of the walking machine, a harvester assembly including a harvesting frame connected to the chassis through a hinge shaft and an elevating mechanism, a digging shovel, a front pendulum shaft, a rocking link, , The soil connecting rod was U-shaped, the front pendulum shaft through the bearing installed in the middle of the loose link, parallel to the two loose rods fixed fixed on the top of the loose link; loose side of the rod through the crank The rod mechanism is connected with the loom motor drive; the soil pendulum is mounted on the rear end of the harvesting frame; the clamping conveyor is arranged above the loose pole and the soil pendulum, and the clamping conveyor is fixed by the support bar Connected to the harvest rack. The onion harvesting machine can replace the artificial excavation, loose soil, pull out, shaking soil, stacking and other work, a significant reduction in labor intensity, improve labor efficiency.
Onion Harvester Features:
The machine adopts the plow separation, vibration shaking soil, auxiliary pouring, orderly laying and other advanced technology. With supporting power wide, shaking soil clean, high efficiency, laying neat, save manpower and so on.
Description
The machine uses plow separation, vibration shaking soil, auxiliary pouring, orderly laying and other advanced technology.It's easy and convient to operate for users.And
it has a high efficiency on green onion harvesting.
Parameter:
1, Dimensions: 1100 × 1660 × 1050mm
2, the machine weight: 110kg
3, supporting the form: after three hanging
4 :, supporting power: 25 horsepower or more
5, the work efficiency: 1-2 acres / hour
6: Number of rows of harvest: 1 line
7, the working depth: 200-300mm
