Home > Products > Section bending machine > Channel Steel Bending Machine Hydraulic Beam Bending Machine

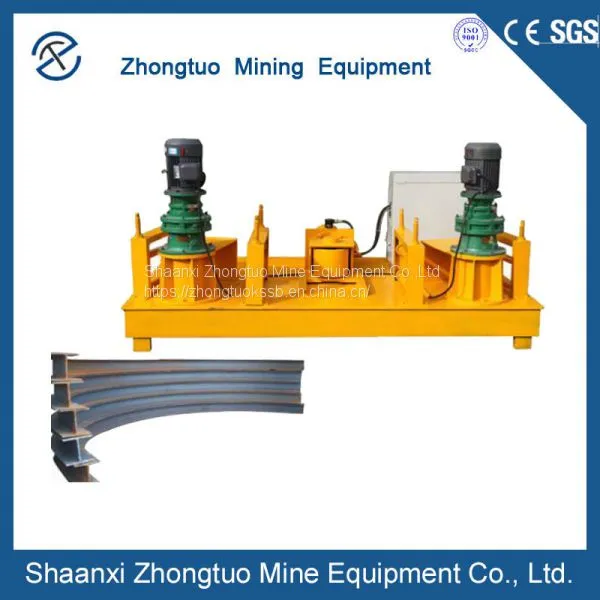

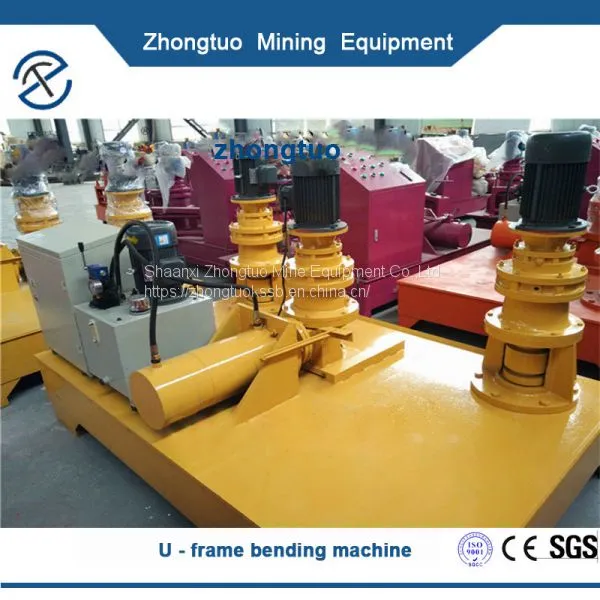

Channel Steel Bending Machine Hydraulic Beam Bending Machine
- 100 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Other
- 5 days
You May Like
Product Details
| Brand Name | Zhongtuo | Place of Origin | China | |
| Model Number | WGJ-250 | After-sales Service Provided | No overseas service provided | |
| Warranty | 1 year | Weight | 2800kg | |
| Dimension(L*W*H) | 2500*1600*1500 | Certification | CE | |
| Application | H/I-beam Cold bending | Condition | New |
Product Description
Channel Steel Bending Machine Hydraulic Beam Bending Machine Feature:
H-beam cold bending machine is mainly used for arching, variable diameter and fixed angle bending of steels such as I-beam, miner steel, U-shaped steel, C-shaped steel, angle steel, channel steel, rail, square steel and steel pipe. I-beam bending machine is mainly used in tunnels, subways, hydropower stations, underground caverns and other I-beams, and channel steel is bent. The CNC I-beam cold bending machine adopts digital display encoder programming to make the hydraulic control system accurately positioned. The curved steel is automatically formed at one time, with high efficiency and convenient operation. I-beam bending machine is widely used in the construction of tunnels, subways, hydropower stations, underground caverns, etc. It is an ideal equipment for the manufacture of steel arches.
H-beam bending machine parameter:
Hydraulic system pressure | 16Mpa |
Minimum bending radius | 2m |
Total power | 11.5kw |
Cylinder propulsion speed | 1-13mm/s |
Active wheel speed | 7r/min |
size | 2500X1500X1200mm |
Total weight | 2800kg |
