Wire guide tubes nozzles wire coil nozzle for coil winding machine

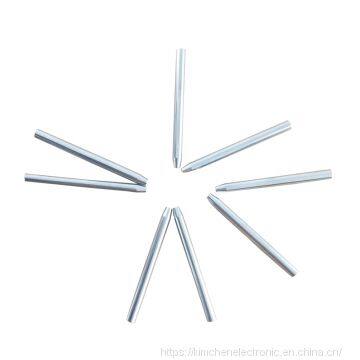

KIMCHEN Tungsten Carbide Nozzle photos for your reference.

More details,pls send the inquiry to got it,thanks.

Working Limited:d1≥0.10mm D1≥0.30mm

Please choice the sizes of tungsten carbide nozzle so that we are able to send the good prices to you.

If you have details requirements for the nozzle, you also can send to us.we will according to your request to provide the suitable solution to you.

About the nozzles applications:

It has been widely used in various types of CNC automatic winding machine.

The nozzle is installed at the end of the mechanical hand of the winding machine, the enameled

wire will go through it and do the winding job under the guidance of its processing.

It is not only the indispensable component of the winding machine, but also the key components

which are used for ensure the quality of processed products. The main function of the

nozzle is the protection of the enameled wire insulation layer.

More design for reference:

We also accept OEM Order if the clients have details requirements.

Please kindly send the drawing picture or sample to us.

After, the prices will quote to clients as soon as possible.

About the Production Process:

KIM CHEN INDUSTRY INTL LIMITED was founded in 2001, the factory is located in Dongguan city. Guangdong province.

We specialized in the manufacture and RD of the component which is used in coil of wire and tension systems. textile machinery and electrical industry precision ceramics. Such as: coil winding nozzle, coil winding tensioner, tension meter, ceramic eyelets, ceramic coating pulley. etc.

We produce high quality coil winding nozzle which include tungsten carbide nozzle, ruby nozzle and ceramic nozzle. We adopt the excellent raw material and technology to ensure best quality which exceed our customer's expection. Our main customer Mitsubishi, ABB, SVM, YKK. etc, We expect long term relationship with you!

Our Factory Advantages:

1. Competitive prices

2. Good after-sale services

3. Fast delivery

4. High quality control

5. Customized size, design

We also provide other relative precision parts

For more product, pls see the photos as follow, if you need, pls contact us.

Different Tensioner for customers reference .

Pls kindly send your request to us so that we are able to recommend the suitable models to you.

Frequently Asked Question:

Q1. How long will I get a quotation?

The quotation will send to you within the 24h when we got your inquiry.

Q2. Can I get a sample?

Samples are available upon customers request .

Q3. Can you do the design for us?

 Yes, our factory can accept the OEM orders.

According to your drawing or sample to do it.

Q4. How long can I expect to get the sample and  mass quantities?

Normally it takes 7days to produce the sample. Generally, 7-15 days for mass order. If urgent ,delivery time may be pushed by negotiation.

Q5. How about the delivery method?

The goods always sent by DHL,UPS,FEDEX, EMS by airplane or sea.

We also can send the goods to your warehouse if you have warehouse in China.

Q6.What's your terms of payment?

T/T ,50%deposit, 50%balance. Other payment methods such as Paypal, West Union, L/C are negotiable.

Q7.What's your main product?

Our company main products including various nozzle,coil of wire,tensioner etc.

Q8.What's the application of your products?

Various products have been widely used in various type of electronics,machinery,textile and other equipment.
