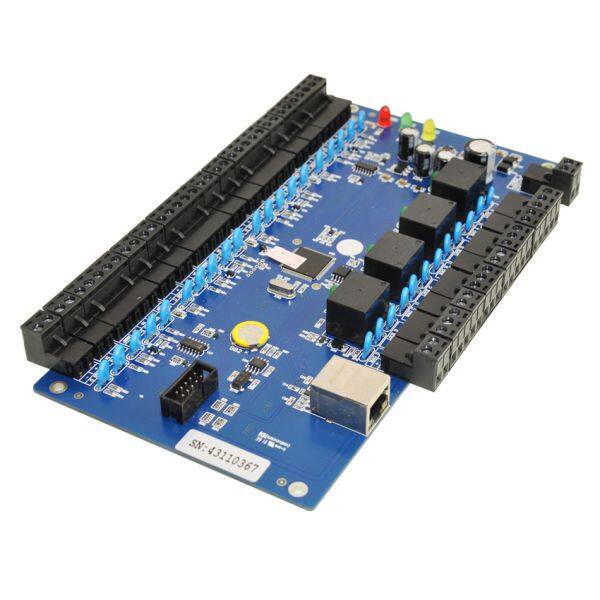

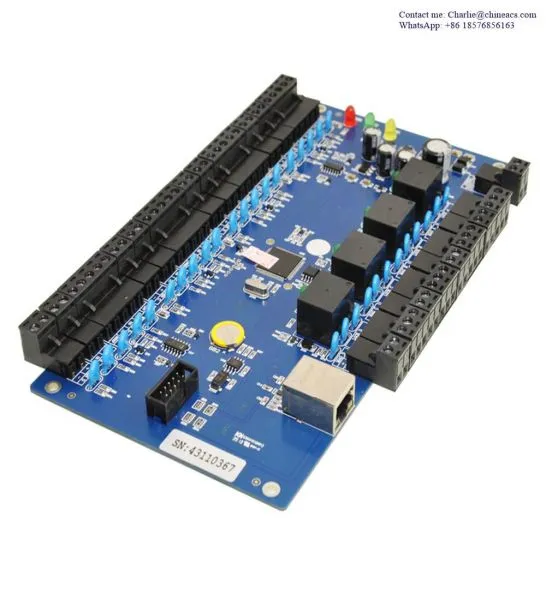

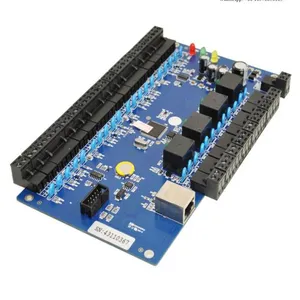

Four Door Two Way Access Control Controller Panel Kits

FOB Price

USD $68 - $70 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ShineACS		Place of Origin	China
Model Number	SA-B04T

Advantage:

1. Automatically search for and install controller

2. Remote open door,full card to open door

3. Running stable monitoring(voltage input,watch dog,operating days)

4. Time frame management

5. Limit the number of people inside door and region

6. Fire protection alarm

7. Access authentication methods setting

8. Anti-passback, interlock function

9. Read card inside and outside to open door

10. Video capture

Model:	SA-B04T
Quantity of readers	2/4/8
Door lock relay	1/2/4
Door controlled	1/2/4
Input voltage	AC 220V
Output voltage	DC 12.5V 1.5A
Working voltage	DC12V
Operating temperature：	-25℃ to 70℃
Operating humidity	10%-90%RH, no-condensation
Power consumption of circuit board：	≤100mA
Data storage	26000 pieces of registration cards, 80000 pieces of reading records, 20000 pieces of records of door contact, button and alarm
Power-off protection measure	High speed memory, can keep 8 years after power-off
Interface protocol	International standard wiegand 26 bit, 34 bit communication protocol (software can be set, the default for 26 bit)
Distance from reader to controller	Less than 100m
Door lock control	Each group relay using NC, COM, NO dry node control output, the maximum control voltage 250 v, 6 a maximum control current
Communication protocol	TCP/IP
Communication rate	TCP/IP 10M/100M Self-adaption
Max communication distance	TCP/IP Communication depends on network coverage
Max networking	TCP/IP Communication unlimited
Access control panel size	159131MM/159131MM/216x131MM
Power supply size	24020061MM
